Summary of Contents for Microgem MG2000

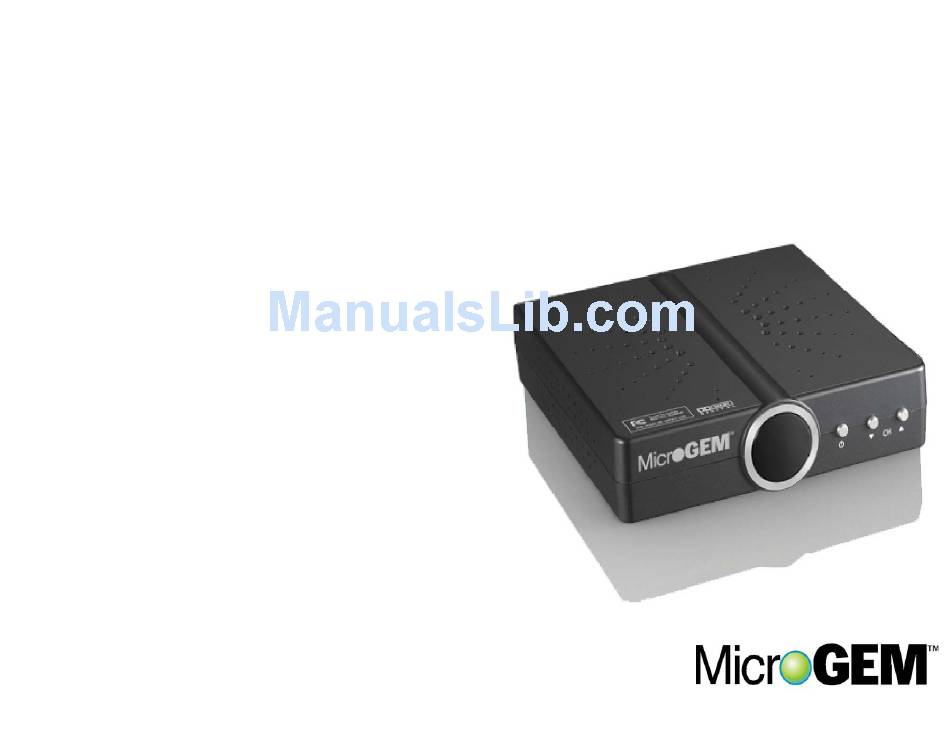

- Page 1 Digital to Analog Converter Box MG2000 Operation Guide v1.0 MicroGEM Corporation...
- Page 2 Manual text, photos & layout by M.J.N. Limited Warranty and Service In order to register your MicroGEM product for warranty, please complete and submit the warranty registration information. The product enclosed herein is warranted to be free of manufacturing defects and workmanship for a period of one year from the date of purchase.
- Page 3 Digital Closed Caption Language Timer Thank you for purchasing the MG2000 Converter Box. This unit will enable your television set to receive digital broadcasts even though your current television is not equipped to receive these broadcasts. The MG2000 Converter Box receives and translates digital broadcasts into analog signals that are compatible with any analog television.
-
Page 4: Hardware Specifications
MG2000 Operating Manual I. Specifi cations Hardware Specifi cations • CPU: Zoran, ZR39740 • PCB size:110mm x 100 mm • PCB layer: 2 layers Functional Ports –NTIA compliant • ATSC tuner • RF out • NTSC modulated out – channel (3 or 4) selectable by remote control •... - Page 5 MG2000 Operating Manual 2. Closed Caption Confi guring the Closed Caption feature a. Access the on-screen menu Using the remote control, select “CLOSED CAPTION” by using the direction buttons (volume & channel) and pressing the “OK” button to select the menu item.
- Page 6 MG2000 Operating Manual II. Remote Control Power Menu Access Channel Control & Directional Arrows Navigating the ON SCREEN MENU using the Remote Control * Use the volume and channel controls as the directional controls in the ON SCREEN MENU. Use the “OK” button to select the menu item you wish to access.
- Page 7 Connect video Connecting video using Composite Video (RCA-type) cable Locate the CVBS Out ports on the back of the MG2000 Converter Box. Plug the Composite Video (RCA-type) cable into the CVBS out port, and connect opposite end of the cable into the “IN” port on your television set.
- Page 8 MG2000 Operating Manual * On the fi rst use of this product, you will need to program the digital channels available. On the fi rst power-up of this product, the “On Screen Display” or menu, will display. You can access this menu anytime by pushing the “MENU”...
