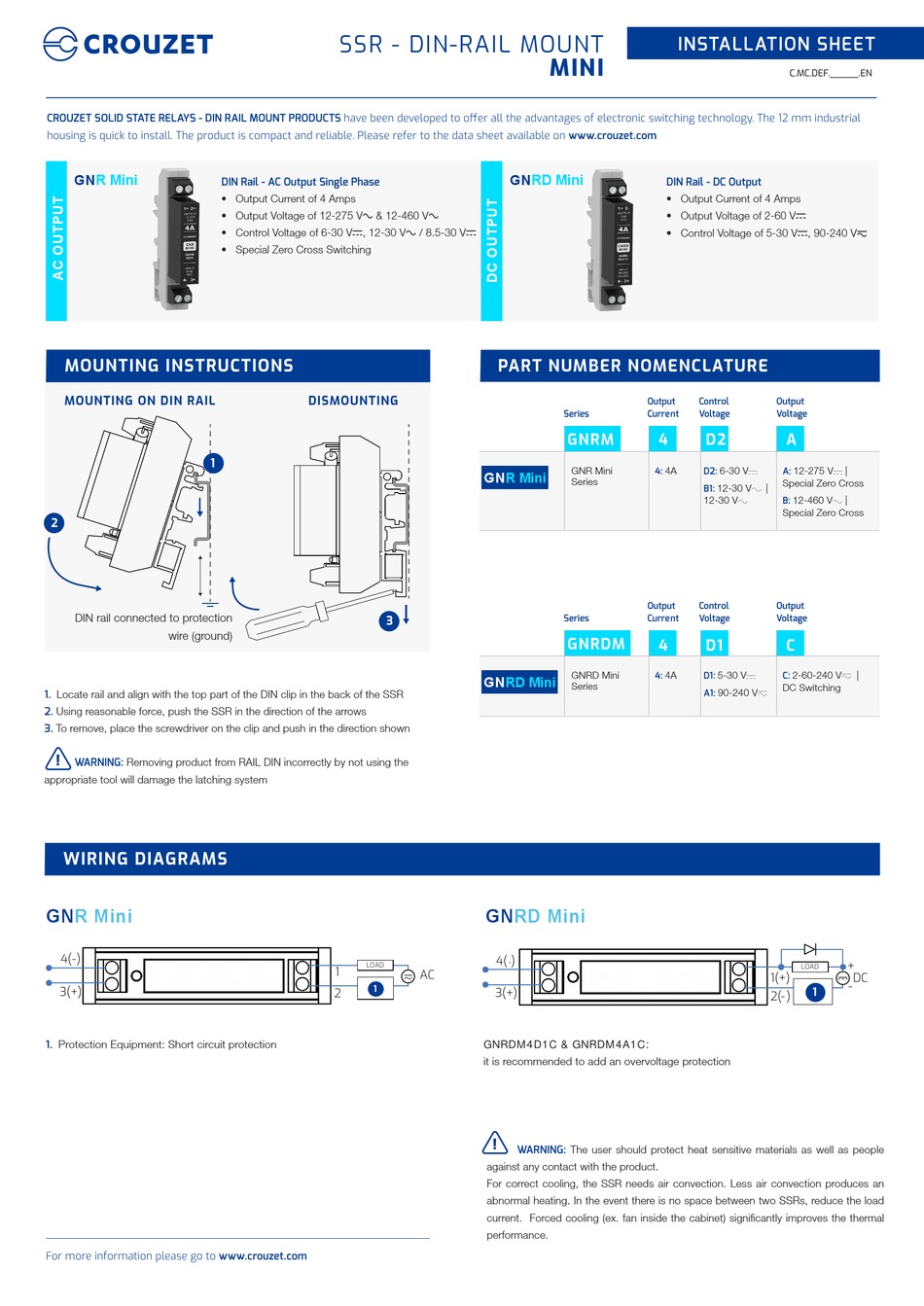

CROUZET SOLID STATE RELAYS - DIN RAIL MOUNT PRODUCTS have been developed to offer all the advantages of electronic switching technology. The 12 mm industrial
housing is quick to install. The product is compact and reliable. Please refer to the data sheet available on www.crouzet.com
GN
R Mini
MOUNTING INSTRUCTIONS
MOUNTING ON DIN RAIL
1
2
DIN rail connected to protection
wire (ground)
1.
Locate rail and align with the top part of the DIN clip in the back of the SSR
2.
Using reasonable force, push the SSR in the direction of the arrows
3.
To remove, place the screwdriver on the clip and push in the direction shown
!
WARNING:
Removing product from RAIL DIN incorrectly by not using the
appropriate tool will damage the latching system
WIRING DIAGRAMS
GNR Mini
4(-)
3(+)
1.
Protection Equipment: Short circuit protection
For more information please go to www.crouzet.com
SSR - DIN-RAIL MOUNT
DIN Rail - AC Output Single Phase
• Output Current of 4 Amps
• Output Voltage of 12-275 Va & 12-460 Va
• Control Voltage of 6-30 Vc, 12-30 Va / 8.5-30 Vc
• Special Zero Cross Switching
DISMOUNTING
3
LOAD
1
1
2
MINI
GN
RD Mini
PART NUMBER NOMENCLATURE
Series
GNRM
GNR Mini
GNR Mini
Series
Series
GNRDM
GNRD Mini
GNRD Mini
Series
GNRD Mini
4(
)
-
AC
3(+)
GNRDM4D1C & GNRDM4A1C:
it is recommended to add an overvoltage protection
!
WARNING:
The user should protect heat sensitive materials as well as people
against any contact with the product.
For correct cooling, the SSR needs air convection. Less air convection produces an
abnormal heating. In the event there is no space between two SSRs, reduce the load
current. Forced cooling (ex. fan inside the cabinet) significantly improves the thermal
performance.
INSTALLATION SHEET
C.MC.DEF._____.EN
DIN Rail - DC Output
• Output Current of 4 Amps
• Output Voltage of 2-60 Vc
• Control Voltage of 5-30 Vc, 90-240 Vz
Output
Control
Output
Current
Voltage
Voltage
4
D2
A
4:
4A
D2:
6-30 V
A:
12-275 V
c
Special Zero Cross
12-30 V
|
B1:
a
12-30 V
B:
12-460 V
a
Special Zero Cross
Output
Control
Output
Current
Voltage
Voltage
4
D1
C
4A
5-30 V
2-60-240 V
4:
D1:
c
C:
DC Switching
A1:
90-240 V
z
LOAD
1(+)
1
2(- )
|
c
|
a
|
z
+
DC
-
