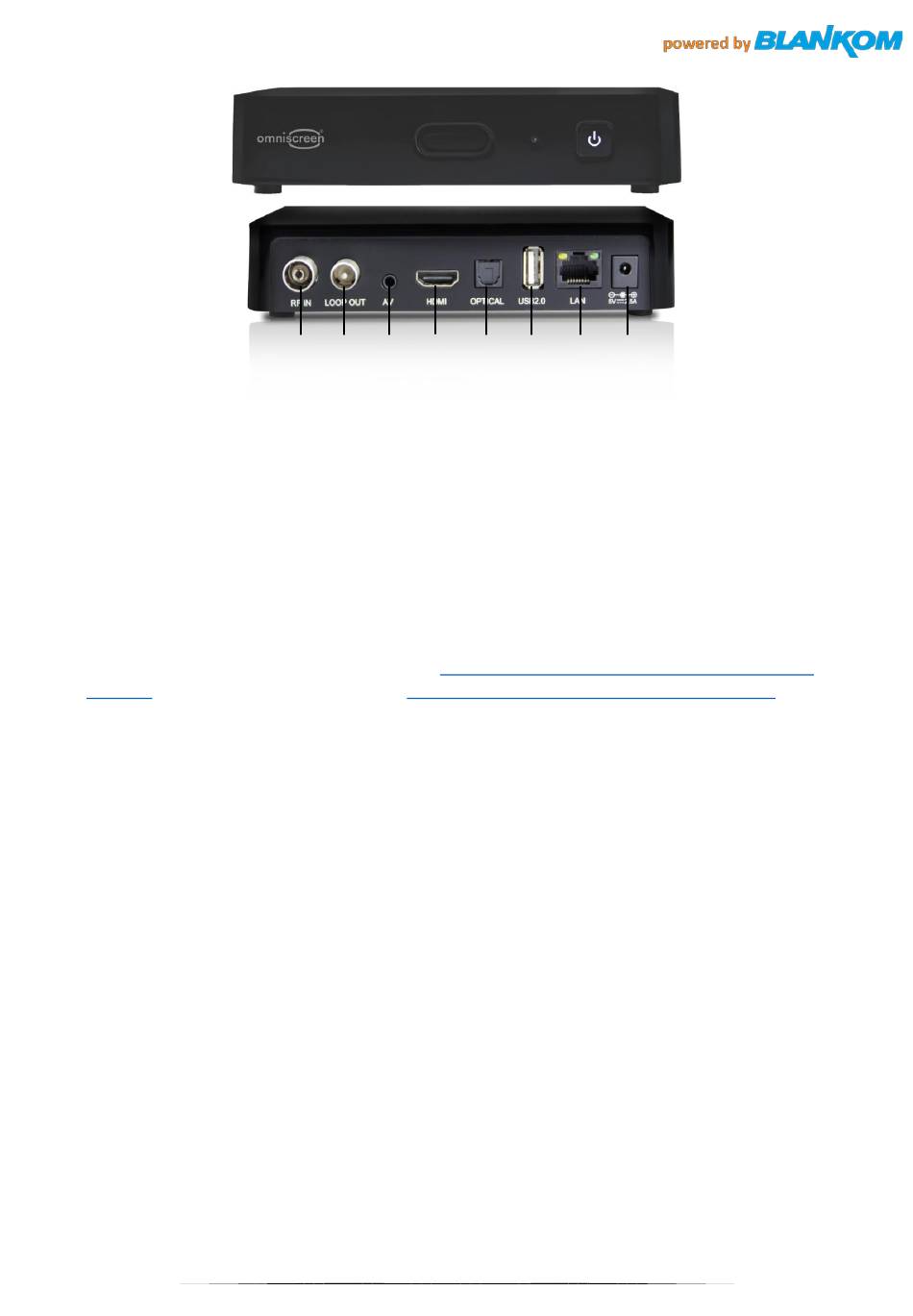

Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router
Because this box has been stripped down for easy handling, you should know some essential facts:
-
See also : IPTV-Multicast-OMM15_Manual.1.4.pdf
-
Factory defaults: It must be connected to the Internet to get the basic OS installed online
o After the installing of the basic OS it needs to get a script from a connected Linux
Device running to prepare it for the Digital Signage / IPTV Multicast streaming's
o The STB displays Time and date information on the main screen so it needs a NTP
connection either getting these from the router or from the internet.
o So it is almost helpful to have a tiny router installed which serves the boxes with
small internet connection and also handles their DHCP.-IP addresses IPv4
We now like to give you a short introduction to setup a DHCP-Router for these boxes: Using a
raspberry PI3/4 and its original Raspberry Pi OS:
systems/
and by acting under this tutorial:
We assume that you are familiar with setting up a RPI: Download, use RPImager and flash it. Than
stay at the µSDCard by your windows/Linux-PC and add following to the USB-Boot-Folder:
Things You Need:
In order to configure your Raspberry Pi as a wired router, you need the following things:
1) A Raspberry Pi single board computer
2) A Raspberry Pi power adapter or a 2.1A USB power bank
3) A SD card reader for flashing Raspbian OS onto the microSD card.
4) A microSD card
5) A network switch (10/100/1000 or 100/1000 Autosensing)
6) Ethernet cables
7) A Wi-Fi network to connect the Raspberry Pi to
8) A computer/laptop for configuring the Raspberry Pi
In this example case, we have an external WIFI-USP-Stick connected to the PI and a WIFI-in Reach.
We are using for this tutorial an older RPI2-Model.
The Network-switches can be set to the static IP address ranges and been managed by a connected
PC in the same static or dynamic range at the switches. The Raspi can be handled by a laptop in the
same WIFI - See picture:
https://www.raspberrypi.com/software/operating-
https://linuxhint.com/raspberry_pi_wired_router/
1
IPTV-dhcp-OMM15_Manual.1.4.docx

Advertisement

loading
Need help?

Need help?

Do you have a question about the M15 OmniscreenTV IPTV STB and is the answer not in the manual?

Questions and answers

Related Manuals for Blankom M15 OmniscreenTV IPTV STB

Summary of Contents for Blankom M15 OmniscreenTV IPTV STB

  • Page 1 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Because this box has been stripped down for easy handling, you should know some essential facts: See also : IPTV-Multicast-OMM15_Manual.1.4.pdf Factory defaults: It must be connected to the Internet to get the basic OS installed online o After the installing of the basic OS it needs to get a script from a connected Linux Device running to prepare it for the Digital Signage / IPTV Multicast streaming’s...
  • Page 2 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Flashing the OS: IPTV-dhcp-OMM15_Manual.1.4.docx...
  • Page 3 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Flashing: Re-Connect the USB-penkey: Now, you should see a boot drive on your computer. Navigate into it. Do not format the 2 linux partition (not visible under Windows)!!! Just go to the boot-partition and insert 2 files (use a notepad++ linux capable text editor –...
  • Page 4 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Create a new file wpa_supplicant.conf and type in the following lines to it: ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev update_config=1 country=US network={ ssid="YOUR_WIFI_SSID" psk="YOUR_WIFI_PASSWORD" scan_ssid=1 priority=1 Change US to your land, DE in our case and here we use the I-Netrouter WIFI access: WIFI-PW= 21166445981716195140 , SSID = IRENIS2,4 This file will be copied to the /etc/wpa…...
  • Page 5 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Select the WIFI access and let run the updates and check IP: As you can see, the Ethernet port is not configured yet. If you are running the RPI as headless device w/o a connected HDMI-Monitor, Check your router what IP address has been delivered to your RPI…...

  • Page 6: Configuring The Network

    Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Terminal access by SSH with Putty or Kitty: Now, open the cmdline.txt file and add ipv6.disable=1 at the end of the line to disable IPv6: cd /boot sudo nano cmdline.txt: This may be done before the SDcard is inserted into the RPI.
  • Page 7 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Now, create a network configuration file for eth0 network interface as follows: $ sudo nano /etc/network/interfaces.d/eth0 Now, type in the following lines and save the configuration file by pressing <Ctrl> + X followed by Y and <Enter>.
  • Page 8 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Once your Raspberry Pi starts, check the network configuration of wlan0 network interface as follows: $ ip addr show wlan0 wlan0 should get an IP address via DHCP But it can be a different than before...

  • Page 9: Configuring Dhcp Server

    Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Configuring DHCP Server: Now, update the APT package repository cache with the following command: $ sudo apt update Install ISC DHCP server with the following command: $ sudo apt install isc-dhcp-server Off course Y IPTV-dhcp-OMM15_Manual.1.4.docx...
  • Page 10 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Now, open the dhcpd.conf file as follows: $ sudo nano /etc/dhcp/dhcpd.conf Set the domain-name and domain-name-servers as follows. Or any other DNS in your region which is reliable… We increase the lease time to 90 hours instead of 10 (600 sec).
  • Page 11 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Scroll down a little bit and uncomment authoritative; line: Than add these lines somewhere in the file: subnet 192.168.1.0 netmask 255.255.255.0 { range 192.168.1.50 192.168.1.240; option routers 192.168.1.1; option subnet-mask 255.255.255.0;...
  • Page 12 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Once your Raspberry Pi starts, the isc-dhcp-server service should be active (running). $ sudo systemctl status isc-dhcp-server Configuring the Firewall and Enable Packet Forwarding: Now, install firewalld (daemon) as follows: $ sudo apt install firewalld Press Y and then press <Enter>...
  • Page 13 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router The firewalld service should be active (running) by default. Enter for checking: $ sudo systemctl status firewalld Now, allow DHCP traffic through the firewall with the following command: $ sudo firewall-cmd --add-service=dhcp --permanent...
  • Page 14 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router With tail –f /var/log/syslog you’ll see the DHCP actions with every connected box. Now we can prepare the Raspi for the FTP- channellist/group upload to the boxes and the initial IPTV setup of sending files, patching the Omniscreen...
  • Page 15 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Via the RPI to manage the STB: You need to install an FTP client or use the midnight commander: After the STB has been IPTV-Patched, you can connect to its IP by FTP using After the IPTV patch the FTP access does not need a user/password combination and is open.
  • Page 16 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Of course your PC (or the RASPI itself) with Putty installed (ssh comandline will also work) can establish the remote connection to the IPTV-STB: Usefull ssh commands with PHP in the box: •...
  • Page 17 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router … There are a lot more …. For the specialistst who knows php… One essential file for the STB-Configuration is: hybridset.txt and is linked /stored in an extra flash nonvolatile partition: cd /opt/data/settings/tv2next/: This file hybridset.txt is transferred with the IPTV patch from Omniscreen to this IPTV...
  • Page 18 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router #key.portal=http://localhost/nanoapps/branded/brandeddashboard/index.html key.portal=http://localhost/developer/index.html key.info=http:// [apps] # the app which will be activated when the box startup. FirstRunApp=portalstack # the app which will be run # for example: if we define RunPortal=portalstack, it means there is a portalstack directory under rootfs/root, a portalstack.sh file under the portalstack directory,...
  • Page 19 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router [saas] ## used for nano apps ---Software as a service??? #saas.lcm.url=https://m15.lifecycleabox42app.com/provisioning/ #saas.lcm.secret=abox42-m15prod-89be579233bba59c5324afed7d677331 #saas.signature.url=https://m15.signatureabox42app.com/api2/ #saas.signature.secret=abox42-m15prod-7a4aa6f2d119b38e10db5b8acb6fdc069 # saas.cm.url=https://m15.customersabox42app.com/api/ # saas.cm.secret=m15prod_a5850a50ff73c21c305247b59c326579 # saas.tvs.url=https://m15.tvservicesabox42app.com/api/ # saas.tvs.secret=m15prod_caf3fb45cb3a487a611e966d6d90c28b # saas.reporting.url=https://m15.collectorabox42app.com/inbox [Device] # "none" is also valid value here productname=Omniscreen OMM15 marketing_version=1.10...
  • Page 20 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router ## 2: go to index.html or index.php or deploy.php in /opt/data/settings/nano- htdocs/developer if valid on startup. check_starturl=0 ## only valid when branded app url works. ## 0: default value, this parameter does not take effect and will be ignored.
  • Page 21 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router acamar.net,*.connectedvod.com,*.redbull.tv,*.kabeleins.de,*.kinderkino.de,82.79.128 .163:8080,websiteapp.download.arte.tv,digitalbloom.dev.ping247.de,*.hatcolorsoft.co m,*.kicker.de,*.nacamar.net,*.putpat.tv,*.onlinetvrecorder.com,*.connept.tv,4t1.ch, *.assense.com,*.tv-id.net,*.grid-service.net,*.sportdigital.services.nrmmh.tv,*.n- tv.de,*.sport1.de,*.nexxclients.com,*.international- tv.de,*.radiotime.com,*.kinowelttv.c.nmdn.net,*.tvbuddy.com,*.youtube.com,*.motorsp ort- total.com,*.nowtilus.tv,*.hollystar.ch,*.jaast.com,*.autozine.de,*.freshmilk.tv,*.c ellmp.de,*.swissinfo.ch,*.swisstxt.ch ## used to set in which hosts script inject is allowed. scriptInjectedHosts=localhost,127.0.0.1 [proxy] #proxy.server=192.168.2.100 #proxy.port=8888 #proxy.username=usr #proxy.password=pwd #proxy.excludedhosts=localhost,127.0.0.1 [vm] #add verimatrix server IP and port here #vm.server=74.62.179.31...
  • Page 22 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router After transfer they are located under a folder in the pi-home: We need to check the execution bit of the script: IPTV-dhcp-OMM15_Manual.1.4.docx...
  • Page 23 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router No it isn’t !!! so we need to make it executable: sudo chmod 755 abox_42_iptv_setup.sh Now we can use that to change values in an already DHCP-connected STB: Example: we change the DNS in the hybridset.txt to google: [network] #network.prefdns=208.67.222.222...
  • Page 24 Quickstart M15 OmniscreenTV IPTV STB -> Setup a DHCP-Router Hybridset.txt will be overwritten as well as the channels – and group.json – files which contains the channel-list and groups for the user: That worked: DNS changed to 9.9.9.9 … ping it ;-) Ntp time to time.windows.com...
