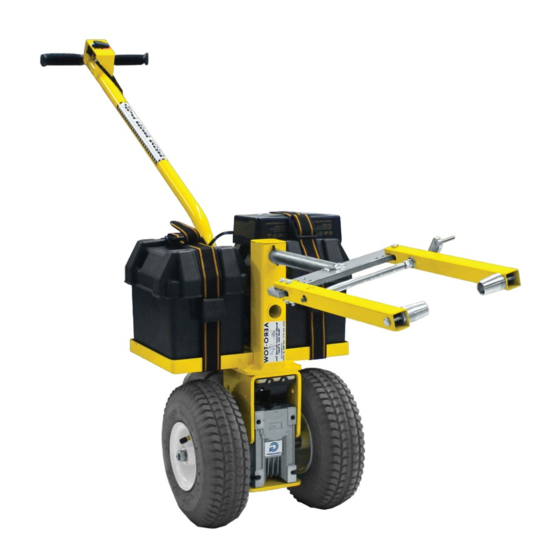

Summary of Contents for AeroTow T1
- Page 1 AeroTow User manual Are you ready to go? 989-777-0910 AmigoAeroTow.com...
- Page 2 1 / 2 / 4 amp selectable reverse. charger Power, on / off Tires Weight capacity T1 Weight 10” x 3.00-4 5,000 lbs on level Unit weight is 112 lbs ground As the operator, you are fully responsible for the safe operation of the tug and any damage done to your aircraft or hangar due to operation errors.
- Page 3 Wiring diagram 12654 12772 12756 12661 12773 12663T1 12643 12774 12700 12709 12808 12771 12771 8967 8967 12641 12642 Tacktile indicator Tactile indicator to the left to the left...
- Page 4 (D) Feed the 6-pin white connector cable from the handle (A) through the hole in the T1 frame (F), and connect it to the white connector cable attached to the controller (E) on the underside the T1 frame.
- Page 5 Adjusting the handle Choose a comfortable height adjustment for pulling your aircraft, not for maneuvering the T1 without a plane attached. 56” 39” 35” 26” 21” Height from ground when handle is parallel The handle is adjustable by simply removing the quick release...
- Page 6 Your AeroTow T1 comes with the recommended length prongs for the aircraft you provided. (2) Tow pin adapters Your AeroTow T1 comes with the recommended adapter for the aircraft you provided at the time of order. (3) Locking bar lever The width of the fork prongs (1) can be adjusted by locking / unlocking the locking bar using the lever on the right fork prong.
- Page 7 Moving your aircraft Check the surrounding area, and remove any obstacles or obstructions before moving your aircraft, remove chocks. Return to the handle of the tug. Turn power on and move your aircraft using the reverse / forward switch located on the front of the handle control box. Disconnecting your aircraft Chock your aircraft.
- Page 8 1-989-777-0910 0822-R2 service@myamigo.com...
