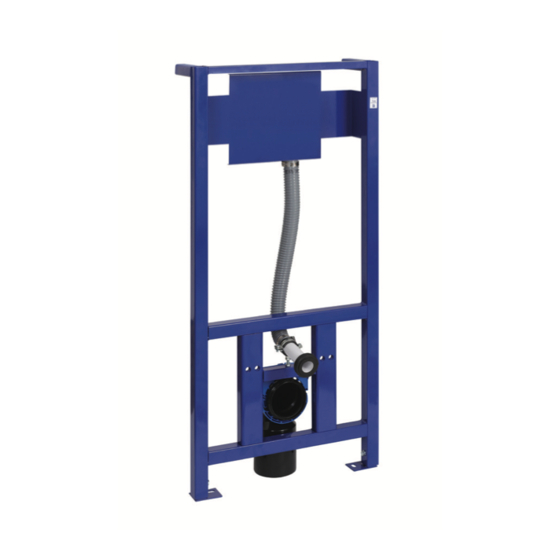

Sanela SLR 01 Manual

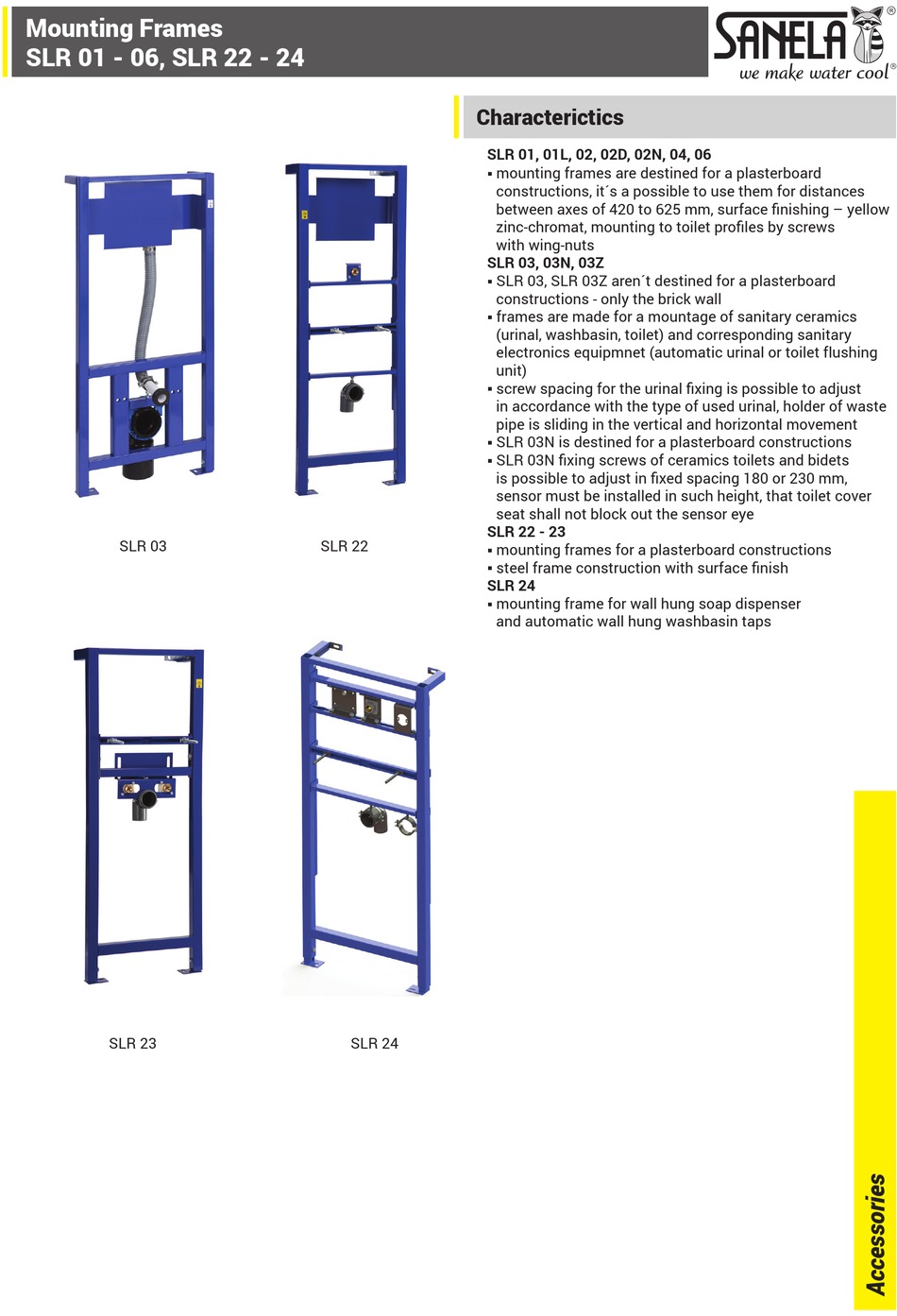

Mounting Frames
SLR 01 - 06, SLR 22 - 24
SLR 03
SLR 23
Characterictics
SLR 01, 01L, 02, 02D, 02N, 04, 06

SLR 03, 03N, 03Z





SLR 22 - 23
SLR 22


SLR 24

SLR 24
mounting frames are destined for a plasterboard
constructions, it´s a possible to use them for distances
between axes of 420 to 625 mm, surface fi nishing – yellow
zinc-chromat, mounting to toilet profi les by screws
with wing-nuts
SLR 03, SLR 03Z aren´t destined for a plasterboard
constructions - only the brick wall
frames are made for a mountage of sanitary ceramics
(urinal, washbasin, toilet) and corresponding sanitary
electronics equipmnet (automatic urinal or toilet fl ushing
unit)
screw spacing for the urinal fi xing is possible to adjust
in accordance with the type of used urinal, holder of waste
pipe is sliding in the vertical and horizontal movement
SLR 03N is destined for a plasterboard constructions
SLR 03N fi xing screws of ceramics toilets and bidets
is possible to adjust in fi xed spacing 180 or 230 mm,
sensor must be installed in such height, that toilet cover
seat shall not block out the sensor eye
mounting frames for a plasterboard constructions
steel frame construction with surface fi nish
mounting frame for wall hung soap dispenser
and automatic wall hung washbasin taps
