CAUTION: Use leather work gloves and safety glasses when handling the box, when opening
the box and when assembling the product.
HAZARD: Strapping is under tension and can jump when cut. Strapping and Buckles, Protec-
tive Edging, Plastic Walls, Plastic Caps and Product Components and parts should be handled
with care. Work slowly, use extra caution to avoid any sharp edges.
Additional Tools may be Required: The essential tools are included. The following tools
are recommended to be on site: Box Cutter, Scissors, Screw Driver, Plyers or Adjustable
wrench. HAND TIGHTEN ONLY !!!! DO NOT USE POWER TOOLS !!!
-
Advertisement
Related Manuals for Studio Titan STA 01-450
Summary of Contents for Studio Titan STA 01-450

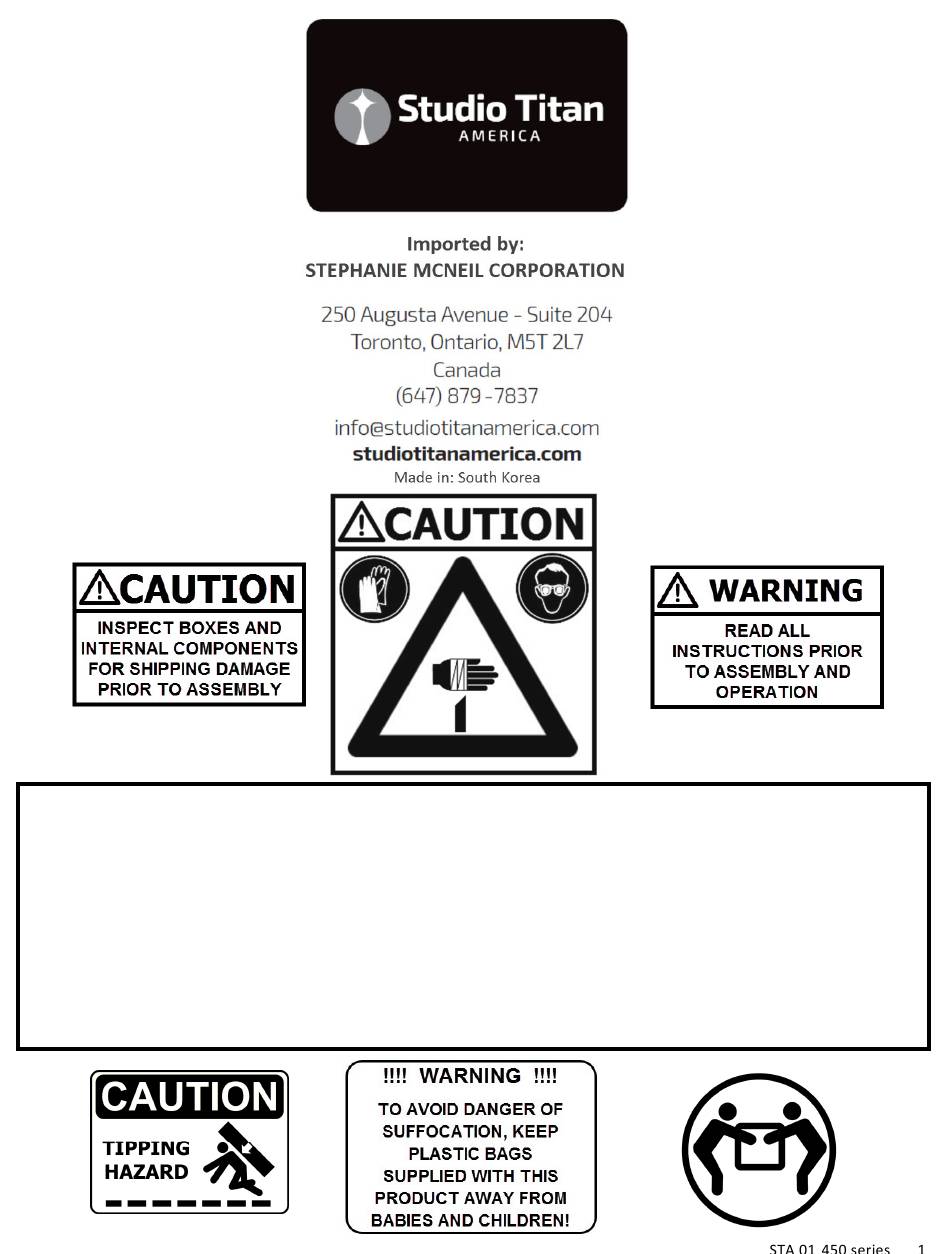

- Page 1 CAUTION: Use leather work gloves and safety glasses when handling the box, when opening the box and when assembling the product. HAZARD: Strapping is under tension and can jump when cut. Strapping and Buckles, Protec- tive Edging, Plastic Walls, Plastic Caps and Product Components and parts should be handled with care.
-
Page 2: Transit Damage
Transit Damage: Each package is inspected prior to being shipped from the warehouse to insure that is in perfect condition. The column shipping boxes are constructed using extra thick cardboard. If handled without care the boxes will show signs of transit damage. - Page 3 Product Identification:...
-
Page 4: Intended Use
Intended use: This product is intended for use by professional and commercial photographers in a studio envi- ronment. The wheels are designed to be used indoors on a floor that is smooth, hard, flat and unobstructed. CAUTION: This product is not recommended for use on carpeted floors. - Page 5 Component Identification: STA 01-450...
- Page 6 !CAUTION ! Cross Threading Components: Cross-threading components during assembly is not covered under warranty. Cross-threading is a term that describes damage that is caused when a misaligned screw or knob thread is forced into a threaded hole. When this occurs, threads are damaged and are no longer capable of proper operation.
- Page 7 1. Insert the Lower Vertical column into the base. Turn Diagram: B the assembly upside down so you can see into the bottom of the base. Insert the two grey semi-circular keys into the bottom of the base. Tighten two pairs of hex grub screws, one pair on each side of the base to secure the Lower Ver- tical column into the base.
- Page 8 4. Attach the three Leg Assemblies to the base. [See Dia- gram: A] The Hex Key tool is supplied and fasteners are supplied attached to the Base. Use the supplied Hex Key Loosen the fasteners, insert the legs and then re-tighten by hand.
- Page 9 A studio stand is used by professional and com- mercial photographers to capture images accu- rately with repeatability. It provides a rigid and stable platform essential for High Resolution Sen- sors used in DSLR, Medium Format and Large Format cameras and imaging systems. A studio stand reduces vibrations that are present when shooting hand held.
- Page 10 Tip Over Hazard: Caution must be used when moving the stand to prevent tip over. Move the stand slowly and avoid uneven surfaces as well as low and high level ob- jects. Additional caution must be used when the Horizontal arm with load (Camera or Laptop Shelf) is used in the upper area above the midpoint of the stand.
- Page 11 STA 01-450 Specification • Total Height : 151cm / 59.45 in / 4 feet 11.4 in • Working Height Maximum : 151cm / 59.45 in / 4 feet • Plastic bags are made of 11.4 in (measured from Camera Plate to floor) LDPE (Low-Density Poly- •...
