Spectrum EFHS-PK-10-3/4 Installation & Operation Manual

EFHS INSTALLATION & OPERATION GUIDE
Installation should be carried out by a competent person with previous plumbing experience.
All installations should comply with local bylaws.
bar bar
psi psi
4
"Example system shown is Part Number : EFHS-PK/PK-10-3/4"
Before starting, shut off the water supply to the location where the
unit is to be installed. Clear the location of any hazards, ie electrical.
1. Using the housing bracket, mark out the location for affixing the
system, ensuring a minimum 1½" clearance at the base for bowl
removal (required for filter cartridge replacement).
2. Remove the bowl(s) to make installation easier.
3. Affix to the mounting surface.
NOTE: Screws supplied are not suitable for all mounting surfaces. Use
details in Table 1 to work out the correct fixing option.
4. Unwrap and insert cartridge(s) into bowl(s) as required (coarser
filters first). Refit bowl(s) onto the housing head(s) and hand
tighten, ensure cartridges are sealed correctly and seal against the
head. Use the spanner to tighten bowl, follow the arrow moulded
on spanner handle.
5. Turn the water back on and depress the blue pressure release
valve to purge any air.
6. Check for leaks around system.
7. Run the system until the filter(s) has been flushed thoroughly
(approx. 5 litres).
8. Check for leaks before leaving the system in operation. Use
spanner to tighten bowl (if required).
Please note : Systems left unused for extended periods of time should be fully flushed to drain before using.
1
2
bar
psi
3

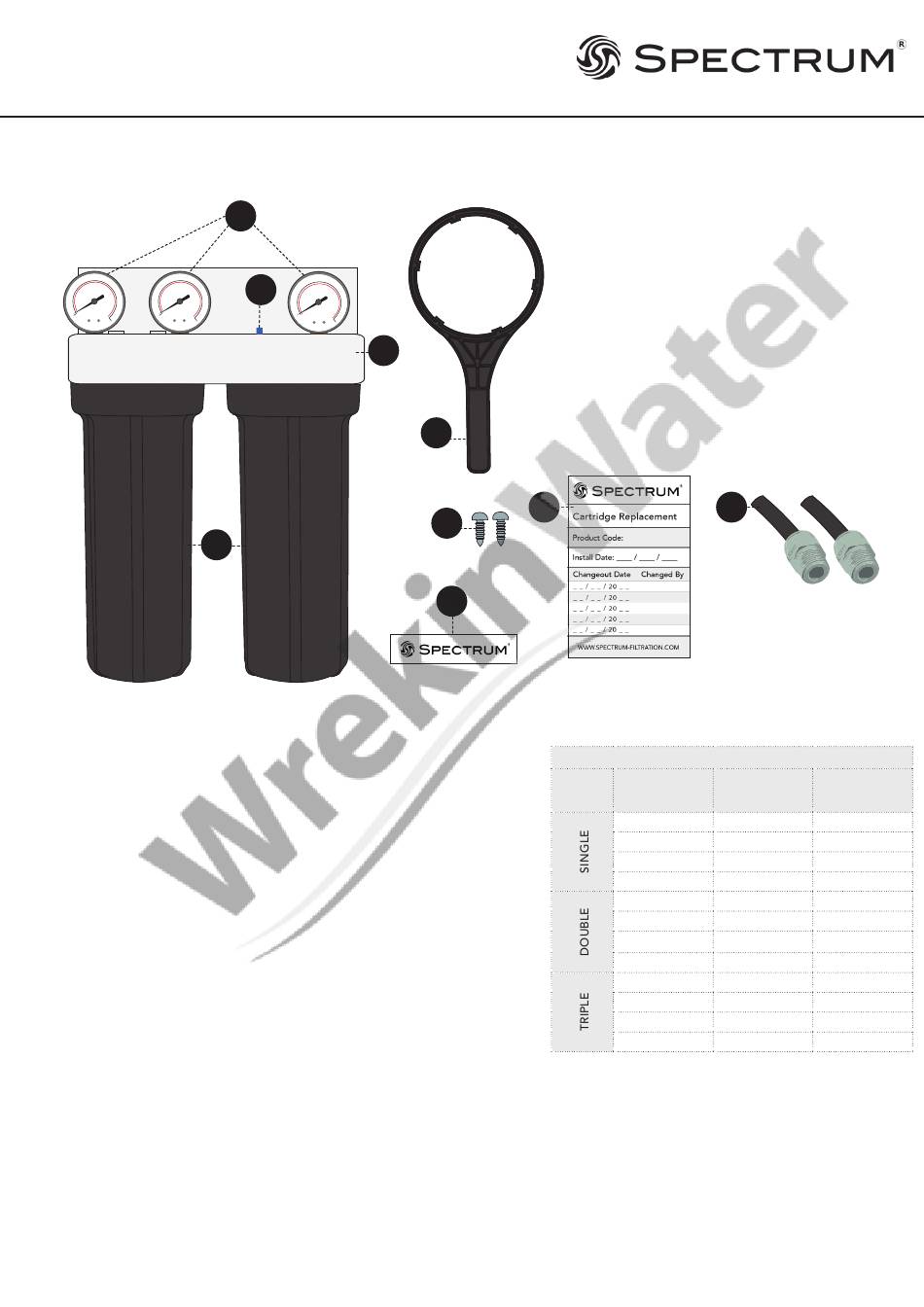

Equipment Supplied
Housing System
1.
2.
3.
4.
Accessories
5.
6.
7.
8.
5
Note: Double and Triple Systems include connecting nipples.
9.
8
6
7
TABLE 1.
*Weights based on use with water and appropriate sized cartridges.
System weights with other fluids will vary.
SPECTRUM EFHS Installation & Replacement Cartridge Instructions0821v2
