Summary of Contents for Lifa Air LAX200

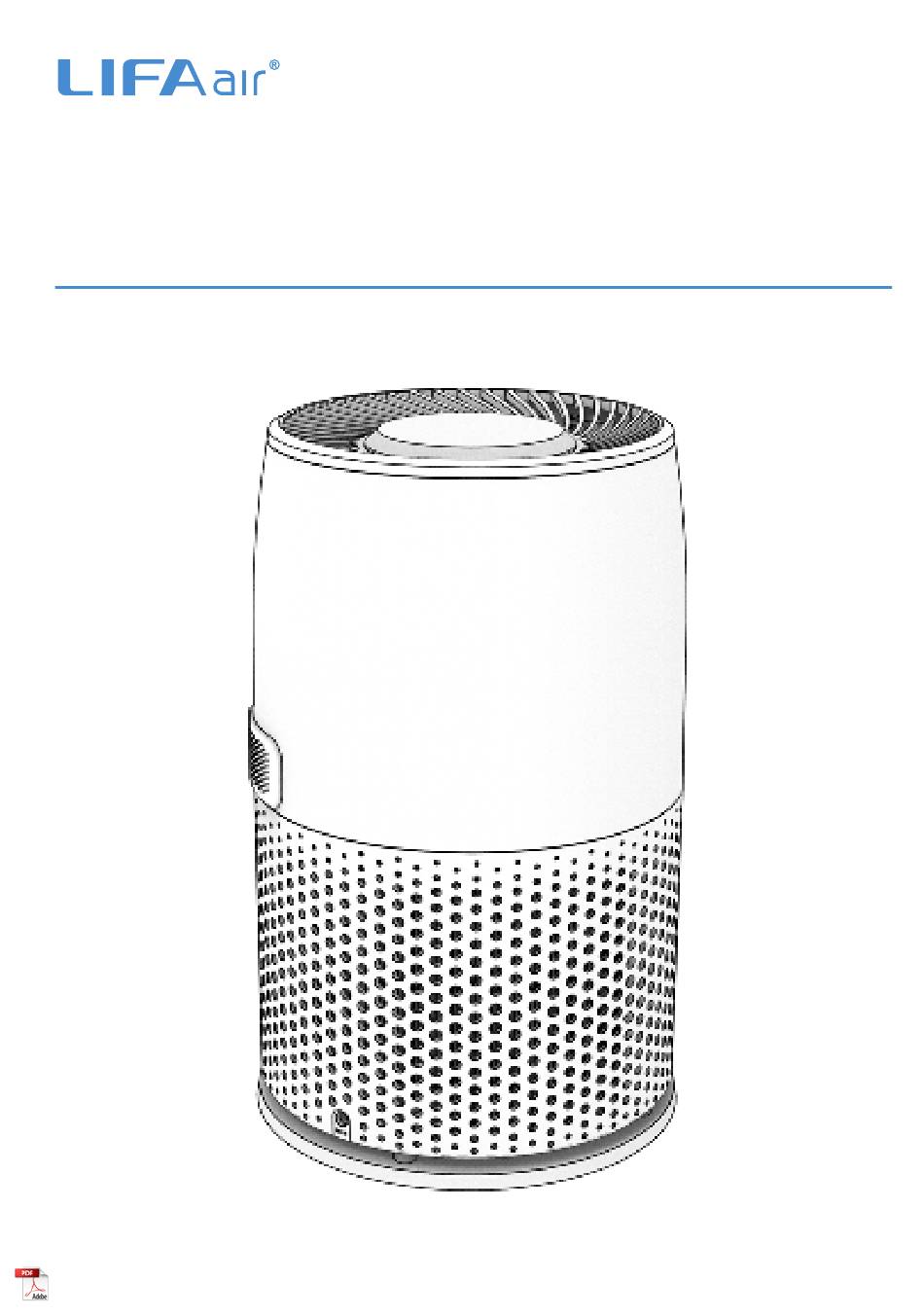

- Page 1 LAX200 Smart Air Purifier User Manual IMPORTANT! Please read the user manual before using the product, and do keep securely for future reference. WARNING: Before first time use, you must take out the HEPA filter and remove the protective plastic bag.
-
Page 2: Table Of Contents
6. Using the Air Purifier 7. Touchscreen and Functions 8. AUTO mode 9. Filter Replacement 10. Filter Care 11. Cleaning the Air Quality Sensor 12. Specifications 13. Troubleshooting Lifa Air Plc Eteläranta 14, 6th floor 00130 Helsinki, Finland www.lifa-air.com Customer service: care@lifa-air.com... -
Page 3: Important Safety Information
1. Important Safety Information Only use attachments/accessories provided by the manufacturer. • Keep the machine away from children to avoid accidents. • Do not block any ventilation openings. Install the machine in accordance with the manufacturer’s • instructions. Make sure the machine stands in the upright position, never operate the machine when in other •... -
Page 4: Package Contents
2. Package Contents Air purifier HEPA filter Power cable Power adapter main unit 3. Functions Replaceable HEPA Filter Air Outlet Touchscreen Serial number Dust Cover and product (for the air information quality sensor) DC power connector (connect to the power adapter) -
Page 5: Technology
4. Technology Touchscreen You can control all Ioniser the functions of your air Anion generator creates purifier through the negative ions that attach touchscreen. to and destroy harmful airborne particulates. Ioniser is OFF by default, please turn it ON from the touchscreen. -
Page 6: Filter Removal And Installation
5. Filter removal and installation Before using the device for the first time, you must remove the filter from the device and ATTENTION! remove the protective plastic bag around it. Please follow the steps below to do this. 1. Turn the air purifier upside down. To protect the touch screen from damage, place the device on top of a soft fabric or other suitable material. -
Page 7: Using The Air Purifier
6. Using the air purifier To optimize the performance of the product, please place the air purifier at least 15 cm away from nearby walls and at least 120 cm from the ceiling. 120 cm (from the ceiling) 15 cm (from the wall) 15 cm (from the wall) Remove all the protective plastic wrapping from the power components. -
Page 8: Touchscreen And Functions
7. Touchscreen and Functions TIMER ON Use this function to set the time between 1-12 hours until you want the machine to turn ON. TIMER OFF Use this function to set the time between 1-12 hours until you want the machine to turn OFF. CHILD LOCK Use this mode to lock all the functions, thus preventing accidental changes. -
Page 9: Auto Mode
8. AUTO mode When you turn on the air purifier , the device will go into “AUTO mode” by default. In AUTO mode the air purifier is actively measuring the surrounding air quality and adjusting the fan speed accordingly. The LED ring will indicate the level of air pollution by displaying different colours. The AUTO mode can be turned off... -
Page 10: Filter Replacement
9. Filter replacement The FILTER REPLACE button will start flashing once the operating time reaches the end of the filter's lifetime. It is then highly recommended to replace the 6G filter to keep running the air purifier at the maximum efficiency. -
Page 11: Cleaning The Air Quality Sensor
11. Cleaning the air quality sensor When the lens of the sensor is stained or contaminated by moisture, particulates or smoke, the sensitivity of the sensor drops. Please follow the cleaning procedure below: 1. To remove the dust cover, press firmly with your fingers from the left side of the cover to release the locking mechanism. -
Page 12: Specifications
12. Specifications LAX200 Smart Air Purifier Product Name: LAX200 Model No.: 220-240 V~ 50/60 Hz Input Voltage (adapter): 24V DC Output Voltage (adapter): Rated Power Rate: Effective area: 25 m² 170 m³/h CADR: Main product material: Diameter 218 mm, Height 350 mm... -
Page 13: Troubleshooting
13. Troubleshooting Symptoms Check Is the filter removed from the plastic bag? Remove the plastic bad before using. Is the filter installed correctly? Please confirm whether the filter is installed correctly. No exhaust Is the filter blocked? Please clean the filter. No change of air volume The air volume decreases Air flow volume might temporarily drop... - Page 14 Lifa Air Plc Eteläranta 14, 6th floor 00130 Helsinki, Finland www.lifa-air.com Customer service: care@lifa-air.com...
