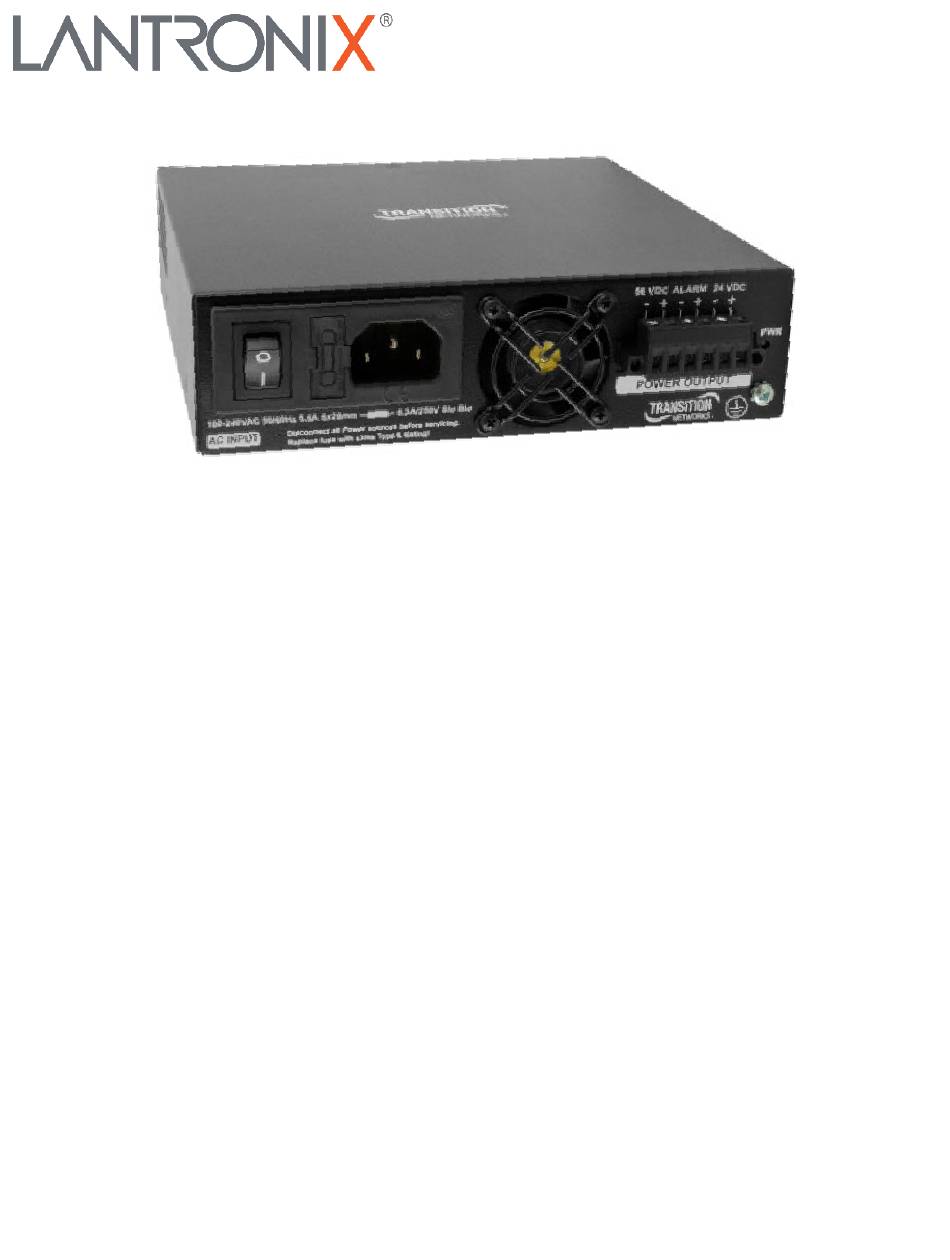

- Page 1 PS-DC-DUAL-5624T 345 Watt Isolated Power Supply with 56VDC and 24 VDC Dual Output Install Guide Part Number 33788 Revision E January 2022...
- Page 2 PS-DC-DUAL-5624T Power Supply Install Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix.
-
Page 3: Table Of Contents
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Table of Contents ...............................4 Introduction ................................4 Ordering Information ....................................4 Features ..................................5 Specifications ..............................6 Power Cord Specifications ..................6 27275 AC Power Cord with locking; -NA Line Cord, Right angle ......................7 27274 AC Power Cord with locking;... -
Page 4: Introduction
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Introduction The Power Supply provides 345W at 56VDC and is targeted for PoE applications. The Power Supply is fully compliant with IEEE 802.3af, at, and bt PoE standards for isolation. It provides a secondary fully-isolated 24V at 1.25A (30W) output for other equipment. -
Page 5: Specifications
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Specifications Voltage 56V (terminal block) Regulation +/- 2% Output 1 Current Rating 5.7A Power Rating 315W Voltage 24V (terminal block) Regulation +/- 5% Output 2 Current Rating 1.25A Power Rating 30W Input Voltage Range... -
Page 6: Power Cord Specifications
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Power Cord Specifications Power cord specifications are provided below. 27275 AC Power Cord with locking; -NA Line Cord, Right angle Connectors: NEMA 5-15P IEC-60320-C13 Length: 3 ft. (0.91 m) Gauge: Jacket Type: SJTW 105⁰C Rating: 10A –... -
Page 7: 27274 Ac Power Cord With Locking; -Na Line Cord
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide 27274 AC Power Cord with locking; -NA Line Cord Page 7 of 19 33788 Rev. E https://www.lantronix.com/... -
Page 8: 3344 Ac Power Cord; Non-Locking; -Na Line Cord
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide 3344 AC Power Cord; non-locking; -NA Line Cord Page 8 of 19 33788 Rev. E https://www.lantronix.com/... -
Page 9: Connectors And Leds
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Connectors and LEDs AC Input • Connector: IEC C14 • Fuse: 6.3A slo blo • Power On/Off switch 56VDC and 24VDC output: 6-Pin Terminal Block • Pin 1: 24Vout+ • Pin 2: 24Vout- • Pin 3: Alarm Contacts 1 •... -
Page 10: Dimensions
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Dimensions Power Cords Locking and non-locking line cords are available. AC Power Cord with locking; -NA Line Cord AC Power Cord with locking; -NA Line Cord, Right angle Page 10 of 19 33788 Rev. E... -
Page 11: Front Panel Descriptions
The Power Supply front panel is shown and described below. See the Installation section for the actual grounding and connection procedures. PS-DC-DUAL-5624T Hardened 345 Watt Isolated Power Supply with 56VDC and 24VDC Dual Output On / Off switch: The power on/power off switch is labeled O (off) /| (on). -
Page 12: Installation
Communication Systems, Air Traffic Control, Life Support, or Weapons Systems ("High Risk Activities"). Lantronix and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Notice: Not Designed for Use in Life Support Equipment or Applications: These products are not designed for use in life support equipment or applications that would cause a life-threatening situation if any such product failed. -
Page 13: Unpacking
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Input Power: 100-240 VAC ~ (Operating Temperature -20 to +50°C Unrestricted) 100-240 VAC ~ (Operating Temperature -20 to +70°C Restricted) 50/60 Hz 5.5A max Output Power: Power 1: 56VDC @ 315 Watts, 5.6 Amps Power 2: 24VDC @ 30 Watts, 1.25 Amps... -
Page 14: Mounting
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Mounting Desktop: You can attach the four adhesive-backed rubber feet to the bottom of the power supply for desktop mounting. DIN Rail: The power supply ships with a rack DIN rail bracket attached. Caution: If mounted in a NEMA rated enclosure, either vertical direction is allowed. -
Page 15: Pwr (Power) Led
Warning: Disconnect all Power sources before servicing. Caution: Replace fuse with same Type & Rating! Installing TN 16210 Ferrite For EMC reasons, install Snap-on Ferrite, TN 16210, over the 24 VDC (PS-DC-DUAL-5624T) output wires after installation. 1. Open Ferrite. 2. Place the Ferrite over the 24 VDC Outputs. -
Page 16: Related Manuals
• CLI Reference - SISPM1040-384-LRT-C and SISPM1040-362-LRT, 33729 Application Example The example below shows a SISPM1040-384-LRT-C switch, Enclosure Door sensor, and PS-DC-DUAL-5624T power supply in a single cabinet/enclosure. Warning: Ensure that the target alarm input is capable of accepting the applied voltage (24VDC). -
Page 17: Related Information
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Related Information Troubleshooting 1. Check the PWR LED for status; see the PWR (Power) LED description on page 15. 2. Check the LED for On or alarm event blinking: a. A short or overload of the 56V will be indicated by no power LED or possibly a quick On/Off cycling. -
Page 18: Electrical Safety Warnings
Lantronix PS-DC-DUAL-5624T Power Supply Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal installeres i overensstemmelse med sikkerhedsadvarslerne. - Page 19 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support +1.952.358.3601, 1.800.260.1312, or techsupport@transition.com Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 19 of 19 33788 Rev. E https://www.lantronix.com/...
