Welcome to the Air Water™ family. Here some tips to help you get the best

out of your machine.

1. Once unpacked, you will notice that there are 2 pipes in the bag placed

in the storage container section of the machine. Please open the

container and remove these.

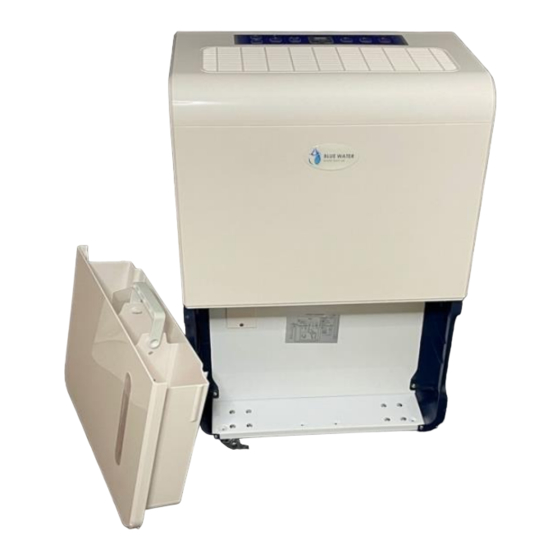

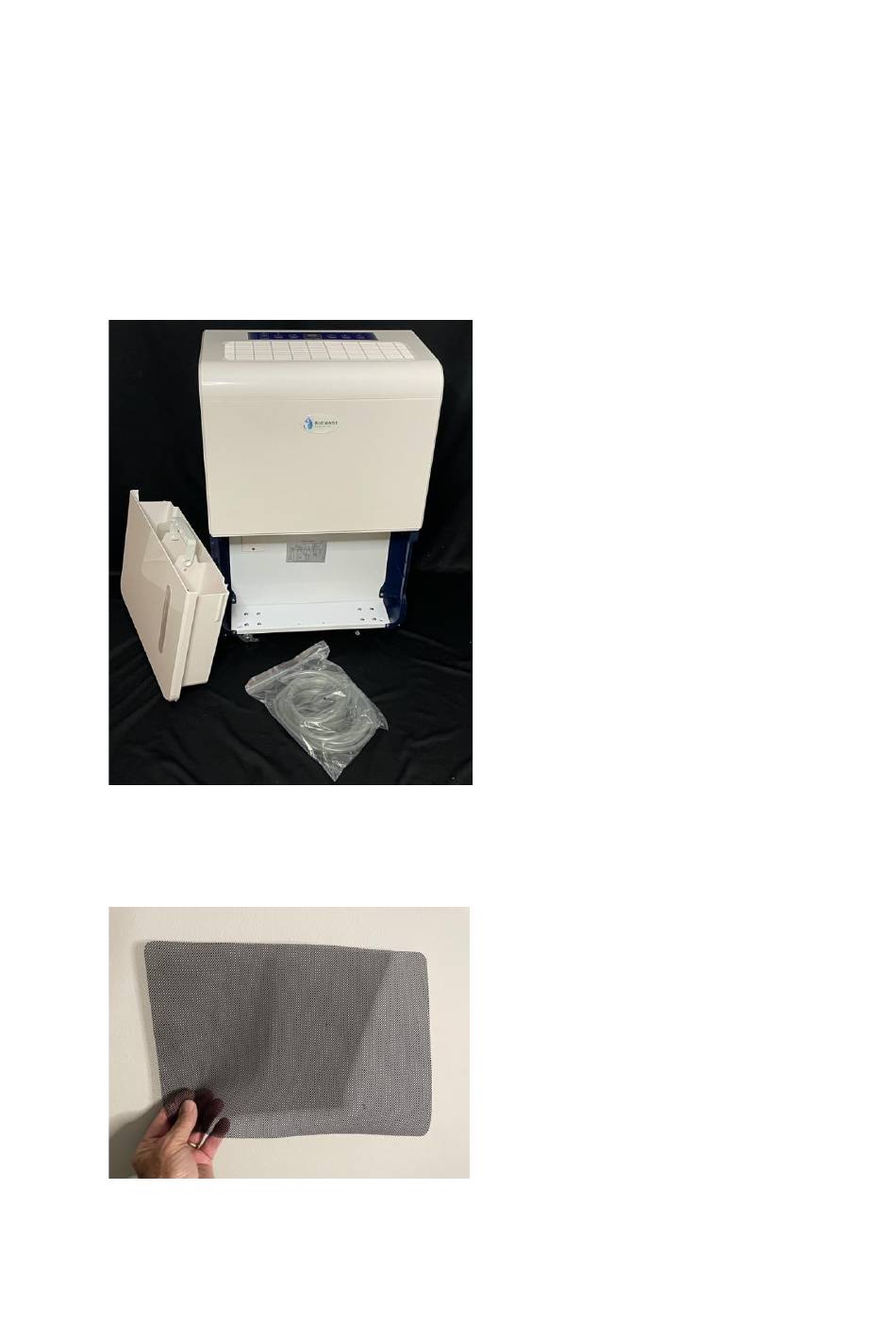

Fig 1 AW70 with container and pipes

2. Insert the electrostatic filter into the cover see Fig.2

Fig 2. Electrostatic Air Filter

AW70 – Getting Started

Table of Contents

Need help?

Do you have a question about the AW70 and is the answer not in the manual?

Questions and answers

Summary of Contents for Airwater AW70

Page 1 1. Once unpacked, you will notice that there are 2 pipes in the bag placed in the storage container section of the machine. Please open the container and remove these. Fig 1 AW70 with container and pipes 2. Insert the electrostatic filter into the cover see Fig.2 Fig 2. Electrostatic Air Filter...
Page 2 Fig. 3 Electrostatic Air Filter inserts into cover 3. Please note the little black stopper in the plastic bag with the manual. This will be used in dispensing configuration B. Fig. 4 Black Stopper 4. There are 3 different water dispensing outlets to choose from. A) The gravity feed which uses the thicker of the two pipes provided (CONT DRAIN) see Fig.
Page 3 The big advantage is that the storage container can be higher than the AW70 itself see Fig. 7 The AW70 makes 200 ml of water from the air and then pumps that out. The time between the water dispensing through the pump depends on the heat and humidity i.e., the higher the temperature and the humidity...
Page 4 Fig. 7 Suggested configuration for AW70 and filter 6. For areas with lower, or fluctuating heat, and humidity we suggest producing more water than needed and storing it in a larger container. One can then pour through the filter on demand manually.
Page 5 DO NOT SWITCH THE SPEED BUTTON TO HI OR LOW 4. Set the lowest humidity that you would like your AW70 to operate at by pressing the up or down button. It is set at 50%, but you can set it lower if needs be.
Page 6 DO NOT SWITCH THE SPEED BUTTON TO HI OR LOW 4. Set the lowest humidity that you would like your AW70 to operate at by pressing the up or down button. It is set at 50%, but you can set it lower if needs be.
Page 7 Please note: The gravity stack filter is provided by Air Water™ as a courtesy to get started. There are, however, many in the market to choose from – some manual and some automated. The separation of the Air Water™ Atmospheric Water Generator and filter has several advantages including: •...
