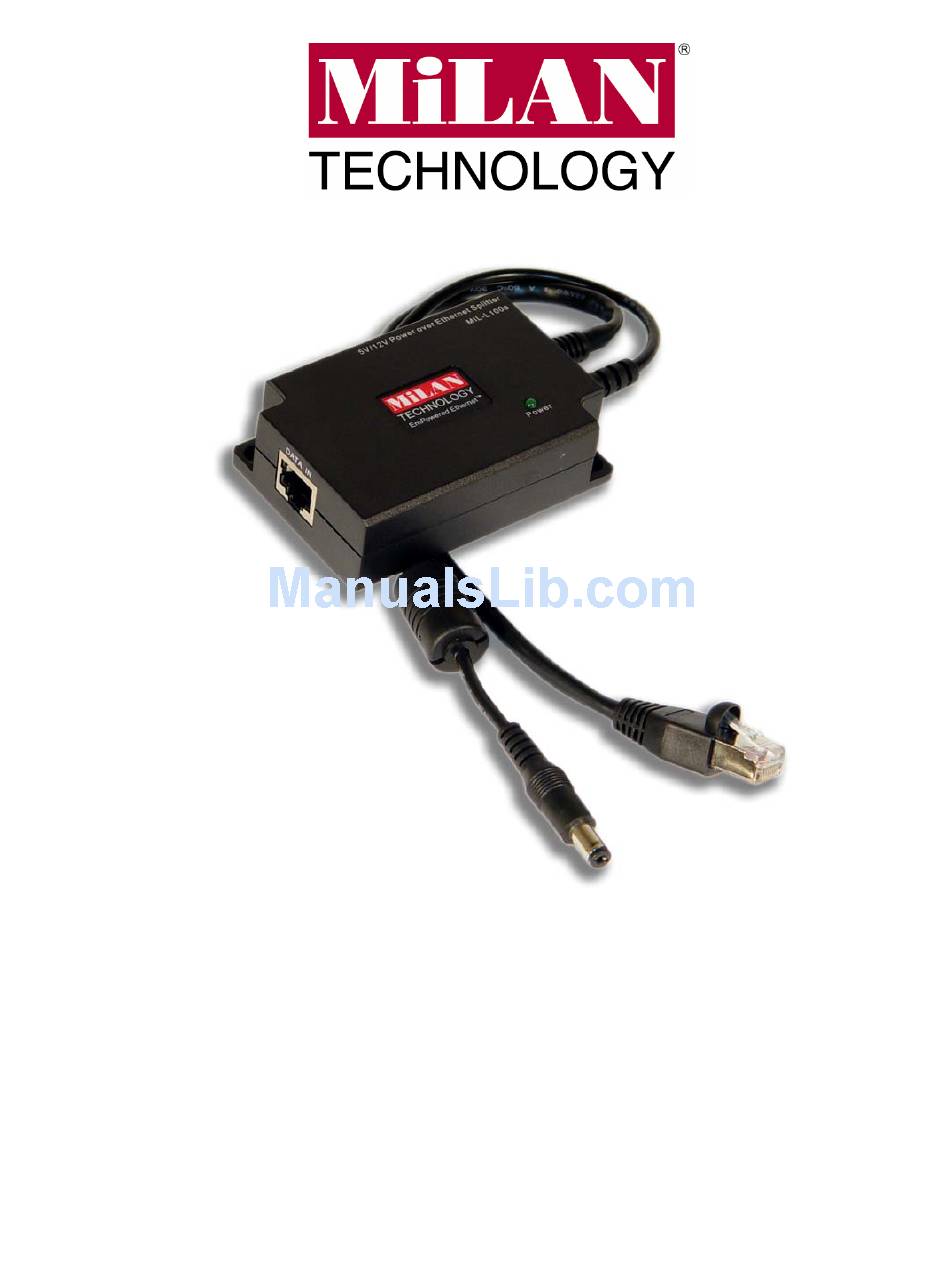

- Page 1 MIL-L100s Power over Ethernet Dual-Voltage Splitter USER GUIDE...
- Page 2 In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction... 1 ...2 EATURES ...2 ACKAGE ONTENTS 2. Hardware Description ... 3 3. Installation... 5 4. Technical Specification ... 6... -
Page 4: Introduction
1. Introduction Thank you for purchasing MiLAN Technology’s MIL-100i Single-Port Power over Ethernet Dual-Voltage Splitter. This PoE Splitter provides data and power to non 802.3af compliant devices. It splits data and power out from a single cat5 cable to Ethernet and DC 5V/2A or 12V/1A power to a network device that is not compliant with IEEE802.3af standard. -
Page 5: Features
Regulate output voltage by DIP Package Contents Unpack the contents of the package and verify them against the checklist below. MIL-L100s Dual-Voltage Power over Ethernet Splitter User Manual Warranty Card If any item is missing or damaged, please contact your local dealer for... -
Page 6: Hardware Description
2. Hardware Description The MIL-100s Power over Ethernet Splitter has three connection ports, one LED indicator, and one DIP switch for adjusting voltage. Below is a description of the three connections. Data In port: An RJ-45 Ethernet interface port for data into the PoE Splitter. - Page 7 LED indicator: One Power LED indictor for the system unit. It is located on the topside of the Power over Ethernet Splitter. Figure 2-3. System Power LED Indicator DIPswitch: It is used for switching the voltage to PD. It provides two voltage values –...
-
Page 8: Installation
3. Installation To install the MIL-L100s Power over Ethernet Splitter, please follow the steps below: 0. Using RJ-45 cable that is Data in port on the Power over Ethernet Splitter to connect with the PoE Switch/HUB (which is Data out port). If the Switch/HUB does not support PoE function, you need to install a PoE injector between Switch/HUB and Power over Ethernet Splitter. -
Page 9: Technical Specification
4. Technical Specification The following table provides the technical specification of the Power over Ethernet. Standard Power jack diameter Connector Network Cable Power Input Operating environment Dimension EMI & Safety IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3af Power over Ethernet 5.5 x 2.0mm DIP 12V: Output voltage 12V DIP 5V: Output voltage 5V(Default) Data and power in: 1 x RJ-45.Data pin 1,2,3,6... - Page 10 90000431 Rev A...
