- Page 1 Operating manual Force Transfer Standard Series KTN-ZD Nominal Force 5 N - 1000 kN...
- Page 2 The content of these manual is intended solely for information purposes and can be changed at any time without prior notification. With regard to the warranty and liability, we refer expressly to our 'General commercial terms and conditions' (www.gtm-gmbh.com) and the instructions and regulations con- tained in these installation and operating instructions.
-
Page 3: Table Of Contents
10.3 Class 0,5 | Construction size 5 N - 500 N ........24 10.4 Class 0,5 | Construction size 1 kN - 1000 kN ......25 11. Technical support ................26 12. Declaration of incorporation .............. 27 Series KTN-ZD (eng.) 16/09/2022 Page 3 #PrecisionWins www.gtm-gmbh.com... -
Page 4: Product Description

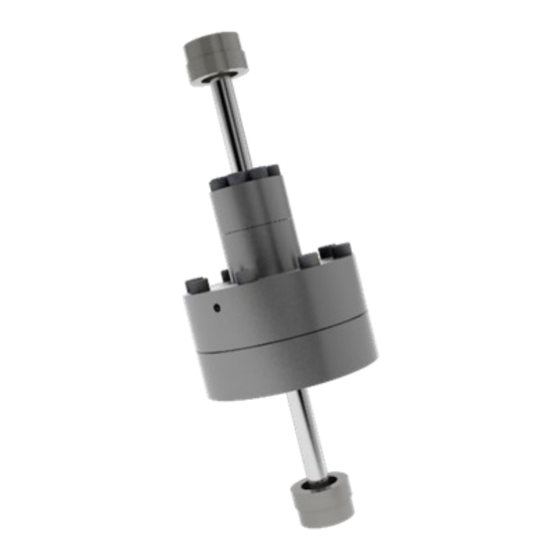

1. Product description 1.1 Designated use The force transducer of the KTN-ZD series is is suitable for measuring uniaxial tensile and compressive forces and is used for calibration of static measuring machines, for example in accordance with ISO 376. For safe operation, original force introducing components must be used. -
Page 5: Safety Instructions
Denotes usage tips, general information and other useful notes. DANGER OF BURSTING! Denotes a potentially hazardous situation that can cause physical injuries or death if ignored. ▶ Denotes handling instructions Denotes lists Series KTN-ZD (eng.) 16/09/2022 Page 5 #PrecisionWins www.gtm-gmbh.com... - Page 6 Reference must be made to the remaining residual hazards in the DANGER! In the case of a complete system, the safety-related criteria must be taken into account so that any failure of the transducer does not present a hazard to anyone. Series KTN-ZD (eng.) 16/09/2022 Page 6 #PrecisionWins www.gtm-gmbh.com...
- Page 7 Qualified personnel are those persons who are acquainted with the assembly, commissioning and operation of the trans- ducer and who have the appropriate qualifications for their job. NOTE GTM offers training courses to qualify personnel. Series KTN-ZD (eng.) 16/09/2022 Page 7 #PrecisionWins...
- Page 8 No welding circuits may be introduced through the body of the transducer. If in doubt, you must dismantle the trans- ducer. DANGER! The transducer is not suitable for: - Potentially explosive areas - Power surges - Welding circuits Series KTN-ZD (eng.) 16/09/2022 Page 8 #PrecisionWins www.gtm-gmbh.com...
-
Page 9: Storage And Transport Instructions
▶ During storage, secure rotationally symmetrical transducers and attach- ment parts from rolling away. ▶ Only use the original transport packaging and other appropriate cut-to-size packaging for storage and transport. Series KTN-ZD (eng.) 16/09/2022 Page 9 #PrecisionWins www.gtm-gmbh.com... -
Page 10: Cable Connection
2) Female LEMO S.A. Typ: EGG.1B.307.CLL; Male: FGG.1B.307.CLA.D72 ▶ ▶ ▶ pluggable cable connection ; 5 N to 100 N pluggable cable connection from 200 N permanent cable connection, end not connected Series KTN-ZD (eng.) 16/09/2022 Page 10 #PrecisionWins www.gtm-gmbh.com... -
Page 11: Double Bridge
For transducers with a double measuring bridge the second signal is mea- sured by means of an additional plug. The respective electrical connec- tions can be found in the chapter Technical Data. Series KTN-ZD (eng.) 16/09/2022 Page 11 #PrecisionWins www.gtm-gmbh.com... -
Page 12: Bending Moment Measuring Circuits
10 K Rated characteristic value mV/V Input resistance Ω Operating range of 5 - 12 excitation voltage U, G 1) Specification shown on the label ▶ Position of the coordinate cross Series KTN-ZD (eng.) 16/09/2022 Page 12 #PrecisionWins www.gtm-gmbh.com... -
Page 13: Temperature Measurement
4 x 0,04 mm² Temperature range: -50 °C bis +105 °C Connection Color U (+) White Sense (+) U (-) Black Sense (–) Green Shielding Housing Housing Housing 1) View to weldingside Series KTN-ZD (eng.) 16/09/2022 Page 13 #PrecisionWins www.gtm-gmbh.com... -
Page 14: Application Instructions
The attachment must not rest on the measuring body. ▶ Pay attention to the cleanliness of the mounting surfaces and connections. They should be cleaned from dust and dirt before mounting and measuring, otherwise the measuring would be influenced. ✓ Series KTN-ZD (eng.) 16/09/2022 Page 14 #PrecisionWins www.gtm-gmbh.com... -
Page 15: Mating Dimensions
Mating dimensions 9. Mating dimensions 9.1 Construction size 5 N – 100 N ▶ ▶ ▶ Standard equipment Accessories: thrust piece Accessories: tension adaption Series KTN-ZD (eng.) 16/09/2022 Page 15 #PrecisionWins www.gtm-gmbh.com... -
Page 16: Construction Size 200 N - 2500 N
Mating dimensions 9.2 Construction size 200 N – 2500 N ▶ ▶ ▶ Standard equipment Accessories: thrust piece Accessories: tension adaption Series KTN-ZD (eng.) 16/09/2022 Page 16 #PrecisionWins www.gtm-gmbh.com... -
Page 17: Dimensions Of Construction Size 5 N - 2500 N
Diameter ØD Thread Thread M20x1.5 Thread Thread 52.7 74.5 Height 45.7 Height Height 27.5 32.5 Height Height Height 61.4 94.5 Height 16.4 Height 253.7 245.5 Height Height Height 24.8 Height Height Height Series KTN-ZD (eng.) 16/09/2022 Page 17 #PrecisionWins www.gtm-gmbh.com... -
Page 18: Construction Size 5 Kn - 100 Kn
Mating dimensions 9.4 Construction size 5 kN – 100 kN ▶ ▶ ▶ Standard equipment Accessories: thrust piece Accessories: tension adaption Series KTN-ZD (eng.) 16/09/2022 Page 18 #PrecisionWins www.gtm-gmbh.com... -
Page 19: Construction Size 200 Kn - 500 Kn
Mating dimensions 9.5 Construction size 200 kN – 500 kN ▶ ▶ ▶ Standard equipment Accessories: thrust piece Accessories: tension adaption Series KTN-ZD (eng.) 16/09/2022 Page 19 #PrecisionWins www.gtm-gmbh.com... -
Page 20: Construction Size 1000 Kn
Mating dimensions 9.6 Construction size 1000 kN ▶ ▶ ▶ Standard equipment Accessories: thrust piece Accessories: tension adaption Series KTN-ZD (eng.) 16/09/2022 Page 20 #PrecisionWins www.gtm-gmbh.com... -
Page 21: Dimensions Of Construction Size 5 Kn - 1000 Kn
M10x1 M30x2 M39x2 M72x4 M90x4 M20x1.5 Thread M24x2 M30x2 M56x4 M64x4 Thread Height 112.5 Height 218.5 236.5 Height Height 30.5 Height 24.5 Height 159.5 Height Height 24.8 Height 25.4 Height 71.4 Height Series KTN-ZD (eng.) 16/09/2022 Page 21 #PrecisionWins www.gtm-gmbh.com... -
Page 22: Technical Data
Breaking force Permissible eccentricity Rated temperature range °C 17 - 27 T, nom Operating temperature range °C 10 - 35 T, G 1) Force transducer 2) Compression load transmission 3) Tension load transmission Series KTN-ZD (eng.) 16/09/2022 Page 22 #PrecisionWins www.gtm-gmbh.com... -
Page 23: Class 00 | Construction Size 1 Kn - 1000 Kn
Breaking force Permissible eccentricity Rated temperature range °C 17 - 27 T, nom Operating temperature range °C 10 - 35 T, G 1) Force transducer 2) Compression load transmission 3) Tension load transmission Series KTN-ZD (eng.) 16/09/2022 Page 23 #PrecisionWins www.gtm-gmbh.com... -
Page 24: Class 0,5 | Construction Size 5 N - 500 N
Breaking force Permissible eccentricity Rated temperature range °C 17 - 27 T, nom Operating temperature range °C 10 - 35 T, G 1) Force transducer 2) Compression load transmission 3) Tension load transmission Series KTN-ZD (eng.) 16/09/2022 Page 24 #PrecisionWins www.gtm-gmbh.com... -
Page 25: Class 0,5 | Construction Size 1 Kn - 1000 Kn
Breaking force Permissible eccentricity Rated temperature range °C 17 - 27 T, nom Operating temperature range °C 10 - 35 T, G 1) Force transducer 2) Compression load transmission 3) Tension load transmission Series KTN-ZD (eng.) 16/09/2022 Page 25 #PrecisionWins www.gtm-gmbh.com... -
Page 26: Technical Support
Technical support 11. Technical support If problems arise while working with the product the following GTM services can be used: E-mail support contact@gtm-gmbh.com Worldwide contact GTM Testing and Metrology GmbH Philipp-Reis-Straße 4-6 64404 Bickenbach Tel. +49 6257 9720-0 Fax +49 6257 9720-77 www.gtm-gmbh.com... -
Page 27: Declaration Of Incorporation
Declaration of incorporation 12. Declaration of incorporation In accordance with EC Machinery Directive 2006/42/EC from May 17, 2006, Appendix II B GTM Testing and Metrology GmbH Philipp-Reis-Straße 4-6 64404 Bickenbach Deutschland hereby declare that the product Force Transfer Standard Series KTN-ZD complies with the following basic requirement: ▶... - Page 28 GTM Testing and Metrology GmbH Tel: +49 6257 9720-0 Fax: +49 6257 9720-77 contact@gtm-gmbh.com www.gtm-gmbh.com Subject to change without notice. All information describes our products in general terms. They do not represent agreed quality in the sense of § 434 Para.
