EXAIR 7901 Installation & Maintenance

11510 Goldcoast Drive ▪ Cincinnati, OH, USA 45249-1621
(513) 671-3322 ▪ FAX (513) 671-3363 ▪ E-mail: techelp@exair.com

USING THE IONIZING BAR

The compact Ionizing Bar should be used at a location after the material has received its static charge. This shockless
ionizer delivers a high concentration of positive and negative ions for fast static decay within 2" (51mm) of any
surface.

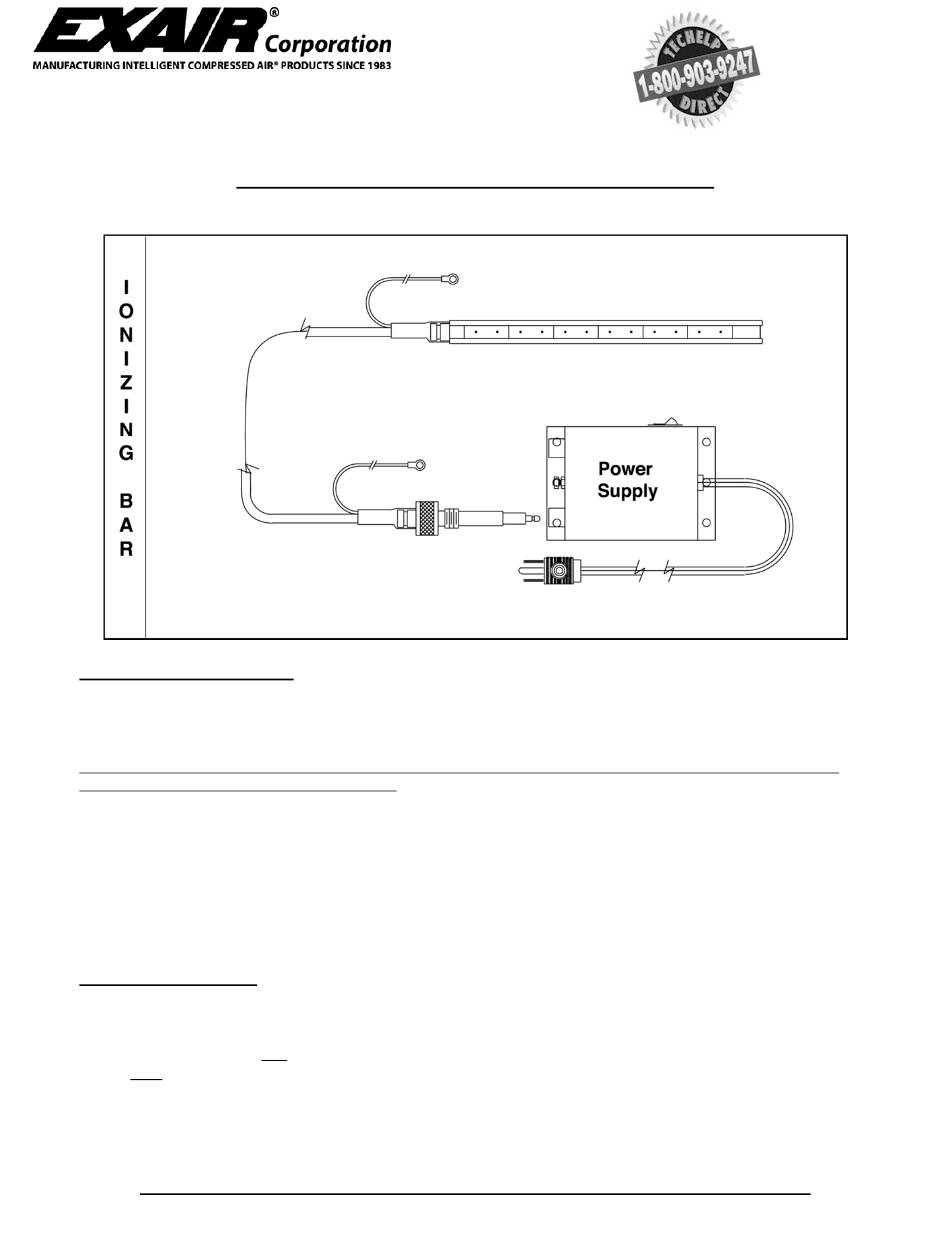

Upon installation, the ionizer cable must be shielded in plastic conduit, secured by non-conductive stand-offs/wire ties or
otherwise insulated from grounded metal surfaces.
The Ionizing Bar is supplied with a flange that has holes for mounting. For best performance, mount within 2" (51mm)
of the charged surface. The metallic surface of the bar must be grounded for the Ionizing Bar to function properly.
Attach the green ground wire to the flange of the ionizing bar when mounting it to the machine. On the opposite end of
the cable, connect the green ground wire to the power supply. Screw the bayonet connector of the high voltage power
cable into the power supply.
The ionizing point is shockless and may be touched without injury.

ELECTRICAL SUPPLY

The Model 7901 Power Supply (two outlet) and Model 7940 Power Supply (four outlet) require a 115V, 50/60Hz
source. The Model 7907 Power Supply (two outlet) and Model 7941 Power Supply (four outlet) require a 230V,
50/60Hz source. For proper operation, the Ionizing Bar and Power Supply must be properly grounded. If the unit is not
grounded, the Ionizing Bar will produce a shock and will not function properly. The ground terminal on the Power
Supply must be connected to the grounding wire of the Ionizing Bar.
Electrical Hazard: Shockless (less than 40 microamperes short circuited). Do not use near flammable materials or
gases.
The Ionizing Bar And Power Supply Should Not Be Used In An Explosive Or Flammable Area.
