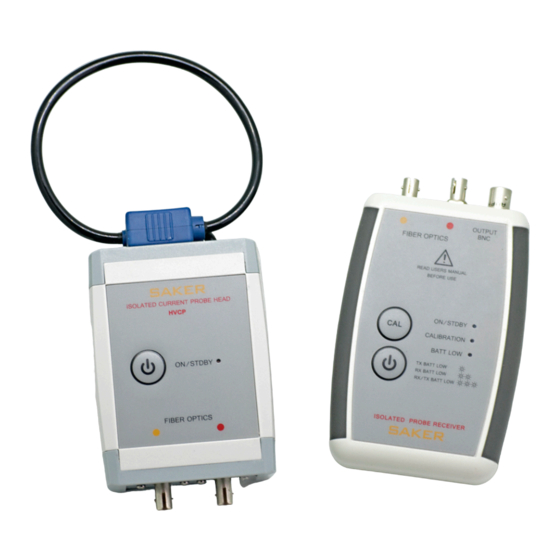

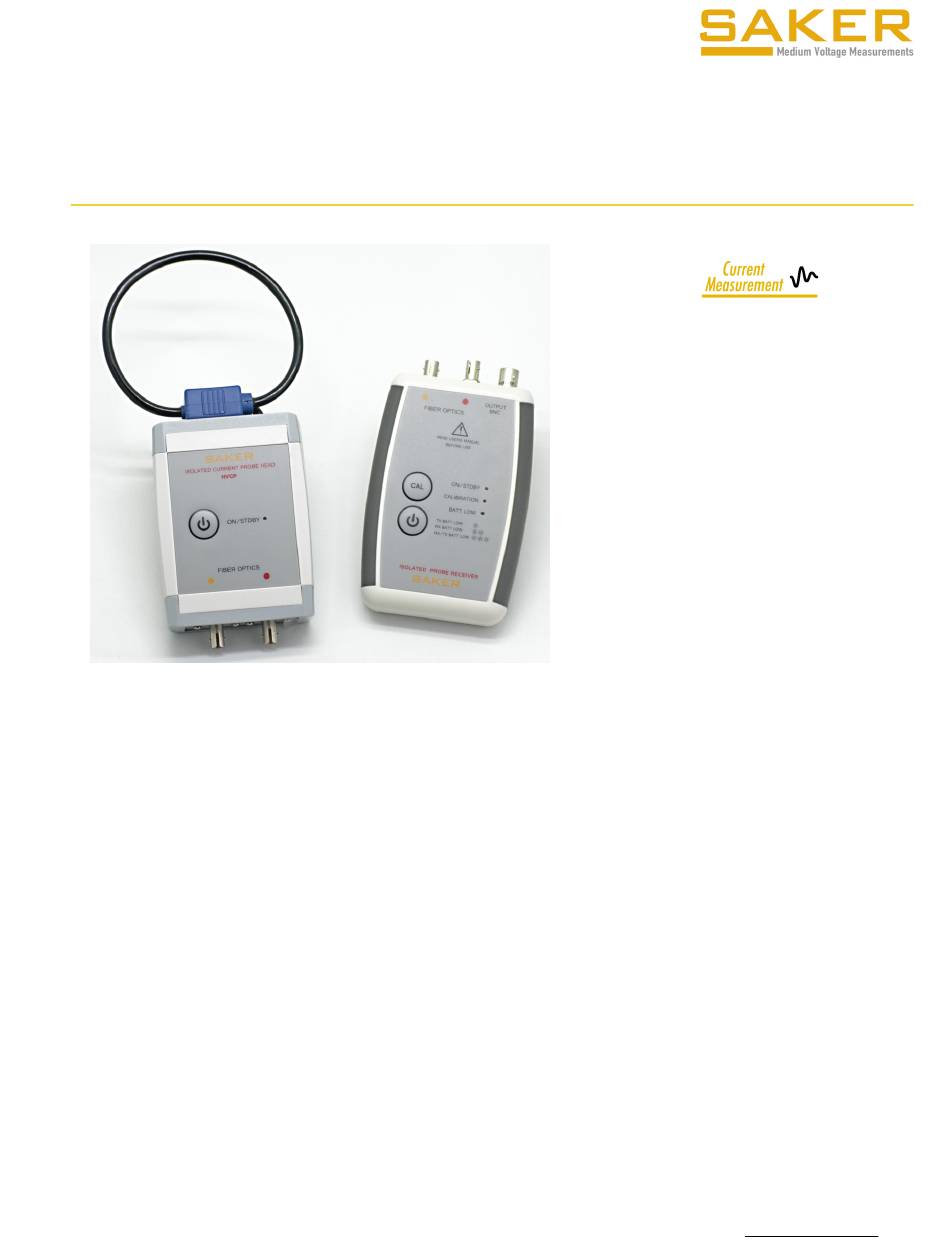

Fiber Optic Isolated Current Probe. HVCP
FEATURES
▪︎ Rogowsky coil with 2MHz bandwidth AC measurements
▪︎ Selectable optic cable length
▪︎ 500A, 1000A, 2000A models, optional customisation
▪︎ Auto zero, auto test and optical link auto calibration features
▪︎ Fiber optic link for increased EMI rejection and high voltage isolation
▪︎ High common mode rejection
▪︎ Low noise
▪︎ No 50/60Hz low frequency noise
▪︎ Battery powered, connects to any oscilloscope
▪︎ Remote standby mode for low power consumption
▪︎ Low Battery visual indication
▪︎ Patented design
BR-HVCP-1119-rev2
Specifications subject to change without notice
www.saker-mv.com
Advertisement
Table of Contents
Summary of Contents for Saker HVCP Series
- Page 1 ▪︎ Low noise ▪︎ No 50/60Hz low frequency noise ▪︎ Battery powered, connects to any oscilloscope ▪︎ Remote standby mode for low power consumption ▪︎ Low Battery visual indication ▪︎ Patented design www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice...
-
Page 2: Specifications
Maximum measurable current 1000 (HVCP1000) 500 (HVCP500) ± Overall accuracy Receiver output connector ± Receiver output range 2.5 (HVCP2000) mV/A Output ratio 5 (HVCP1000) 10 (HVCP500) Ω Measuring instrument minimum input impedance Calibration time www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice... - Page 3 Max. operating humidity, non-dondensing 3m standard, others optional Fiber optic bundle length See dimensions section Dimensions EMC IEC 61326-1:2012, ESD Normative references 61000-4-2 (A), RFI 61000-4-3 (A) Safety IEC 61010-1, 61010-2-030, RoHS 2011/65/EU USAGE www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice...
-
Page 4: Turning Off
To turn off the receiver press the TURN ON button for 1 second. The ON led light will turn off. As mentioned, if the fiber optic cables are connected to the probe head, it will also turn off automatically. www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice... -
Page 5: Standby Mode
fixed in the unit. WHEN NOT IN USE ALWAYS PROTECT THE OPTICAL CONNECTORS FROM DUST WITH THE SUPPLIED PROTECTIVE COVERS www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice... - Page 6 The probe head uses a rogowski coil as its measuring element. The conductor to be measured must be placed inside the coil. Open the coil by pulling its retention and embrace the busbar or cable to be measured. www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice...
- Page 7 It is advisable to install a voltage detector/indicator on the measured line that provides visual and clear indication about the presence of potentially dangerous voltages. SAKER offers the MVD and MVDH series of medium voltage presence detectors.
-
Page 8: Battery Replacement
ORDERING CODES CODE CODE Description HVCP current probe, 2MHz, 2000A range, including: HVCP2000 Head and handheld receiver unit 3 meter fiber optic bundle cables 1m BNC to BNC cable 4xAA batteries Carrying case www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice... - Page 9 For lengths other than 3, 7 or 15m contact us. CUSTOMIZATION SAKER offers customization services for this product. Typically a end user may need a different current measuring range, a special increased fiber optic cable length between probe head and handheld receiver unit or a higher capacity battery pack to power the remote probe head for long term measurements.
- Page 10 DIMENSIONS www.saker-mv.com BR-HVCP-1119-rev2 Specifications subject to change without notice...
