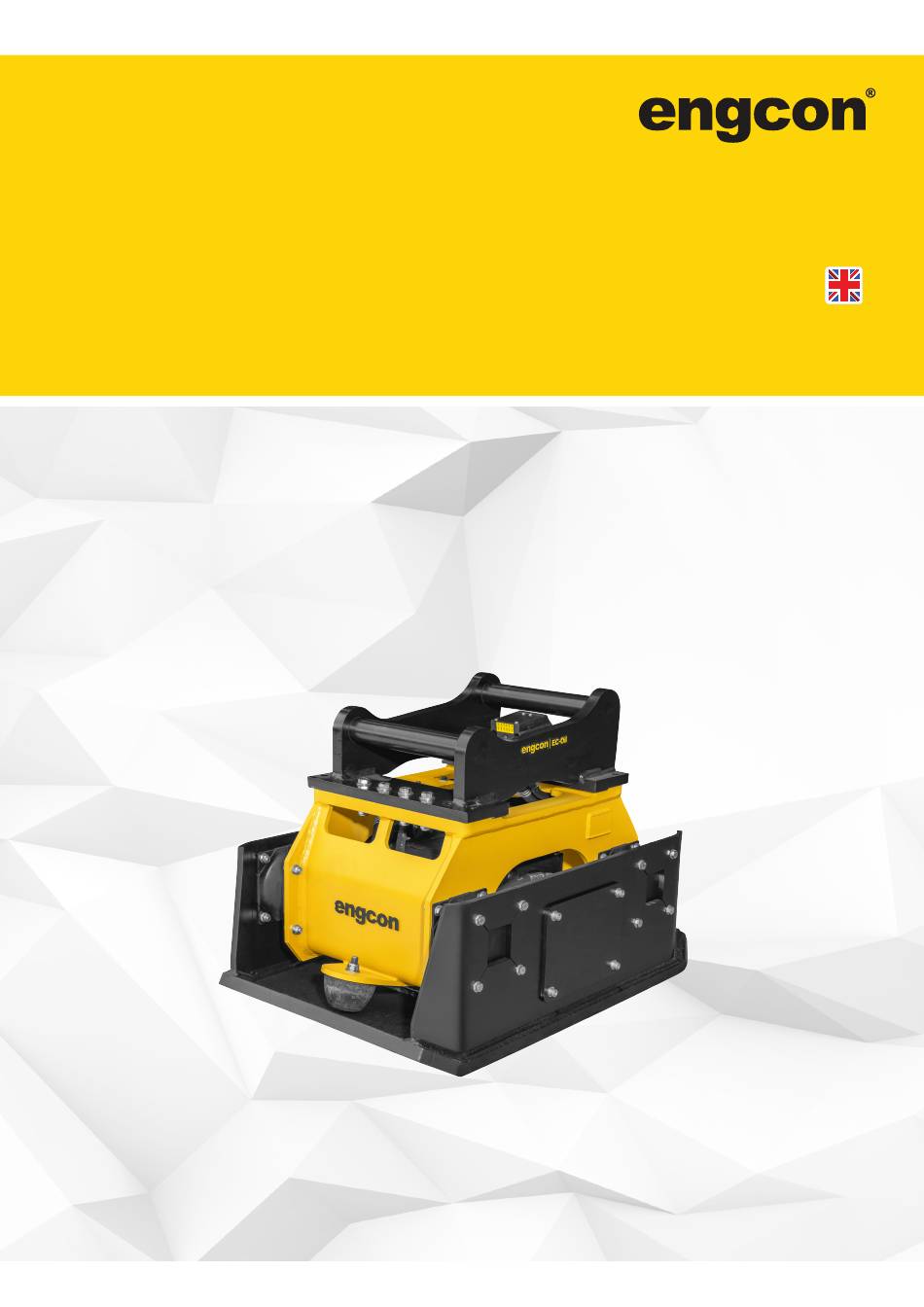

- Page 1 User manual COMPACTOR PC3200 | PC6000 | PC9500 Article 9000514 | Version 1.3 Original Instructions...
- Page 2 Dear Customer, Thank you for choosing a product from engcon. engcon is the market leader in tiltrotators and tools for excavators. We represent innovation, knowledge and experience, and we develop our products with a focus on the customer's needs. Please visit our website for contact information and details about the rest of our product range.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction 1.1. General......................4 1.2. Scrapping and recycling.................. 4 1.3. Warranty......................5 1.4. Technical support and spare parts..............5 1.5. Product approval..................... 6 1.5.1. EC Declaration of Conformity..............6 2. Safety 2.1. General......................7 3. -
Page 4: Introduction
1.2. Scrapping and recycling engcon makes constant efforts to reduce its environmental impact. engcon's products comprise at least 99 per cent recyclable material. All assembly and service work must take place in compliance with legislation and ordinances governing the environment, health and occupational safety. -
Page 5: Warranty
1 Introduction 1.3. Warranty This product was designed, dimensioned and manufactured by engcon. It is forbidden to modify, alter or convert this product such that it no longer corresponds to the manufacturer's specifications. When replacing parts or making repairs, contact an authorized workshop. -
Page 6: Product Approval
The following standards and directives have also been applied and complies with: This declaration and engcon's warranties will cease to be valid immediately if spare parts other than engcon original spare parts are used, or if any changes or other interventions are made without engcon's permission. -
Page 7: Safety
2 Safety 2. Safety 2.1. General It is important that you read and understand all warnings prior to installation work on this product or before you use it and any accessories supplied. The warning texts highlight potential risks and describe how to avoid them. The following warning levels are used in this user manual: DANGER Indicates that an accident will occur if the regulation is... -
Page 8: Design And Function
3. Design and function 3.1. General The engcon compactor is intended for the compaction of soil. The tool has a bolt-on gate/attachment point that allows the attachment point to be changed easily when necessary. The compactor consists of a vibrating plate and body connected to each other via vibration dampers. -
Page 9: Installation
WARNING If you have any doubts concerning the safety aspects of your knowledge, the equipment or work, contact a dealer or engcon Nordic AB. Incorrect installation affect safety. WARNING Welding is not permitted. It can have a negative impact on safety. Risk of personal injury and damage to property. -
Page 10: Mechanical
Risk of personal injury and damage to property. WARNING If you have any doubts concerning the safety aspects of your knowledge, the equipment or work, contact a dealer or engcon Nordic AB. Incorrect installation affect safety. -
Page 11: Electrical And Hydraulics
4 Installation 4.3. Electrical and hydraulics 4.3.1. Installing hydraulic hoses 1. Make sure the tool is level and resting stably. 2. Connect the base machine’s machine hitch/tiltrotator to the tool. 3. Stop the engine and depressurise the base machine's hydraulic outlet by operating the tool's functions. WARNING The hydraulic system must be de-pressurised... -
Page 12: On Completion
4 Installation 4.4. On completion 1. Affix the warning decals supplied in a conspicuous place in the operator's cab, without obscuring operator visibility. WARNING Replace damaged or illegible signs and decals before using the machine. Risk of personal injury and damage to property. -
Page 13: Operation
5 Operation 5. Operation 5.1. Before and during use Check your base machine manufacturer's recommendations for calculating tipping loads, and be sure to include the increased weight and reach the product entails. DANGER Do not exceed tipping load limits. The weight of the product and the increased reach may impair stability. - Page 14 5 Operation 4. Finish off work by disconnecting the extra hydraulics and raising the compactor from the ground. 5. Empty out any soil and stones that have entered between the compactor plate and the body. WARNING Pay attention to the surroundings when gravel, dust and other objects can cause inconvenience, personal injury or harm to property.
-
Page 15: Maintenance
6 Maintenance 6. Maintenance 6.1. General - Daily, carried out on all configurations before the machine is put into use for the working day. - Lubricate according to the lubrication schedule every 40 operating hours. Intervals for greasing and inspections to be performed by the user: DANGER Check the attachment points regularly and be alert for the formation of cracks. -
Page 16: Daily Inspections
6 Maintenance 6.2. Daily inspections WARNING Avoid contact with hydraulic oil. Risk of burns. WARNING Never use your hands to search for leaks in the hydraulic system. Use the necessary protective equipment. Pressurised hydraulic oil can penetrate the skin. Risk of personal injury. WARNING Beware of moving parts. -
Page 17: Special Maintenance
WARNING Welding is not permitted. It can have a negative impact on safety. Risk of personal injury and damage to property. For welding, contact your dealer or engcon Nordic AB. 6.3. Special maintenance 6.3.1. EC-Oil Cleaning - Clean oil connections, electrical... - Page 18 6 Maintenance Type Dimension Quality Quantity Torque PC3200 197 Nm PC6000 197 Nm PC9500 665 Nm Table 1. EC-Oil hydraulic connectors Type Fastener Quantity Torque ECO45/50/60/70 Hydraulic connector 60 Nm Table 2.
-
Page 19: Decals
7 Decals 7. Decals Machine instructions, decals and warning signs must be kept clearly legible. Contact your supplier to order replacements. WARNING Replace damaged or illegible signs and decals before using the machine. Risk of personal injury and damage to property. 7.1. - Page 20 7 Decals Leave room for rotating, tilting and sideways-moving tools. Risk area 3 metres. Crushing hazard from moving parts. Never exceed the base machine's approved tipping load. Read the user manual.
-
Page 21: Technical Data
8 Technical data 8. Technical data 8.1. Compactor Description PC3200 PC6000 PC9500 Compaction force Compaction area 0.44 0.61 0.86 Frequency Max hydraulic pressure Recommended hydraulic flow l/min from Recommended max return line pressure Weight excluding attachment point Length 1065 1318... -
Page 22: Glossary
9 Glossary 9. Glossary 9.1. Designations Term Description Base machine The machine carrying the equipment concerned. Excavator or backhoe loader. EC-Oil Automatic oil connection system for changing hydraulic tools from the cab. EC-Oil block H (Hitch) Located in the machine or in the quick hitch. EC-Oil block T (Top) Located on the upper section of the hydraulic tool and/or the tiltrotator. - Page 23 Notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 24 Uk Ltd 200B Ashchurch Business Centre, Tewkesbury GL20 8TD +44 1684 297168, uk@engcon.com www.engcon.com...
