Summary of Contents for WESCO NAVY FC18

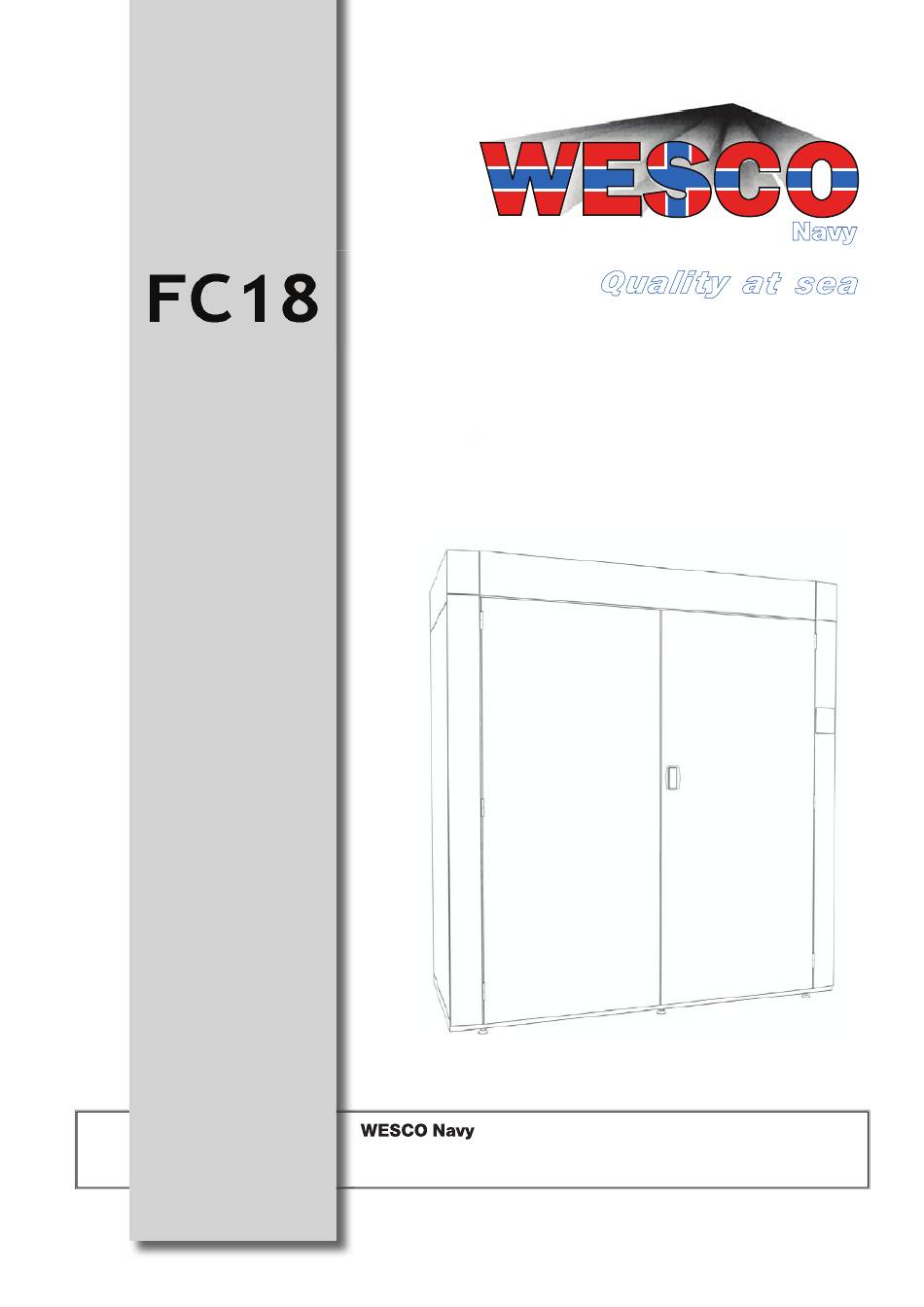

Page 1 Manual / Handbuch Spare parts list / Ersatzteilliste Equipment Imp.-Exp. GmbH Zitterpappelweg 9 • • D - 22391 Hamburg Tel.: + 49 40 60009468-0 Fax: + 49 40 536 75 01 • • E - M a i l : i n f o @ w e s c o - n a v y. c o m w w w .
Page 3: Safety Regulations
Safety regulations Throughout this manual you will ﬁnd text warnings in text box- WARNING es: “WARNING” and “CAUTION”. In these boxes you’ll ﬁnd the safety measurements you’ll have to take; end user, service staff or installation staff. To minimize the risk of ﬁre, electrical shock, personal injuries or death when the cabinet is in use the following precautions must be followed: CAUTION...
Page 4: Specification
Speciﬁcation Dimensions 1800 Technical information Loading capacity, number of suits Evacuated air, max, m³/h Heating effect, kW 12,0 Total effect, kW 12,45 Membrane Cotton wool Drying capacity, g/min * Drying time, min * Energy consumption, kWh/kg 0,98 0,34 Part No 131027 *Drying of 20 kg ﬁre suits (dry weight) washed and high-spinned to 5o % residual moisture for membrane suits and 15 % for cotton wool suits.
Page 5 Assembly instructions Tools You need the following tools to easily install the drying cabinet, FC 18: Cordless screwdriver Wrench Hex key 3 and 5 mm Level Torx screwdriver bit no. 25 ©PODAB 2009...
Page 8 (repeat 4-6)
Page 15: Door Switch
Connect the cables Keypad The side without hole pattern to the left. Lights Door switch ©PODAB 2009...
Page 17: Installation Of The Cabinet
Installation of the cabinet Step 1: Put the cabinet in place NOTE: If the cabinet is not connected according to these recommendations, the warranty is no longer valid. Place the cabinet with enough space in front of the cabinet and on the sides to be able to open the doors.
Page 18 Requirements for ventilation Requirements for incoming air WARNING In order to make the cabinet work properly, it is very important that there is enough incoming air in the room. The incoming air A drying cabinet produces inﬂammable dust. To minimize the must be at least 4 00 m³/hour.
Page 19 Evacuated amount of air and pressure fall Decrease the outgoing air ﬂow The cabinets function and automatic programs are optimized In order to get FC 18 to work properly, the ventilation channel for the recommended air ﬂow of 300 m3/h. If the design of the shall be designed to get an out coming air ﬂow from the cabinet ventilation is made so that evacuated air ﬂow exceeds 300 of about 300 m³/h.
Page 20 User manual Fill the cabinet Increase or reduce the temperature with the arrow buttons 3 and 4. There are three levels: To get the best drying result: try to dry the same type of ﬁre- Minimum (MIN) = 40ºC ﬁghting suits at the same time. Distribute the clothing evenly in Medium (MED) = 60ºC the cabinet.
Page 21: Maintenance
The FC 18 have three different automatic programmes: Mem- CAUTION brane, Cotton wool and Stationwear . For these programmes the drying time is adjusted automatically. Programme: Membrane If a program is interrupted before the cool down has ﬁnished, When automatic mode is activated, the programme Membrane the ceiling of the cabinet could be very hot.
Page 22: Main Control Board
Main control board Drying cabinet, FC 18 Firedryer, can be customized by adjust- ing the main control board´s parameters. The following pages describe how to adjust the parameters. Service menu Activate the service menu To enter the service menu; press both left arrow buttons in about 5 seconds.
Page 23: Parameter List
Parameter list Parameter Alternative Factory position LANGUAGE SWE/ENG/FR MODEL TS 62, T 196, TS 92, FC 18 FC 18 RESET DEGREE UNIT MIN TEMP [-- --], 25 -> [MED-5] MED TEMP [MIN + 5] -> [MAX-5] MAX TEMP [MED + 5]-90 DEF TEMP MIN/MED/MAX SHOW DEGREES...
Page 24: Explanation Of Parameters
Explanation of parameters LANGUAGE PR# TEMP FC 18 Firedryer is delivered with English display text as stan- Every automatic programme can be adjusted by choosing dard. Choose between Swedish, English and French. temperatures MIN, MED, MAX. The temperature values are the same as parameters MIN TEMP, MED TEMP and MAX TEMP.
Page 25: Error Codes
LIGHT TIME Error codes When the doors open, the light inside the cabinet is turned on. With the parameter LIGHT TIME you set how long the light will Reason Activity be on, if the doors are left opened. When the time is up, the Control that the sensor is Control board gets no lamp is turned off automatically.
Page 26: Spare Parts List
Spare parts list Cabinet Part No Description TS61053 Door left TS61054 Door right TS 61086 Handle TS61055 Hanger frame left Detailed view A TS61056 Hanger frame right TS61057 Hanger TS61058 Service door (middle fan) TS 61081 Lamp 70107001 Door switch 011058 Sticker user instructions 0110152...
Page 27 Part No Description TS 61080 Element 2000 W E 150020 Fan motor TS61028 Over heat protection 160°C TS61052 Front panel 504142 Relay LC1-D12P7 230 V TS 61082 Disturbance ﬁlter 0110150-2 Main control board 0110154-2 Humidity sensor TS 61083 Condensator 0110155-2 Temperature sensor...
Page 28: Electrical Drawing
Electrical drawing ®PODAB 2010...
