Summary of Contents for Neomatica ADM34
- Page 2 This operation manual refers to the Tag ADM34 (Tag hereinafter), the manual describes its functionality, the procedure of its configuration and operation. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022...
-
Page 3: Table Of Contents
7 Warranty ......................................16 8 Marking and Packing .................................. 17 9 Disposal ......................................17 10 Scope of supply ..................................17 11 Ac c ept an ce ce rt ifi cat e ..............................17 Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 4: Application And Functions

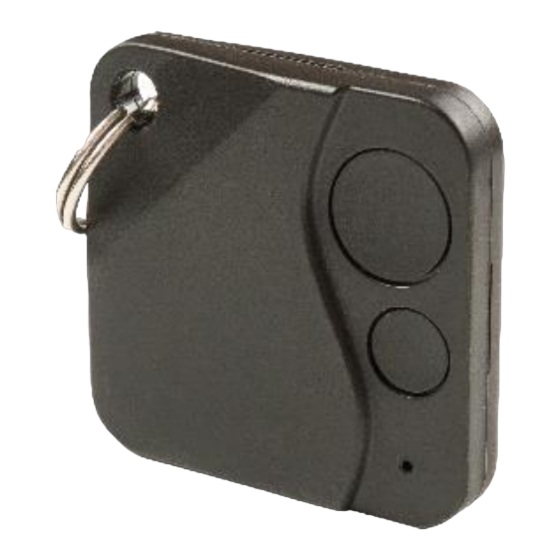

Housing protection level: IP53 ; • Housing material: ABS plastic; • Dimensions, mm, not more than: 40x40x10 (without fob); • Weight: not more than 20 g. Figure 1 – View of the tag. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 5: R Epa R Ati On Fo R U S E An D Conf Igu R Ati On
• Tag control; • Tag configuration; • Assessment of signal level when passing through obstacles; • Assessment of the battery state; • Definition of the tag address; • Definition of the firmware version. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 6: Search Of The Tag In Application "Adm Ble-Configurator
15 seconds before the beep, then try detecting again. Following parametrs are avaliable: • Model; MAC-address; • • RSSI –level of received radio signal • The time passed since the last data mes- sage was received Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 7: Configuration
4.2 Main parameters of the tag The tag configuration contains three levels that depend on each other. We recommend setting three main parameters in the following order: mode of operation, submode, data package control. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 8: Mode Of Operation
Mixed – device works as a tag and as remote control for immobilizer at the same time. • Broadcasting is carried out by pressing buttons or periodically. In this case, the submode does not need to be selected. The broadcast algorithm is configured in the menu “Data package control”. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 9: Submode
Detailed description is given in paragraph 4.3. 4.2.4 Other configurations • Password Set password to protect configurations. The password is required to run the session of the configurations.The existence of password doesn’t affect tag. • LED indication Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... - Page 10 Setting transmitter power. The lower the power, the smaller the distance over which the signal will be transmitted. Signal transmission range also depends on the surrounding conditions. • Reset configurations Resets the tag to factory settings. • Firmware actualization This menu updates the tag software. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022...
-
Page 11: Configuration Of Broadcast In The Mode "Ble Tag
Broadcast starts after a short press on the button and stops by expiration of the established broadcast duration. Chose the protocol, identifier of the tag (UID) and set the duration of broadcasting in menu “Data package control”. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... - Page 12 The tag transmits the identifier over the selected protocol at a set frequency. Pressing a small button starts broadcasting, pressing a large button stops broadcasting. Chose the protocol, identifier of the tag (UID) and set the period of broadcasting in menu “Data package control”. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022...
-
Page 13: Broadcast Configuration In Mode "Control Of Immobilizer
The state to which the relay should switch is determined by the last pressed tag button. In menu "Data Package Control" select the state to which to switch the immobilizer relay and set the broadcast frequency. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... - Page 14 In the "Data package control" menu for each tag button select the state to which to switch the immobilizer relay and set the broadcast duration. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022...
-
Page 15: Broadcasting Configuration In Mode "Mixed
Chose protocol, identifier (UID) of the BLE-tag, broadcast period in the menu “Data package control”. For each label button, select a state to which to switch the immobilizer relay and set the broadcast duration. Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 16: Tag Firmware Actualization
- -tags with signs of electrical and/or other damages caused as a result of unacceptable changes in external power network parameters or improper use of the terminal; Neomatica LLC”. Tag ADM34 ver..1.0 of 21.11.2022... -
Page 17: Marking And Packing
Quantity Comments Tag ADM34 11 Acceptance certificate Tag ADM34 in the amount of _____ pcs are considered to be ready for operation Date of manufacture: Manufacturer: «Neomatica»LLC 614087, Russia,Perm, 24A Malkova Str., office 6. Telephone: +7 (342) 2-111-500 (ext. 42).
