ENG
.
Translation of the original op-
erating instructions manual

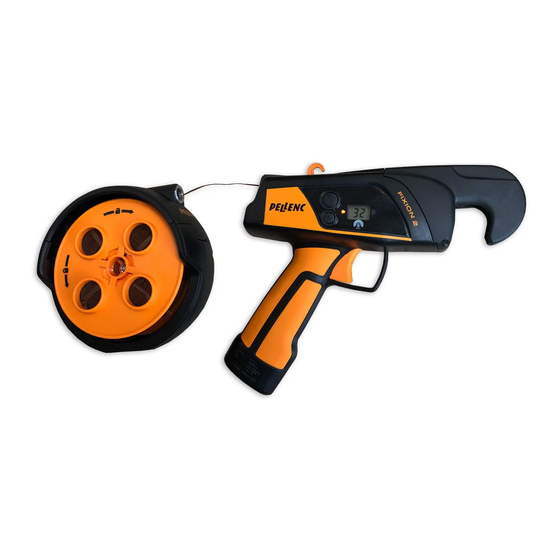

TYING MACHINE
FIXION 2
29_133084-G
Operating instructions
02/2022
READ THE USER GUIDE CAREFULLY BEFORE USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIXION 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for pellenc FIXION 2

Summary of Contents for pellenc FIXION 2

  • Page 1 Translation of the original op- erating instructions manual TYING MACHINE FIXION 2 29_133084-G Operating instructions 02/2022 READ THE USER GUIDE CAREFULLY BEFORE USE...

  • Page 3: Table Of Contents

    2.2.7. MANAGEMENT OF THE RECYCLING AND RECOVERY OF WASTE FROM YOUR TOOL ....2.3. SAFETY WARNING THE TYING MACHINE ................... 2.4. SAFETY MEASURES ASSOCIATED WITH BATTERY USE ............2.5. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER ..........2.6. SAFETY SIGNAGE .......................... 2.7. PERSONAL PROTECTION EQUIPMENT ..................
  • Page 4 ..........................9.3.1. TIES ..............................10. WARRANTIES ........................41 10.1. GENERAL WARRANTIES ......................10.1.1. STATUTORY WARRANTY ......................10.1.2. COMMERCIAL WARRANTYPELLENC .................... 10.1.3. PAID AFTER-SALES SERVICE ...................... 11. EC STATEMENT OF COMPLIANCE ................. 44 11.1. "EC" DECLARATION OF CONFORMITY: FIXION 2 ..............

  • Page 5: Introduction

    29_133084-G 1. INTRODUCTION Dear Customer, Thank you for purchasing your Tying machine FIXION 2 . Properly used and maintained, this equipment will give you years of satisfaction. Warning In accordance with product liability laws, we are not responsible for damage caused by our product if the product includes an accessory that is not from the manufacturer or is not approved by the manufacturer.

  • Page 6: Safety

    2. SAFETY 2.1. INTENDED USAGE • The Tying machine FIXION 2 is a professional tool whose use is reserved exclusively for tying vine shoots. • Any other use of this tool is not intended. • The PELLENC company accepts no responsibility for any damage caused by improper or unspecified use different from its original intention.

  • Page 7: Personal Safety

    TYING MACHINE FIXION 2 29_133084-G 2.2.3. PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 8: Servicing

    • Battery alone: product that is classified as class 9, UN3480. 14. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery is used, Pellenc SA cannot be held responsible for any consequences.

  • Page 9: Safety Measures When Using The "Pellenc" Charger

    In the event of contact with eyes, seek professional medical help. The liquid leaking from the batteries can cause irritations or burns. 19. Pellenc power tools must only be used with the battery units designed for the purpose. Use of other battery units can present a risk of injury and fire.

  • Page 10: Personal Protection Equipment

    TYING MACHINE FIXION 2 29_133084-G Lithium-ion battery. At the end of its life, the battery Tool compliant with Moroccan stan- must be returned to the authorized dards. distributor from whom it was pur- chased to be recycled in accor- dance with waste regulations.

  • Page 11: Description And Technical Characteristics

    TYING MACHINE FIXION 2 29_133084-G 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS 3.1. DESCRIPTION OF THE TOOL Complete carry-case Holster User guide and warranty card Charger unit with adapters Belt Disgorging scissors Small tie band spool with dispenser adaptable for use with the tool...

  • Page 12: Technical Features

    TYING MACHINE FIXION 2 29_133084-G Fixion 2 charger 24. Plug adaptor Australia 25. Plug adaptor UK 26. Plug adaptor Argentina 27. Plug adaptor USA-Japan 28. Plug adaptor Europe 29. Li-lon battery charger 30. Charger manual 3.2. TECHNICAL FEATURES Max tying capacity...

  • Page 13: Commissioning

    TYING MACHINE FIXION 2 29_133084-G 4. COMMISSIONING 4.1. FITTING THE HOLSTER TO THE BELT Detach the hook and loop strap (33). Pull the hook and loop strap (33) out of the belt loop (34). Install the holster (1) on the belt (4).
  • Page 14 TYING MACHINE FIXION 2 29_133084-G The reel clips pivot horizontally and vertically as re- quired. To switch the cover over to the left-handed version: Open the reel cover and unclip it. Reverse the cover and clip it onto the reel.

  • Page 15: Fitting The Adaptable Dispenser Loaded With The Small Tie Band Spool Onto

    TYING MACHINE FIXION 2 29_133084-G 4.3. FITTING THE ADAPTABLE DISPENSER LOADED WITH THE SMALL TIE BAND SPOOL ONTO THE TYING MACHINE. Remove the guard (14) on the back of the tying ma- chine. Place the guard (14) into the slot reserved inside the carrycase.

  • Page 16: Use

    TYING MACHINE FIXION 2 29_133084-G 5. USE 5.1. TYING MACHINE ON/OFF The tying machine is started and stopped with the start/stop button (20). 5.2. ADJUSTING THE TIGHTNESS OF THE TIE You can adjust the tightness of the tie to suit the type of wood you have to tie in place, by using the MODE button (23).
  • Page 17 TYING MACHINE FIXION 2 29_133084-G Fit the tie band spool in place: Match up the 4 straps with the 4 flats on the hub of the lateral dispenser (7) and make sure the tie end exits in the right direction.

  • Page 18: Reload The Small Tie Band Spool

    TYING MACHINE FIXION 2 29_133084-G 5.4. RELOAD THE SMALL TIE BAND SPOOL Block the rear flange and turn the front flange clock- wise to unlock it. Remove the front flange from the adaptable dis- penser (6). Place the tie band spool on the hub of the adaptable dispenser (6).

  • Page 19: Insert The Ties Into The Tying Machine

    TYING MACHINE FIXION 2 29_133084-G Cut and remove the 3 straps with the disgorging scissors (5). 5.5. INSERT THE TIES INTO THE TYING MACHINE Large tie band spool: Insert the tie cord, flat, into the opening (15) of the tying machine until the tie cord reaches the end stop.

  • Page 20: Grip

    TYING MACHINE FIXION 2 29_133084-G Start the tying machine (see Section 5.1, “Tying ma- chine on/off”). Press the trigger (19) (a single press) to push the tie through to the hook (12). Check that no scrap of tie cord remains trapped in the twister (18), do a practice tie test it, and remove this tie afterwards.
  • Page 21 TYING MACHINE FIXION 2 29_133084-G Correct position of the ties when using the small tie band spool. Incorrect position of the ties when using the small tie band spool. Correct position of wood in the tying machine. Note The wood must be positioned against the swivel dispenser (11) so the twister (18) can attach the tie correctly on the metal wire.

  • Page 22: End Of The Tie Band Spool

    TYING MACHINE FIXION 2 29_133084-G Incorrect position of wood in the tying machine. 5.7. END OF THE TIE BAND SPOOL Check the remaining level of ties on the tie band spool. When the marker for the end of the tie cord appears (there are no more ties in the tie band spool-holder) and there is only around ten centimetres of ties visible at the back of the tying machine, stop tying.
  • Page 23 TYING MACHINE FIXION 2 29_133084-G Manually remove the upper guide by hand (13). Extract the remaining tie cord with the disgorging scissors (5). Insert the upper guide (13) to the end stop, under the support roller. Clip the upper guide (13) into position.

  • Page 24: Charging The Tool

    Only the battery supplied with the charger must be used. Failing to comply with this instruction leads to premature deterioration of the battery, and increases the risk of physical injury. Pellenc S.A. declines all responsibility if the charger is used for an application other than that specified. Important Before using the battery for the first time at the start of a new season, it must be fully charged (99% steady).
  • Page 25 TYING MACHINE FIXION 2 29_133084-G When the battery is discharged, the tool stops auto- matically. The gauge display goes off and the buzzer beeps once (see Section 7.1, “Summary of charge indicator and beep messages”). Keep the charger (29) and tying machine (8) in a dry, ventilated and dust-free room at 10#25°C.
  • Page 26 TYING MACHINE FIXION 2 29_133084-G Connect the charger plug (29) to the mains. The charger LED lights up green. Caution Before connecting the charger to the mains, check that your power system characteristics comply with the specifications given on the charg- er (see Section 3.2, “Technical fea-...
  • Page 27 TYING MACHINE FIXION 2 29_133084-G When the gauge display (21) flashes, the battery is charging. Charging is complete when the message appears steadily on the gauge display (21). Once the battery is charged, first disconnect the charging cable from the charging connector (16) and then the mains plug from the charger (29).

  • Page 28: Maintenance

    PELLENC dealer. Important Have the tool serviced every 300,000 attachments or at least once a year by an authorised dealer PELLENC to ensure that necessary servicing is carried out sufficiently to ensure the longevity of your tool. Always store the tool clean and in a dry place, with the battery charged.
  • Page 29 TYING MACHINE FIXION 2 29_133084-G Turn on the tying machine (on/off button (20), see Section 5.1, “Tying machine on/off”). Open the swivel dispenser (11) with the lock/unlock button (10). Manually remove the upper guide by hand (13). Press and hold the trigger for 4 seconds to raise the support roller (31).
  • Page 30 TYING MACHINE FIXION 2 29_133084-G Using an air compressor, blow: In front of the twister (18) Interior of the tie cord inlet (15) At the upper guide (13), towards the front. Refit the support roller (31). Important Place the flat side of the support roller (31) against the connecting rod.

  • Page 31: Replacement Of The Upper Guide

    TYING MACHINE FIXION 2 29_133084-G 6.4. REPLACEMENT OF THE UPPER GUIDE Open the swivel dispenser (11) with the lock/unlock button (10). Manually remove and discard the upper guide (13). Insert the new upper guide (13) to the stop under the support roller.

  • Page 32: Replacing The Support Roller

    TYING MACHINE FIXION 2 29_133084-G Close the swivel dispenser (11). 6.5. REPLACING THE SUPPORT ROLLER Turn on the tying machine (on/off button (20), see Section 5.1, “Tying machine on/off”). Open the swivel dispenser (11) with the lock/unlock button (10). Manually remove the upper guide by hand (13).
  • Page 33 TYING MACHINE FIXION 2 29_133084-G Press and hold the trigger for 4 seconds to raise the support roller (31). Turn off the tying machine (start/stop button (20), see Section 5.1, “Tying machine on/off”). Using a flathead screwdriver, remove and discard the support roller (31).

  • Page 34: Replacing The Twister

    TYING MACHINE FIXION 2 29_133084-G 10. Close the swivel dispenser (11). 6.6. REPLACING THE TWISTER Open the swivel dispenser (11) with the lock/unlock button (10). Manually hold the twister. Loosen the screw with a flat screwdriver. Remove the screw. Remove the twister (18).

  • Page 35: Built-In Battery

    Important The battery must be replaced only by an approved distributor. The integrated battery must be checked by an authorised dealer PELLENC when the tool is serviced. 6.8. CHARGER This does not need any particular maintenance, but must be kept in a dry, ventilated, dust-free place, away from heat.
  • Page 36 TYING MACHINE FIXION 2 29_133084-G Important The charger must be checked by an authorised dealer PELLENC when the tool is serviced.

  • Page 37: Incidents And Troubleshooting

    TYING MACHINE FIXION 2 29_133084-G 7. INCIDENTS AND TROUBLESHOOTING 7.1. SUMMARY OF CHARGE INDICATOR AND BEEP MESSAGES Normal messages Battery charge level (0 to 99) fixed Battery empty, recharge immediately with 1 beep per minute Stop using, recharge immediately flashing with 1 beep every 10 seconds...

  • Page 38: Charger

    TYING MACHINE FIXION 2 29_133084-G If the tie breaks during tying: Adjust the tightness of the tie by reducing the number of twists, refer toSection 5.2, “Adjusting the tightness of the tie”. Important Never attempt to dismantle the tying machine, under penalty of cancellation of the warranty. Contact your authorised repair person.

  • Page 39: Storage And Transport

    TYING MACHINE FIXION 2 29_133084-G 8. STORAGE AND TRANSPORT 8.1. STORAGE • Store the tool in its carrying case away from heat, dust and moisture, and ensure that the tool is switched off. • Never store the tool at an ambient temperature above +45 °C.

  • Page 40: Consumables

    TYING MACHINE FIXION 2 29_133084-G 9.3. CONSUMABLES 9.3.1. TIES Name reference Box of 30 s/steel tie band spools 57053 Box of 30 paper 0.36 tie band spools 57052 Box of 30 STD tie band spools 57047 Box of 30 climate tie band spools...

  • Page 41: Warranties

    The warranty is fully integral to the product sold by PELLENC. 10.1.2.1.2. SPARE PARTS The commercial warranty also covers original PELLENCspare parts, excluding labour and to the exclusion of certain...

  • Page 42: Paid After-Sales Service

    PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products.
  • Page 43 Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and commercial warranty period. In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.

  • Page 44: Ec Statement Of Compliance

    TYING MACHINE FIXION 2 29_133084-G 11. EC STATEMENT OF COMPLIANCE 11.1. "EC" DECLARATION OF CONFORMITY: FIXION 2 MANUFACTURER/ENTITY AUTHORISED TO COMPILE THE PELLENC TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as:...
