2022/12/13 03:27

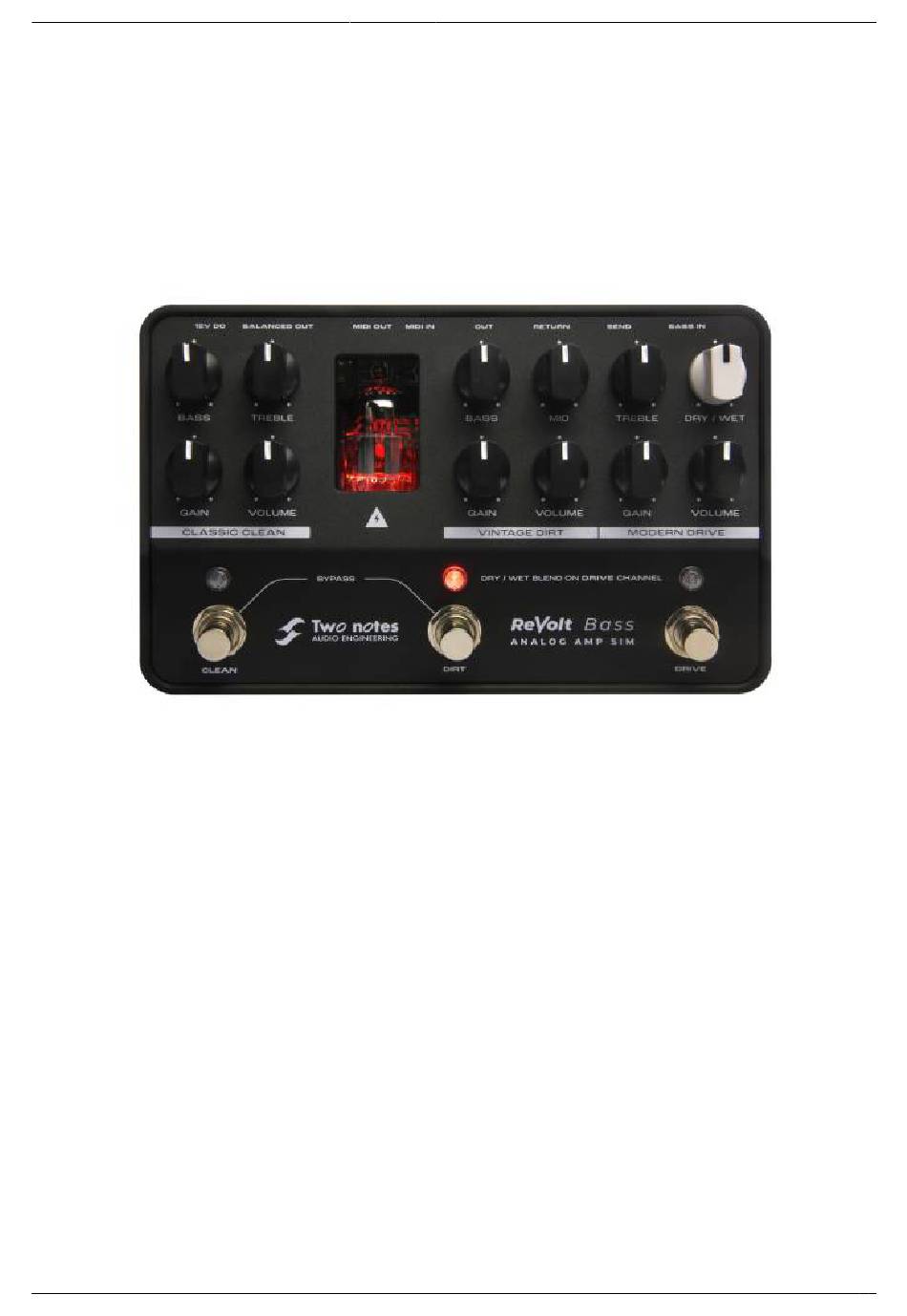

ReVolt Bass - User Guide
3-Channel All-Analog Bass Amp Simulator / DI
Thank you for purchasing ReVolt Bass, you're about to embark on a world of next-generation tonal
possibilities!
The bass: It's the bedrock of any performance, demanding nothing short of tonal excellence. Enter
ReVolt Bass, a forward-thinking all-analog 3-channel preamp primed to serve as the beating-heart of
your rig. The latest-iteration of Two notes' critically-acclaimed preamp solutions has been engineered
with a singular mission: to empower players with the ultimate in foundation tone. Forget any
preconceptions of a run-of-the-mill amp-in-a-box, preamp or DI: ReVolt Bass stands-apart. It's inspired
by a trio of iconic tones; It's fuelled by 200V and genuine tube power; It's born to assimilate into a
myriad of usage scenarios; it gives you edge when you need it, thanks to an integrated Drive Channel
Dry/Wet Blend. Two notes' gets it: Your Tone Matters. Why settle for anything short of perfection?
The complete electronic version of this manual, as well as the Two notes Audio Engineering software
and hardware products, are subject to updates. You can download the most recent versions of the
products on the Two notes Audio Engineering website.
This manual describes ReVolt Bass and provides instructions for its operation. It is highly
recommended that you read this document before using the product. The contents of this manual
have been thoroughly verified and it is believed to accurately describe the product at the time of
User's manuals - https://wiki.two-notes.com/
1/16
ReVolt Bass - User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bass and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for REVOLT Bass

  • Page 1 ReVolt Bass - User Guide 3-Channel All-Analog Bass Amp Simulator / DI Thank you for purchasing ReVolt Bass, you’re about to embark on a world of next-generation tonal possibilities! The bass: It’s the bedrock of any performance, demanding nothing short of tonal excellence. Enter ReVolt Bass, a forward-thinking all-analog 3-channel preamp primed to serve as the beating-heart of your rig.

  • Page 2: Important Safety Instructions

    ReVolt must never be used near a heat source, near a flame, in the rain, in damp areas or near any liquid of any sort. When transporting the unit, care needs to be taken to avoid any shocks that could result in damage requiring the assistance of a qualified technician.

  • Page 3: Package Contents

    Category of product: analog audio signal processor Product: ReVolt Test Manager: Guillaume Pille The Two notes ReVolt is certified to be compliant to the CE and FCC standards: EN 55103-1 : 1996 and EN 55103-2 : 1996. EN 60065 05/2002 + A1 05/2006.

  • Page 4: Warranty

    Last update: 2022/12/12 11:37 test_srom_bass https://wiki.two-notes.com/doku.php?id=test_srom_bass Household in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 5: Top Panel

    Inject some warmth and bite into your tone courtesy of a 12AX7 preamp tube running at high voltage DRY/WET to adjust the balance between the dry BASS IN signal and the MODERN DRIVE channel signal Expertly engineered Analog Cab Sim for seamless DI whether it’s in the studio or on stage 4-Cable mode, FX Loop and MIDI In/Out for effortless integration into existing setups...
  • Page 6 Function Adjusts the passive low frequency voicing section. \\As the knob is rotated the signal is BASS attenuated (down to -20dB) or boosted (up to +20dB), below 80Hz. As the knob is rotated your signal is attenuated (down to -20dB) or boosted (up to +20dB), TREBLE above 2.5kHz.

  • Page 7: Front Panel

    F - CAB SIM Enables the analog cabinet simulation applied to the BALANCED and Headphone outputs of ReVolt by engaging the CAB SIM switch (I Position). For ReVolt Bass, the analog simulation is inspired by an Ampeg SVT-810E cabine G - AUX IN Connect your music player here and control the playback level via the source’s controls.

  • Page 8: Back Panel

    The headphone output is a 1/8” TRS jack socket. This output is calibrated for headphones rated up to 100Ω. ReVolt’s signal is mono - the AUX IN can only be heard in stereo via headphones. The cabinet simulation applied with the CAB SIM switch can also be heard through the headphone output.

  • Page 9: Use Cases

    9/16 ReVolt Bass - User Guide 4 - OUT This unbalanced output (¼” TS jack) sends the dry signal of ReVolt’s channels - the CAB SIM is never applied to this output. 5 - MIDI IN/OUT The MIDI In/Out sockets are ⅛” TRS jack panel-mount connectors. One TRS 1/4” jack to MIDI type A adapter cable is provided with ReVolt.
  • Page 10 Connect ReVolt’s OUT to the amp’s effects loop return When ReVolt is bypassed, the dry bass signal passes through the amp’s input and all the amp’s features/tone shaping are unaltered by ReVolt’s all-analog processing. When a channel is activated on https://wiki.two-notes.com/...

  • Page 11: Specifications

    2022/12/13 03:27 11/16 ReVolt Bass - User Guide ReVolt, the signal passes through the instantiated ReVolt preamp and companion tone stack, feeding only the amplifier’s power amp. 3. Take Your Tone Further With Wall of Sound Connect the OUT output to your audio interface’s instrument input and combine ReVolt’s channels with Wall of Sound for enhanced cabinet simulation and additional post-processing effects.

  • Page 12: Using The Setup Menu System

    Last update: 2022/12/12 11:37 test_srom_bass https://wiki.two-notes.com/doku.php?id=test_srom_bass 1. Using the Setup Menu System The setup menu is entered by holding down footswitch A and providing power to the device. When the setup menu is entered, the “tube window” will show the “first page” color. Press footswitch B to go to the next page.

  • Page 13: Midi Learn

    LEDs. 3.2 MIDI Learn This menu can be used to set the MIDI PC number associated with each ReVolt Channel (including the Boost state per channel) and the Bypass Mode The Default MIDI PC values are as follows :...

  • Page 14: Midi Channel

    After one second, ReVolt will use the channel LEDs to flash the currently assigned PC number. The user can now send a valid MIDI PC message If Valid, the channel LED will remain solid for 1 second, then ReVolt will begin flashing the newly assigned PC number If Invalid - if the PC message is already assigned to another channel function - the channel LEDs will flash 3 times.

  • Page 15: Default State

    “PC Number” section. 5. Firmware Version / Factory Reset Using this setup menu allows the user to view the current Firmware version installed on the ReVolt unit as well as options to action a Factory Reset.
  • Page 16 Last update: 2022/12/12 11:37 test_srom_bass https://wiki.two-notes.com/doku.php?id=test_srom_bass From: https://wiki.two-notes.com/ - User's manuals Permanent link: https://wiki.two-notes.com/doku.php?id=test_srom_bass Last update: 2022/12/12 11:37 https://wiki.two-notes.com/ Printed on 2022/12/13 03:27...
