Summary of Contents for ray SM-A-80-CAT0

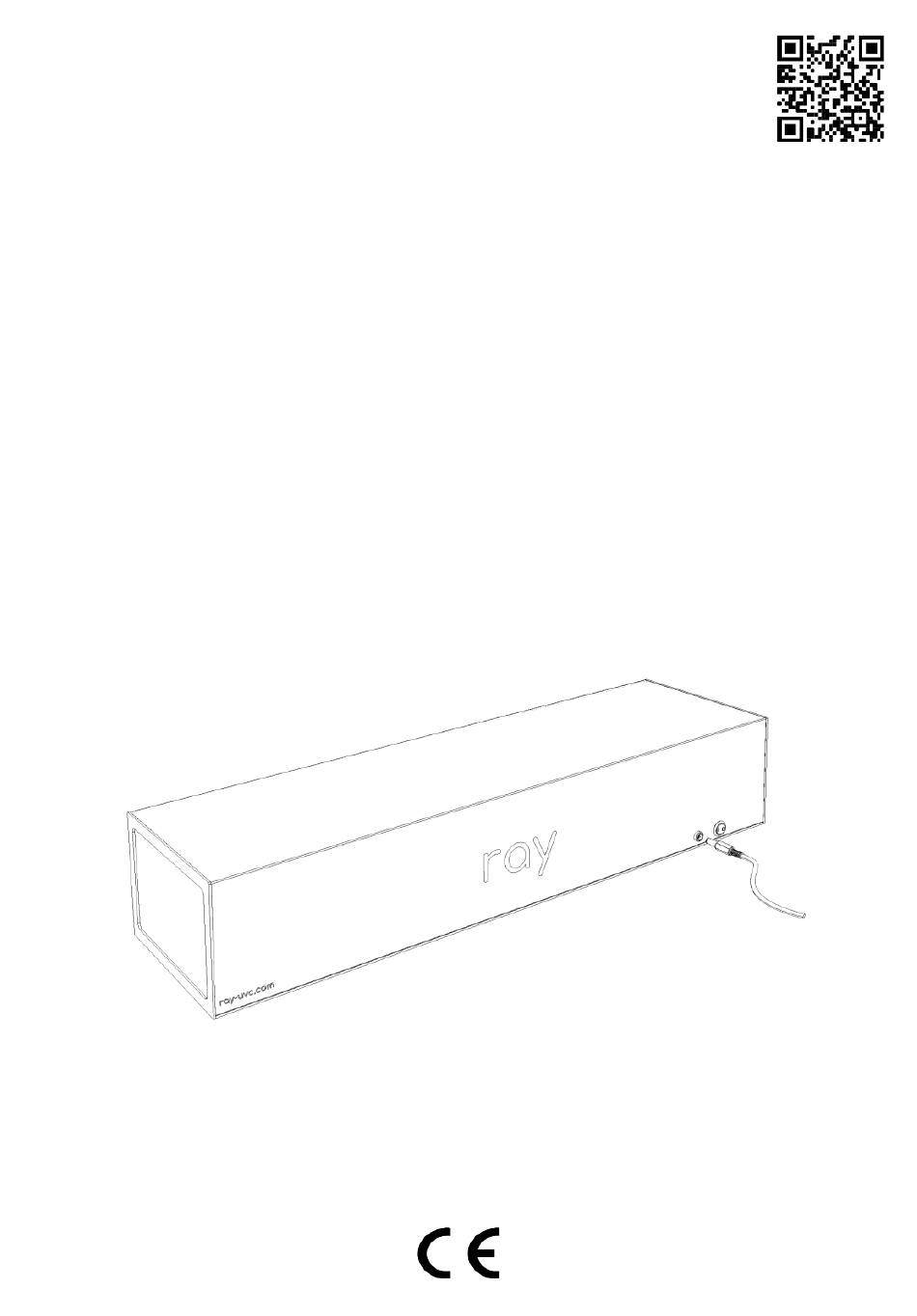

- Page 1 SineMargo GmbH CHE-365.018.248 Stockenstrasse 1201 8802 Kilchberg, Switzerland info@ray-uvc.com For documentation in other languages air sanitizer SM-A-80-CAT0 User guide Info-it@ray-uvc.it ray-uvc.com Rev.2b...
- Page 2 Sun light: it ● might increase its temperature reducing its lifetime do not use the device in proximity of heat sources if ● > 30°C: it might increase its temperature reducing its lifetime Info-it@ray-uvc.it ray-uvc.com Rev.2b...
-
Page 3: General Indications
-figure 1- are made of a special material: avoid any hit and rub to preserve them figure 1: Honeycomb grille present on both ends of ray 4. Do not plug or activate the device if wet or on a wet surface: the device uses extremely low voltage and there is no risk for electrocution yet it might get damaged. -
Page 4: Operation
12. Do not allow children to use the device without supervision. OPERATION Place ray on a stable surface with both ends free to allow air intake and release. To activate the device, as shown in -figure 2-: plug the round connector to the inlet of the device 2. - Page 5 Room Volume Room Surface Run-time ft^3 ft^2 m^3- m^2 – minutes 1400 40 - 16 - 2800 80 - 33 - 4200 120 - 50 - 5600 160 - 67 - table1: Indicative run times after room occupancy Info-it@ray-uvc.it ray-uvc.com Rev.2b...
-
Page 6: Cleaning And Maintenance
USE AND MAINTENANCE ATTENTION In order to ensure the best performances of ray, it is suggested to perform a check-up of the device after 2 years or 15’000 hours of functioning. Contact the local distributor or producer. CLEANING AND MAINTENANCE Unplug the device before any cleaning operation. -
Page 7: Box Content
USE AND MAINTENANCE BOX CONTENT 24V Power supplier support bracket A support bracket B screws M4 table2: Box content Info-it@ray-uvc.it ray-uvc.com Rev.2b... -
Page 8: Wall And Ceiling Installation
Make sure the wall or ceiling is solid enough to support the mounting of the device. Ray can be mounted on walls or ceilings using the provided brackets. - support brackets A - must be fitted on ray using the... - Page 9 USE AND MAINTENANCE figure 3: -support brackets A- fitted on ray support brackets B The - - must be fitted on the designated wall/ceiling using wall plugs suited for the specific surface. support brackets B The - - must be fitted parallel at a distance of 530mm as shown in figure 4.
- Page 10 (where the status LED is visible) at the bottom, as in figure 6. This will allow to optimize the efficiency exploiting the natural air movement. The status LED is placed inside the outlet grille. Top – Inlet grille Bottom – Outlet grille figure 6: vertical wall mount Info-it@ray-uvc.it ray-uvc.com Rev.2b...
-
Page 11: Technical Data
Voltage Power Working Temp Range 0°C ⟺ +30°C 32°F⟺86°F Volume Air Sanitized 80m^3/h – 47cfm Weight 3.5Kg – 7.7lbs DISPOSAL The user is responsible for the proper disposal of the device, in accordance with the local legislation. Info-it@ray-uvc.it ray-uvc.com Rev.2b...
