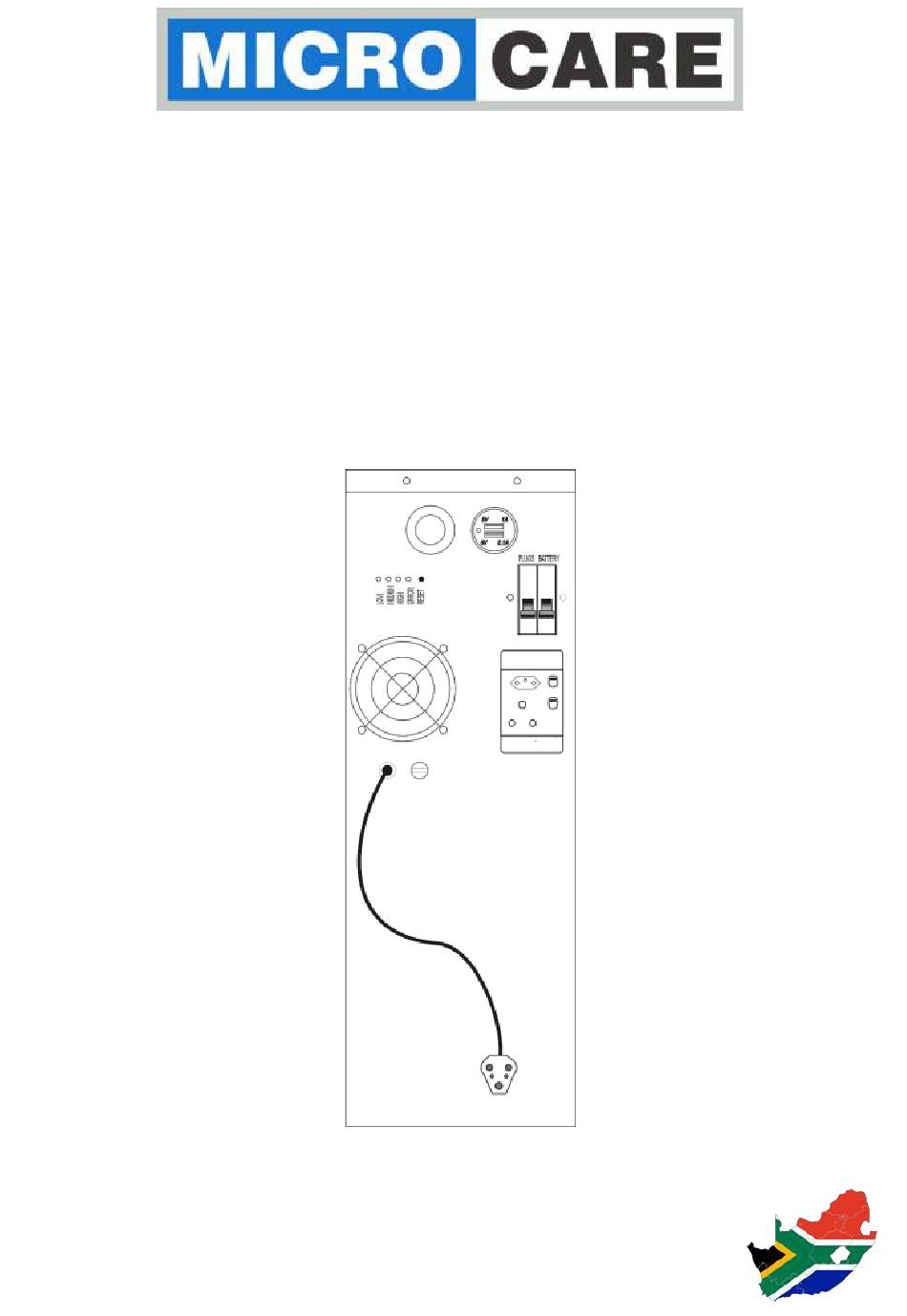

- Page 1 Pure Sine Wave UPS 600W-12V User Manual Manual Version: INV-600W-12V-2022-3...
-
Page 2: Table Of Contents
Reset Button ......................4 GENERAL WIRING INFORMATION ..................5 Battery Wiring ........................5 AC Connections ......................6 More Devices Connected ....................7 TROUBLE SHOOTING ......................8 SPECIFICATIONS ........................ 9 LIMITED CARRY- IN WARRANTY ..................10 REGISTRATION OF MY MICROCARE PRODUCT ............12... -
Page 3: Introduction
INTRODUCTION General Description The Microcare 600W 12V UPS is designed as an easy plug-in solution for loadshedding and backup power for domestic and business applications. When the grid returns with a fluctuating voltage, the UPS can delay to a set transfer time to avoid load damage. -
Page 4: Ups Overview
UPS OVERVIEW UPS Side View Figure 3-1 12V DC Outlet USB Charger Reset Switch Plug “AC” Circuit Breaker Battery “DC” Circuit Breaker Status LED’s 220V AC UPS Outlet Socket Fuse 220V AC Inlet Plug... -
Page 5: Status Led's & Reset Switch
Status LED’s & Reset Switch Y = Yellow LED G = Green LED R = Red LED 3.2.1 State of Charge Yellow LED solid on = Low State of Charge Yellow LED solid on = Medium State of Charge Green LED solid on = High State of Charge 3.2.2 Charging Green LED flashing = Battery Charging Note the battery only charges when ESKOM is present... -
Page 6: General Wiring Information
GENERAL WIRING INFORMATION • Familiarize yourself with the content of the manual following before commencing with the wiring. Battery Wiring • Ensure that the Battery and Plug circuit breaker is in the off position. • UPS AC inlet plug is unplugged form the wall socket. •... -
Page 7: Ac Connections
AC Connections • Turn the Battery Circuit Breaker to the “ON” position • Turn the Plug Circuit Breaker to the “ON” position • Connect the device plug TV “AC Load egg: TV” into the UPS plug socket and switch the socket to the “ON” position. •... -
Page 8: More Devices Connected
More Devices Connected... -
Page 9: Trouble Shooting
TROUBLE SHOOTING The AC Circuit Breaker Trips UPS is overloaded Reduce the load by unplugging some devices. Press the AC Circuit breaker button to reset the UPS The DC Circuit Breaker Trips UPS is overloaded Reduce the load by unplugging some devices Turn the DC circuit breaker to the on position The red LED is solid on UPS is overloaded... -
Page 10: Specifications
SPECIFICATIONS SPECIFICATIONS Model 600W 12V Output AC Voltage 230VAC AC Amps 2.6A Rated Power 600W Surge Power 800W OUTPUT Wave Form Pure Sine AC Regulation +/- 5% < 3% Frequency 50Hz DC Voltage DC Amps Max 100A Voltage Range 11-14V... -
Page 11: Limited Carry- In Warranty
Removal of serial numbers may void the warranty. All remedies and the measure for damages are limited to the above. Microcare shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. - Page 12 3. The reason for the return. 4. Microcare must be notified within 7 days of your intention to return the goods which were purchased. 5. All items returned will be inspected prior to refund. If our technicians are not immediately available, the goods will have to be left with us until such time as a technician is available to check the items.
-
Page 13: Registration Of My Microcare Product
REGISTRATION OF MY MICROCARE PRODUCT Product Serial Number: Product Description: Date Purchased From Whom was the Inverter Purchased: Company Name Contact Person Contact Number E-mail Address Installation Company Information: Company Name Contact Person Contact Number E-mail Address Details of Product Owner Name &...
