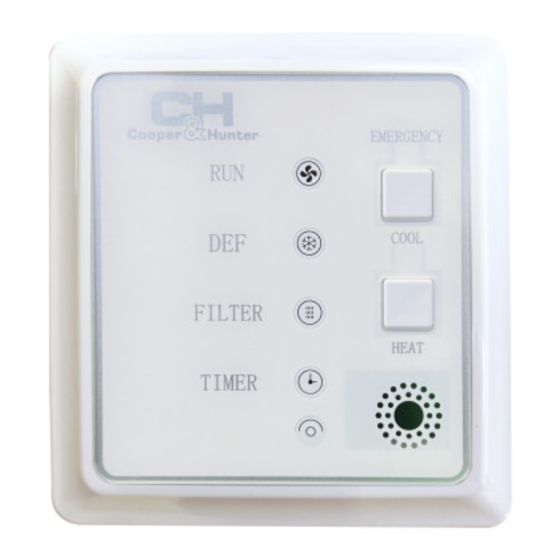

Operation & Installation Manual for Wireless Receiver Kit

Model:

SPWRK-V02

Do NOT turn ON the power source, unless the preparation for test running is completed.

G Read this manual carefully before installation work for correct performance.

G Read this manual together with the "Installation & Maintenance Manual" for the indoor unit and

ireless Remote Control Switch.

is the blank box for checking. Mark the blank box

1. Before Installation and Operation

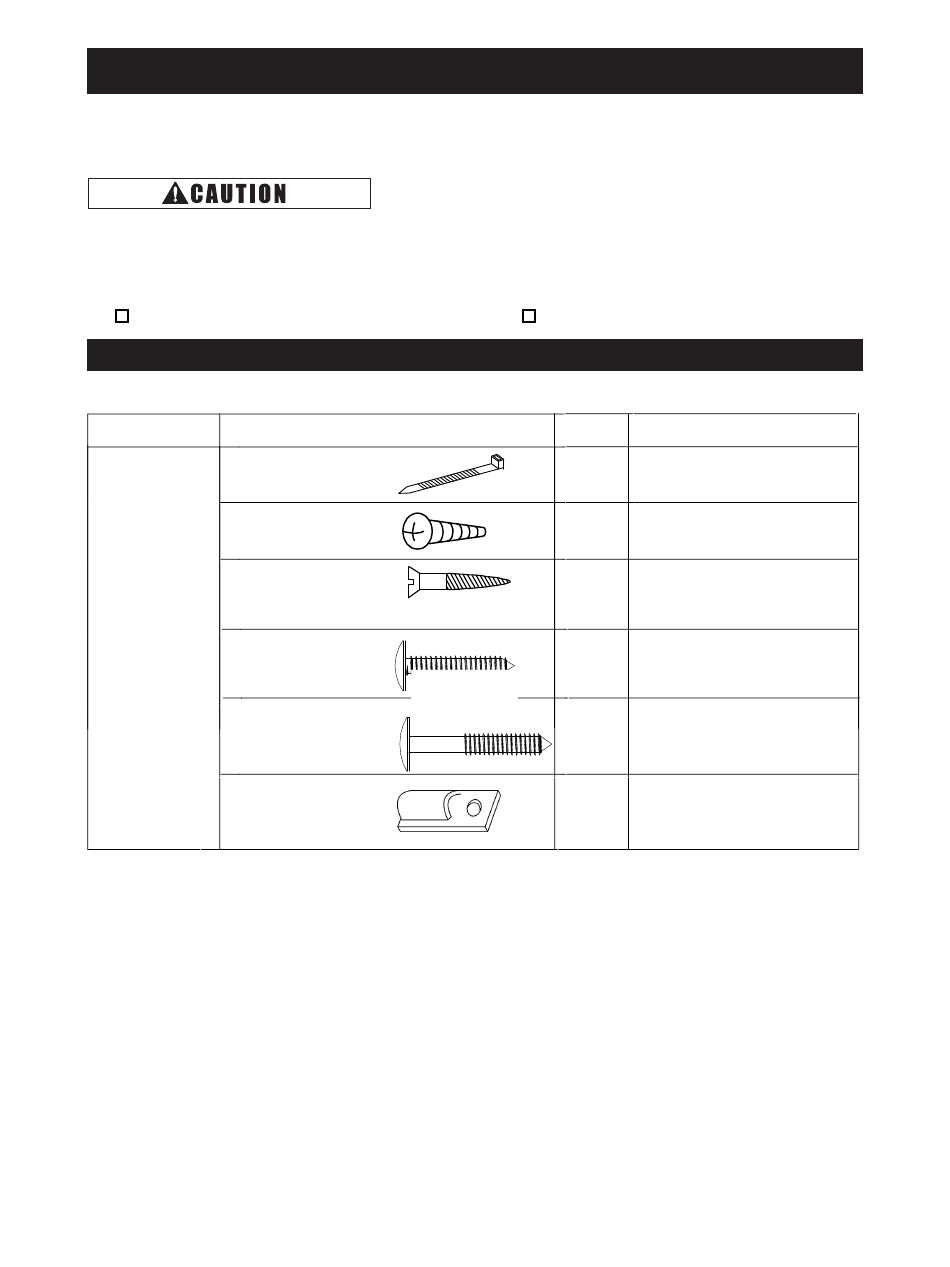

1) This packing contains the following parts. Check the contents and number of the parts.

Model

Band

Screw

SPWRK-V02

Screw

Clamp

Name

for the item after checking.

Q'ty

Remarks

For Fixing Cable

For Fixing Receiver Kit

For Fixing Clamp

For Fixing Receiver Kit

or Fixing Cable

Table of Contents

Need help?

Do you have a question about the SPWRK-V02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooper & Hunter SPWRK-V02

Page 1 Operation & Installation Manual for Wireless Receiver Kit Model: SPWRK-V02 Do NOT turn ON the power source, unless the preparation for test running is completed. G Read this manual carefully before installation work for correct performance. G Read this manual together with the “Installation & Maintenance Manual” for the indoor unit and ireless Remote Control Switch.
Page 2 2. Installation of Wireless Receiver Kit SPWRK-V02 NOTE: Install the receiver kit onto the wall or ceiling near the indoor unit. Slot Cover 1) Install the wireless receiver kit and indoor unit at the same time. 2) In case that the wireless receiver kit is installed after installing the indoor unit, turn OFF the power source of the indoor unit.
Page 3 (5)Remove the cover of indoor unit electrical control box and connect the cable to the terminals A and B of the terminal board (white). After connecting the cable, bind up the remaining cable length portion by band (Factory-Supplied) and put them in the electrical control box. Printed Circuit Board Electrical Box for Indoor Unit...
Page 4 3. Optional Functions SPWRK-V02 1)Optional Function Setting Open the lid of cover so that the following functions are available. Hole for Cable Switch "COOL" Switch "HEAT" EMERGENCY COOL FILTER HEAT TIMER Dip Switch (SW3) (Factory Setting) Printed Base Cover Circuit Board...
Page 5 4. Others 1) Proceed the “TEST RUN” mode by using “Operation & Installation Manual” for the wireless remote control switch. # Turn OFF all power sources before setting the dip switches. 2) Emergency Operation Setting (Refer to the figure of the item 3 “Optional Functions”.) In case that wireless remote control switch is unusable by batteries shortage, etc., perform as follows.
Page 6 08.2022...
