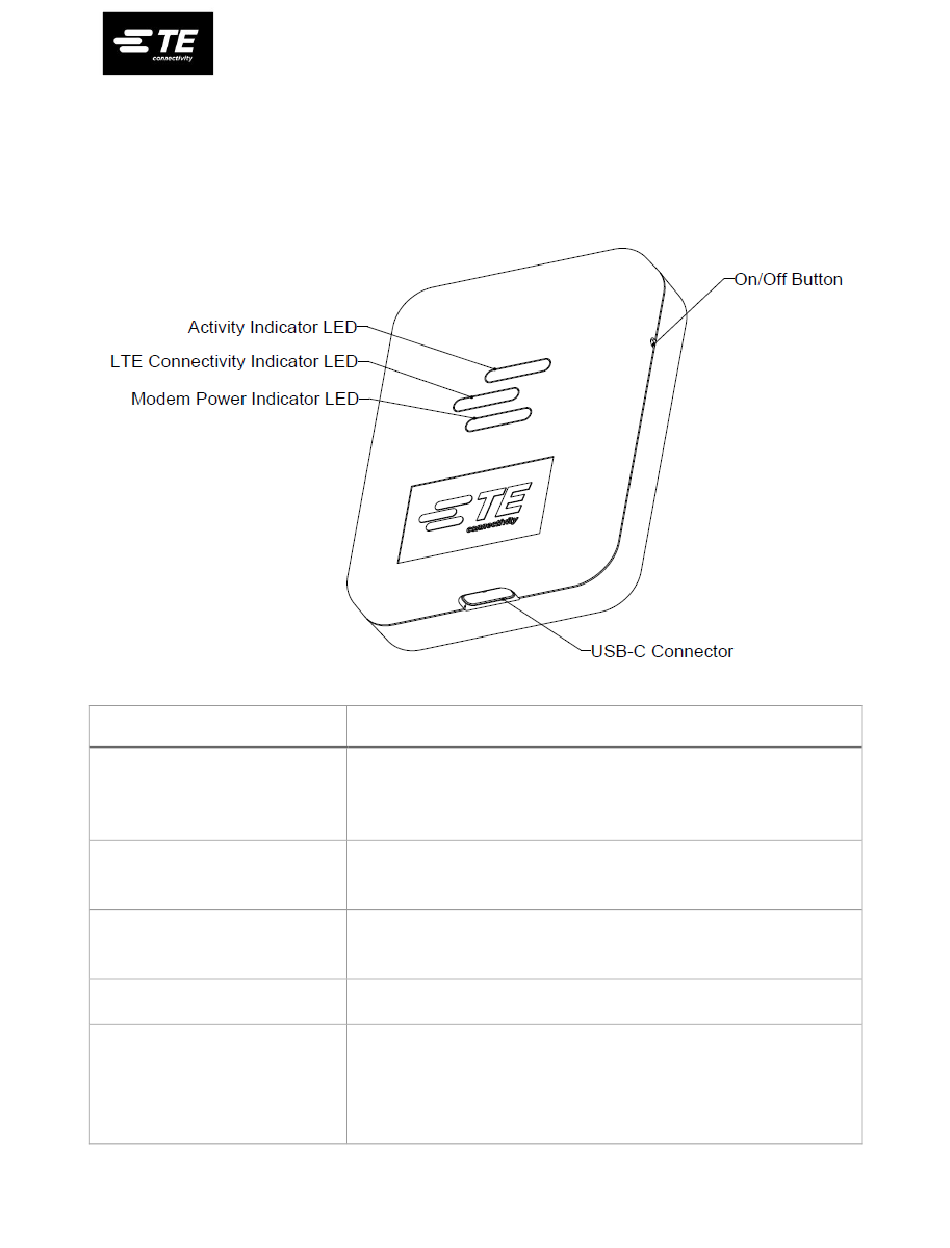

Type
Activity Indicator LED
LTE Connectivity Indicator LED
Modem Power Indicator LED
USB-C Connector
On/Off Button
LEMBAS LTE/GNSS USB Modem
Description
This LED can show 3 different states:
•
Searching network: Slow blink (200ms high / 1800ms low)
•
Idle: Slow blink (1800ms high / 200ms low)
•
Transferring data: Fast blink (125ms high / 125ms low)
This LED can show 2 different states:
•
Connected to LTE network: High
•
Not connected to LTE network: Low
This LED can show 2 different states:
•
Powered on normally: High
•
Not powered on normally: Low
This is where the USB-C connector of the USB-C to USB-A cable
assembly will plug in to
This button safely powers the LEMBAS USB Modem on or off while
connected to the SBC:
•
Press and hold for 2 seconds to turn off
•
Press once to turn on
*You may use a paper clip or a SIM Ejector pin to access this button
