Summary of Contents for American Fitness YQ-T4011

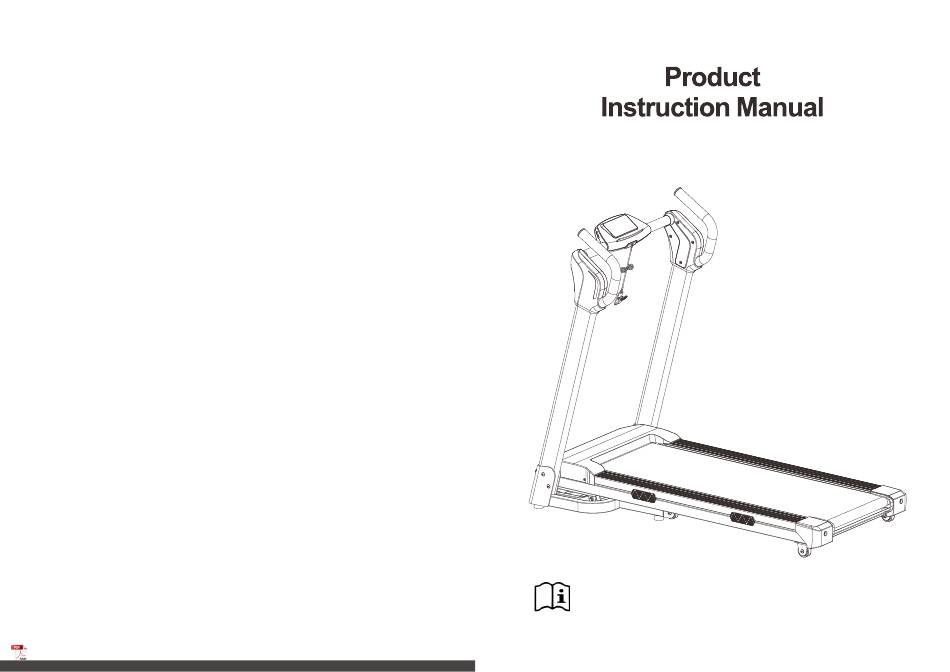

- Page 1 Model NO:YQ-T4011 Please read the instructions carefully before using...
-
Page 2: Table Of Contents
Table of contents 01 02 Safety Precautions & Warning Instructions 1. Safety Precautions & Warning Instructions NOTE: Please read the instruction carefully before using and pay attention to the following safety precautions. 1. The treadmill is suitable to be placed indoors to avoid moisture, splash water on the treadmill and any foreign matter. -
Page 3: Safety Precautions & Warning Instructions 03
Safety Precautions & Warning Instructions 03 04 Safety Precautions & Warning Instructions WARNING! ENFORCEMENT! ◆ Do not use or keep in damp places such as outdoors or near the bathroom, or in places where water drops are caught. Please be sure to discuss with a professional doctor before using if you are receiving medical ◆... -
Page 4: Product Introductions
Safety Precautions & Warning Instructions 05 06 Product Introductions Never use it with wet hands. 2. Product Introductions ◆ Do not pull out or insert the power plug with wet hands. — It's likely to cause electric shock or injury. Controller Display Pull out the power plug. -
Page 5: Installation Procedure
Product Introductions 07 08 Installation Procedure Technical Parameters: 3. Installation Procedure AC 110V 60Hz Working voltage Max load 100Kg Outsize L1319*W666*H1133MM ① Running area 400*1100 mm Motor power 1.0 HP Speed 1.0-14.0km/h ③ Incline 0-15% Control method Console ② Weight 45kg 1) First, open the package, take the main body out of the box, and lay it flat on the carpet or Spare parts list:... - Page 6 Installation Procedure 09 10 Installation Procedure 7) As shown in step ⑧ of the figure below, draw the red “Safety lock” into the yellow box on the 4) As shown in the right figure, lift the running console and the installation is completed. Plug in, turn on the power switch below the front end platform until it is stuck in the air spring sleeve.
-
Page 7: Sports Advice And Guidelines
Installation Procedure 11 12 Sports Advice and Guidelines 6. Sports Advice and Guidelines 3. After finishing the folding treadmill, fix one side of the base frame with your feet, and pull the handlebar back with both hands to tilt the machine backward. -
Page 8: Operating Instructions
Sports Advice and Guidelines 13 14 Operating Instructions 7. Operating Instructions Display Upper window of the console: Main window (Time, Calorie, Distance) +Step counting Window. MainWindow 1. Stretch Down Bend your knees slightly and slowly bend your body to relax your back and shoulders. And try to touch your toes with your hands. -
Page 9: Common Failures And Troubleshooting 15
Common Failures and Troubleshooting 15 Product Maintenance Error messages on electronic meter and elimination methods. Plus and Minus button function switch Short press the target key to switch between speed and slope adjustment functions. Short press Questions Possible Causes Maintenance Methods the target key and when the main window displays the incline figure, press plus or minus key to The signal line is not plugged it. -
Page 10: Product Maintenance 17
Product Maintenance 17 18 Service Commitment 3. Adjust tightness of running belt. All treadmills shall be adjusted for tightness before delivery and Please adjust the right bolt clockwise or left bolt counterclockwise if the running belt is right after installation. However, the running belt may be loosened after a period of use. deviation.
