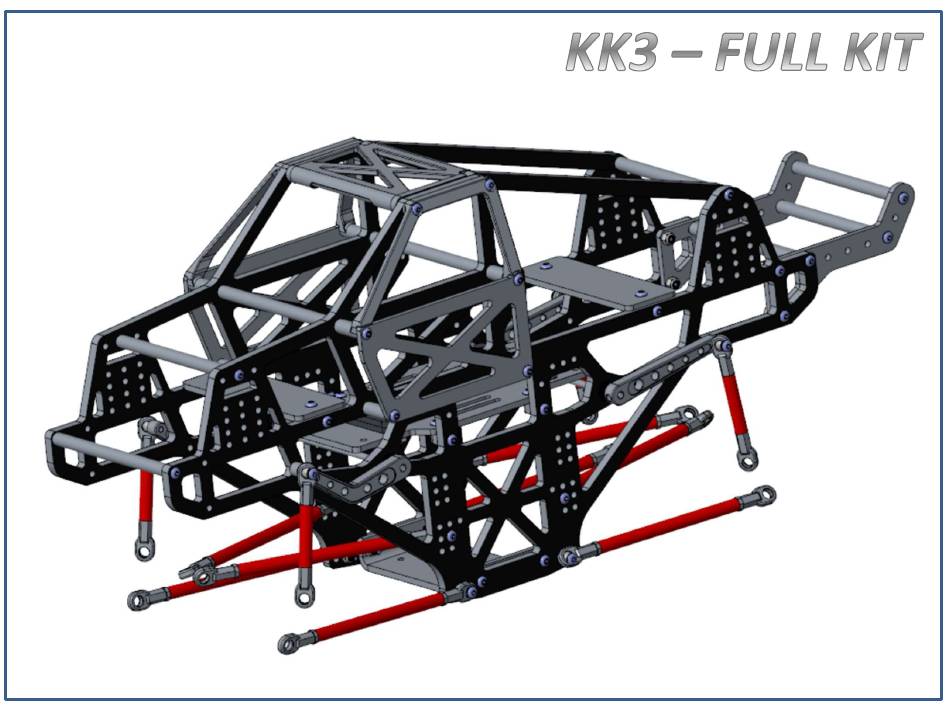

Summary of Contents for SOUTHWEST MONSTER KK3 FULL KIT

  • Page 2 PART AR60 Kit Clod Kit FreestyleRC Kit Chassis Plate Battery Tray Transmission Tray Electronic Tray Roll bars 85mm Crossmember 72mm Crossmember Universal Block Spacer (1/4”) (for SCS Transmission) 4-Link Kit FreestyleRC Swaybar kit Swaybar connector rods Swaybar bushings M3 x 20 Rounded Head Screw M3 x 16 Rounded Head Screw M3 x 12 Rounded Head Screw M3 x 8 Rounded Head Screw...
  • Page 3 CAGE KIT - PARTS LIST Side plate Angles cage brace Cage top plate Spacer (11/16”) M3 x 20 Rounded Head Screw M3 x 30 Rounded Head Screw M3 x 35 Rounded Head Screw M3 Nylon Locknut WHEELIE BAR KIT - PARTS LIST Side plate 78mm crossmember M3 x 12 Rounded Head Screw...
  • Page 4 Cage 72mm Crossmember Roll Bar Wheelie bar Side Plate Electronic Tray Swaybar Bushing 85mm Crossmember Battery Tray Transmission Tray...
  • Page 5 Step 1: Crossmember and Transmission Tray Installation Loosely attach two 85mm crossmembers to one side using M3 screws. • Attach transmission tray to one side using M3 screws and locknuts. • Transmission tray is symmetric. • M3x12 Screw M3x16 Screw Transmission Tray 85mm Crossmember...
  • Page 6 Step 2: Battery Tray Subassembly Attach four Universal Blocks to the battery tray using M3 screws. • • Battery tray can be setup for standard and shorty battery packs. M3x8 Screw Universal Standard Shorty Block Battery Battery Pack Pack Step 3: Battery Tray Installation •...
  • Page 7 Step 4: Second Side Plate Installation Attach other side plate with M3 screws for crossmembers and • battery tray, and M3 screws and nuts for the transmission tray. Step 5: Electronic Tray Subassembly Attach two Universal Blocks to each electronic tray using M3 screws. •...
  • Page 8 Step 7: Cage Top Plate Subassembly Slide an 85mm crossmember through the front section of the top plate. • Rear Slide an 85mm or 72mm crossmember through the rear section of the • top plate. See rollbar installation steps for identifying which crossmember to use •...
  • Page 9 Step 9: Roll Bar Installation Roll bars can be installed in an up position or down position. • Roll bars are handed. Refer to image for orientation. • Up position requires cutting of the body to fit properly. This allows the roll •...
  • Page 10 Step 10: Cage Installation Install angled cage brace side first. Use M3 hardware to tighten top joints first. • Attach cage side plate by bolting through the lower connections of the angled cage brace. Note the front and read hardware •...
  • Page 11 Step 11: 4-Link Installation Below are the hole-to-hole link lengths for each setup. Verify link lengths before proceeding. • Link AR60 Axles Clod Axles FreestyleRC Axles Upper 125mm 138mm 118mm Lower 118mm 118mm 138mm Step 12: 4-Link Installation Upper Links: Clod Identify connection points on the chassis.
  • Page 12 Clod Dual Shock Mount Instructions Step 14.1: Drill 1/8” hole in plastic axle tube. The shock bracket can be • used as a template to mark the lower hole. Use as drill template Drill Hole Axle Mount Spacer (SH) Axle Mount Step 14.2: Metal Brace Slide axle metal brace though shock bracket and screw metal...
  • Page 13 AR60 Dual Shock Mount Instructions Step 15.1: Install one dual shock bracket at a time. Place bracket on • outside of axle link mount. Step 15.2: • Insert screw through top bracket hole and through the axle link mount. While sliding through, insert the 5/16” spacer and fasten using a locknut.
  • Page 14 Step 16: Swaybar Installation Remove set screw(s) from the swaybar arm, slide in torsion rod with flat • spot oriented towards the set screw(s). Apply blue thread locker to the AR60 Axles Clod Axles FreestyleRC Axles set screw(s) and install tight. Slide swaybar and torsion rod through the bushings, and repeat the first •...
  • Page 15 Wheelie Bar Instructions Step 17.1: Loosely attach two 78mm crossmembers to one wheelie bar plate using M3 screws. • • Attach the second wheelie bar plate using M3 screws 78 mm Crossmember M3x12 Screw M3x12 Screw Step 17.2: Slide wheelie bar assembly into the chassis and align the holes shown below. •...
  • Page 16 KK3 AR60 Setup Suggestion ESC/Receiver ESC/Receiver Row Upper Connections 4” Shocks 15wt oil (1) shock w/spring and oil (1) shock w/o spring and w/oil coating KK3 Clod Setup Suggestion or 2 Row Upper Connections 4” Shocks 15wt oil (1) shock w/spring and oil (1) shock w/o spring and w/oil coating Vertical servo mount only...
  • Page 17 KK3 Center Transmission AX10 FreestyleRC FreestyleRC Transmission SCS Transmission Mounting Holes Mounting Holes ¼” Spacers Note sensored motor orientation AX10 Holes FreestyleRC Transmission SCS Mounting Holes Mounting Holes...
