USER guide

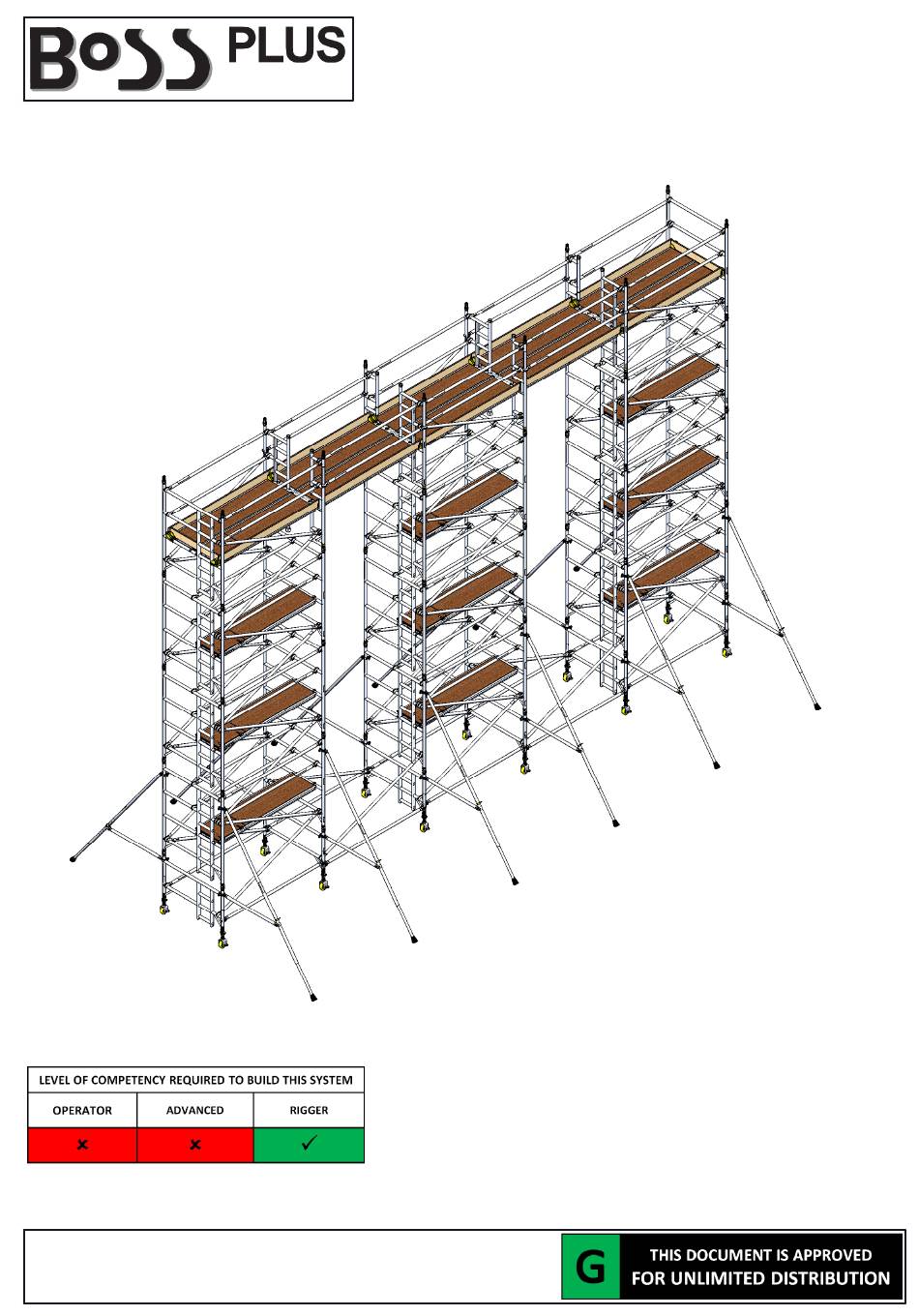

BoSS
PLUS
LINKED PREFABRICATED
TOWER SCAFFOLD
3T Method
BS1139-6:2014
This guide explains the generic methodology for safe assembly of a prefabricated tower scaffold system and
should be used in conjunction with the appropriate corresponding BoSS scheme drawing, EN1004 mobile
access tower user guide and product datasheet.
BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD
©
YOUNGMAN GROUP LTD - 29/01/2015
FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK
www.youngmangroup.com/brands/BoSS-towers
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Youngman Boss Plus
Summary of Contents for Youngman Boss Plus
- Page 1 This guide explains the generic methodology for safe assembly of a prefabricated tower scaffold system and should be used in conjunction with the appropriate corresponding BoSS scheme drawing, EN1004 mobile access tower user guide and product datasheet. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK www.youngmangroup.com/brands/BoSS-towers...
- Page 2 FILE: S140105 FILE: S140105 CONTENTS Safety First 3 - 6 Build Method 7 - 12 BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK www.youngmangroup.com/brands/BoSS-towers...
-
Page 3: Safety First
The law requires that personnel erecting, dismantling, altering or inspecting towers must be competent. Assemblers of this BoSS Plus product must have a copy of this guide and copy of the appropriate corresponding scheme drawing. For further information on the use of mobile access and working tower visit our website at www.youngmangroup.com or consult the PASMA website at www.pasma.co.uk. -
Page 4: Maintenance - Storage - Transport
FILE: S140105 SAFETY FIRST Scheme Drawings This user guide must be used in combination with the appropriate corresponding scheme drawing. Below is a list of the current Youngman approved scheme drawings: DRAWING NO. DESCRIPTION MP140710 CLIMA & BoSS INFINITY MULTIPURPOSE FRAME - 3T - TOP LEVEL WORKING ONLY MP140711 CLIMA &... - Page 5 Scheme drawing and the Handover Certificate. They must be clearly visible so that end users are aware of the conditions of safe use. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD ©...
-
Page 6: Assembly Procedure
Ensure interlock clips on frame are fitted correctly. moving onto the deck levels. memebrs are in the 'locked' position. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK... -
Page 7: Build Method

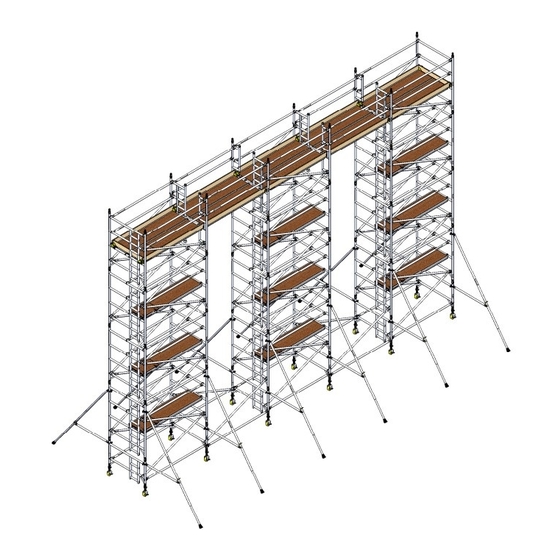

Build the standard BoSS tower with the platform height of 6.0m. Refer to BoSS user guide. Ensure that the 3T method is followed. The procedure illustrated shows 8.2m platfrom height tower starting with a 2 rung frame. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD ©... - Page 8 Build two more towers and space them equally using Horizontal Braces which link all towers. Fit Diagonal Braces between towers, as shown on the appropriate corresponding scheme drawing. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK www.youngmangroup.com/brands/BoSS-towers...
- Page 9 Ensure all interlock clips are engaged. Fit Diagonal Braces between 13th and 15th rungs, as shown. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK...
- Page 10 Ensure all wind locks are engaged. Fit Diagonal Braces between 15th and 17th rungs, as shown. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK...
- Page 11 Do not climb the deck until it is fully guardrailed. Fit Horizontal Braces to link the towers, as shown. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK www.youngmangroup.com/brands/BoSS-towers...
- Page 12 To dismantle the tower: Simply follow the assembly steps in reverse, ensuring that the 3T method is followed. BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK...
-
Page 13: Pre-Use Safety Inspection Checklist
Services +44 (0) 1621 745900 The Causeway, Maldon, sales@youngmangroup.com Essex. CM9 4LJ. www.youngmangroup.com United Kingdom BoSS IS A REGISTERED TRADEMARK OF YOUNGMAN GROUP LTD © YOUNGMAN GROUP LTD - 29/01/2015 FOR UP TO DATE INFORMATION ON THIS PRODUCT CHECK www.youngmangroup.com/brands/BoSS-towers...
