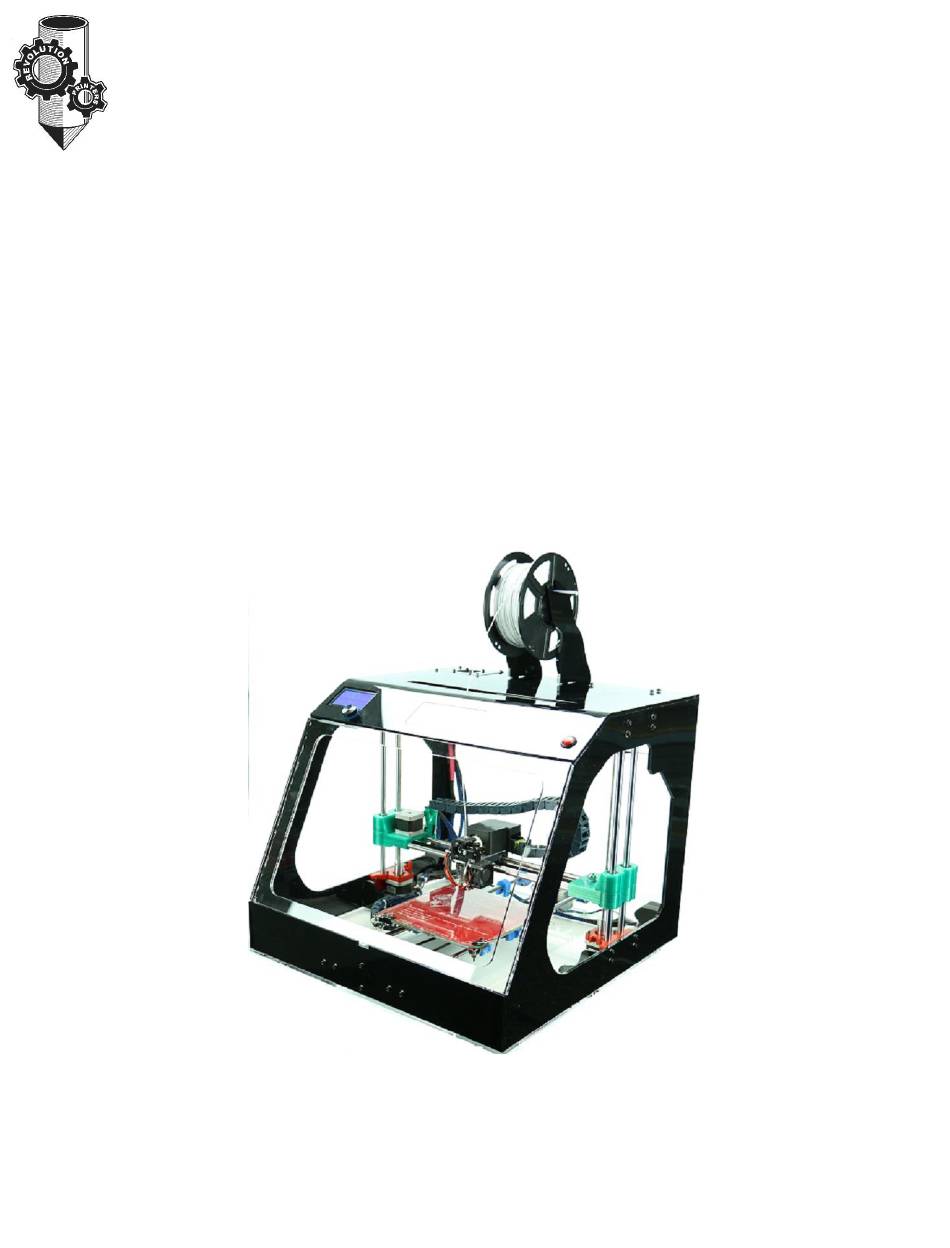

- Page 1 Revolution 3D Printers INFINITY 3D Quick Print Guide...
- Page 2 Revolution 3D Printers INFINITY3D This guide provides step-by-step instructions to quickly and easily produce prints on the INFINITY3D printer. 1. Plug the included power cord into the receptacle on the rear of the printer. 2. Insert both spool holder arms into the slots on rear and top of the printer so they seat securely.
- Page 3 Revolution 3D Printers INFINITY3D 4. Place the filament spool onto the spool holder arms, oriented so that filament feeds from the top of the spool. 5. Prepare a glass build plate by installing blue tape. 6. Place the glass build plate onto the heated bed tape side up, and secure it with four plate clips as pictured as close to the corners of the heated bed as possible.
- Page 4 Revolution 3D Printers INFINITY3D 7. Turn on the printer using the power switch located on the right hand front of the machine. The graphic display panel will display several logos, and then the home status screen. Refer to the operations manual for display panel menus and further information.
- Page 5 Revolution 3D Printers INFINITY3D 10. Rotate the selector knob to highlight Preheat PLA or Preheat ABS depending on the material you are using, and click the knob again to select it. 11. Select Preheat PLA 1 or Preheat ABS 1 and click to select it. You will be returned to the status screen.
- Page 6 Revolution 3D Printers INFINITY3D Filament Installation or Replacement Steps: 13. Trim the end of the filament to create a clean end. 14. Straighten the last 20mm of filament by warming with your hands and taking out the natural curve of the filament.
- Page 7 Revolution 3D Printers INFINITY3D 17. Press down on the filament to extrude a small amount of filament, which ensures that the hot end is working correctly and is not clogged. 18. Squeeze the filament drive door completely closed and secure it with the drive door lock knob.
- Page 8 Revolution 3D Printers INFINITY3D 21. Select the desired GCode file, and the print will begin automatically when it is selected. 22. Wait for your print to complete. WARNING! HOT SURFACE/PARTS! ALLOW TO FULLY COOL BEFORE HANDLING. WARNING! DO NOT REACH INSIDE THE PRINTER WHILE OPERATING! MOVING PARTS CAN CRUSH/CUT! ALWAYS KEEP HANDS CLEAR OF MOVING PARTS WHILE OPERATING.
