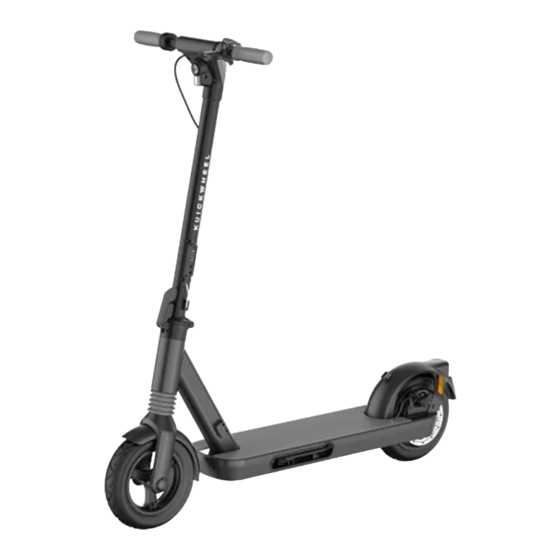

Model A
Kuickwheel reserves the right to make changes to the vehicle,
release firmware updates, and update this manual at any time.
Visit www.kuickwheel.com to download the latest user materials.
You must install the App to follow the new rider tutorial, activate
your vehicle, and obtain the latest updates and safety instructions.
www.kuickwheel.com
Advertisement
Table of Contents
Related Manuals for Kuickwheel ZIMO A
Summary of Contents for Kuickwheel ZIMO A
- Page 1 Model A Kuickwheel reserves the right to make changes to the vehicle, release firmware updates, and update this manual at any time. Visit www.kuickwheel.com to download the latest user materials. You must install the App to follow the new rider tutorial, activate your vehicle, and obtain the latest updates and safety instructions.
-
Page 2: Table Of Contents
WELCOME! Contents Thank you for choosing ZIMO electric scooter! To ensure safe and satisfactory riding, please read and understand the contents of this manual carefully, and keep this manual for future reference. 1. Packing List 2. Product Overview 3. Assembly 4. -
Page 3: Packing List
2 Product Overview 1 Packing List Throttle Brake lever Dashboard Grips Headlight User Manual x 1 Turning bell Scooter x 1 Stem tube User Manual Chain lock Folding hook (Optional) Silicone Footplate Rear mudguard Folding mechanism Taillight Bolts x 4 Allen wrench x 1 Charger x 1 Reflector... -
Page 4: Assembly
Pushing mode 3 Assembly Lighting Over-temperature Battery power level Speedometer Cruising total distance Power button Dashboard Controls Power button: Short press to power on. Long press for 3 seconds to power off. When powered on, double-press to turn on/off the lights. Single-press to switch the riding modes. Long press for 2 seconds to enter Pushing Mode. Pushing Mode: Speed≤5km/h, headlight and taillight are always on. -
Page 5: Charging
4 Charging Open the charging port cover Put the DC connector plug into the charging port Charger indicator: Red - charging, Green - fully charged. 3.Use the Allen wrench in the box to tighten the bolts 4.After the installation, test the vehicle 1.Ensure your scooter is turned off before you attempt to charge the battery. -
Page 6: To Ride
5 To Ride 3.Put your other foot on the footrest to keep both feet 2.Stand on the footrest with one foot and stable. Press the throttle on right hand to speed up push off with your other foot to start gliding. when you are balanced. -
Page 7: Folding And Unfolding
6 Folding and Unfolding 7 Chain lock Instruction Tip: The following operations can be performed only after powering off. Folding latch Safety buckle Hook 1.The initial password is 0000, and the 2.For example, the new password is middle column is the password area. "9999". -
Page 8: Avoid Potential Safety Hazards
8 Avoid Potential Safety Hazards Avoid contacting obstacles with the tire/wheel. DO NOT press the throttle when walking with the scooter. DO NOT ride over speed bumps, thresholds, or other bumps at HIGH Do not recommend using when raining SPEED. Please keep medium and low speed (5-10km/h) on rough roads. or freezing. -
Page 9: No Dangerous Actions
9 No Dangerous Actions DO NOT ride on public roads, DO NOT rotate the handle violently DO NOT ride up and down stairs or jump over obstacles. DO NOT trample the rear fender. motorways, or highways. while driving at high speed. The scooter is for one rider only. -
Page 10: Safety Instructions
10 Safety Instructions there is enough space to pass through. ★ Do not ride in the dark place, if necessary, reduce the speed and stay alert. Please understand that you can reduce the risks by following all the instructions and warnings in this manual, but you ★... -
Page 11: Maintenance
11 Maintenance Adjust Disc Brake If the surface of the scooter is stained, use a soft cloth dipped in a little water or detergent to wipe it, then clean it with the wet cloth. Do not use alcohol, gasoline, kerosene, or other corrosive, volatile chemical solvents to clean, otherwise it will seriously damage the appearance and internal structure of the scooter. -
Page 12: Specifications
12 Specifications Item Specifications Model Name Basic Information Folding Size（mm） 1120*516*559mm Unfolding Size (mm) 1120*516*1115mm Max load（kg） 120kg Weight Net Weight(kg) 17kg 16~50 Recommended Age Riders 120~200 Required Height（cm） Max speed(km/h) 25km/h Theoretical cruising（km） 25~30km Climbing Slope Operating temperature -10℃~40℃ Machine parameters Waterproof level IPX5...
