Gledopto GL-C-002P User Instruction

G) LED indicator
Different color indicators correspond lo different functions.
@Reset
Short press once lo switch frequency; Short press twice to enter find and binding;
Short press three times lo enter touchlink.
@OPT
Short press once to switch the function; Press and hold far more than 5 seconds
lo set the power-on status.
FUNCTIONS OF DIFFERENT INDICATOR COLORS SHOWN AS FOLLOWING TABLE:
lndicator
Color
I. NETWORK PARING:
1. Pairing with Zigbee Hub
Add the device to a zigbee network via coordinator or hub
G) Please ensure the device wasn't be paired.
Otherwise, please "RESET" the device according to the pari Il "RESET".
@ After STEP 1, there will be a pairing process about 90s.
Once times out, you need lo repeat the G).
2. Touchlink to a Zigbee Remote Control / Touch Panel
G) Please make sure the distance between the device and
remote control / touch panel less than 10cm;
0
<10cm
+----+
I;)
o @=])
GODO
Method 2: Re-power on the device, Touchlink Commissioning will
start after 15 seconds if it's not added to a ZigBee network, 165
seconds timeout. Or start immediately if it's already added to a
network, 180 seconds timeout. Once timeout, repeat the operation.
@
Set the remote/ touch panel to enter "Touchlink
Commissioning".
Please refer to the manual of the corresponding remote/ touch
panel.
*Note:
G) lf the device & remote control in different zigbee network,
each remote can link with one device.
@ lf the device & remote control in the same zigbee network,
max 30 remotes can link with one device.
@ For the Philips Hue /Amazon Echo Plus, the device &
remote control should in the same network before Touchlink.
RGBCCT RGBW
e
White Yellow
SMART LED CONTROLLER
User instruction
EC REP
Produci Name
Model NO.
Size
Input Voltage
Protection Rate
Total P ower
Output Current/Channel
Total Output Current
Operating Temperature
(RGBCCT-i>RGBW-i>RGB->CCT->DIMMER->RGBCCT)
RGB
e
e
Blue
@ Open the zigbee App
(hue or Amazon Alexa),
add the device.
@ lf the pairing done successfully
after the above steps, the device
will blink 3 times.
@ Method 1: Please short press key "Reset" 3 times or power on /off the
device 3 times to enter into "Touchlink Commissioning" mode, the device
will blink 5 times.
l;)Reset
@ There shall be indication on the remote or touch panel for successful
pairing, the device will blink 2 times.
via the remote/ touch panel.
�------�
I
(Flash 2 times)
3. Find and Bind Mode
*Note: Make sure that the device & remote are in the same network.
G) Short press "Reset" button (or re-power on the device)for 2 times.
The device will blink twice, and start "Find and Bind" mode to find the ''Target Node".
(Flash 2 times)
GL-CM-1-002
SPECIFICATION

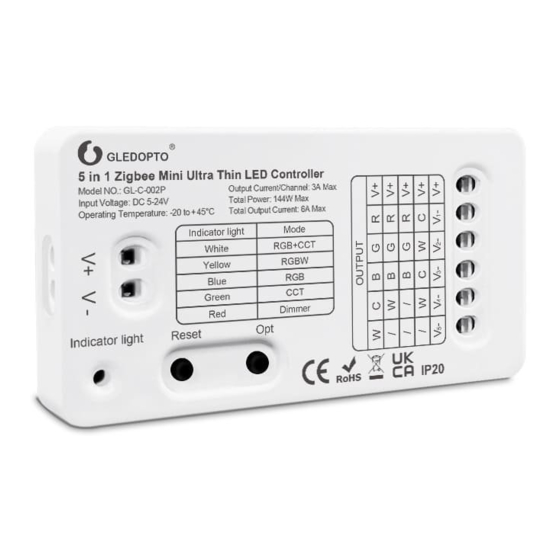

5 in 1 Zigbee Mini Ultra Thin LED Controller
GL-C-002P
7.0*3.6*1.0cm
DC5-24V
IP20
144 W Max
3AMax
6AMax
-20~45 ° C
Common Anode
Constant Voltage
CCT Dimmer
Green Red
-
@
Now the device shall be controllable
(Short press for 2 times)
