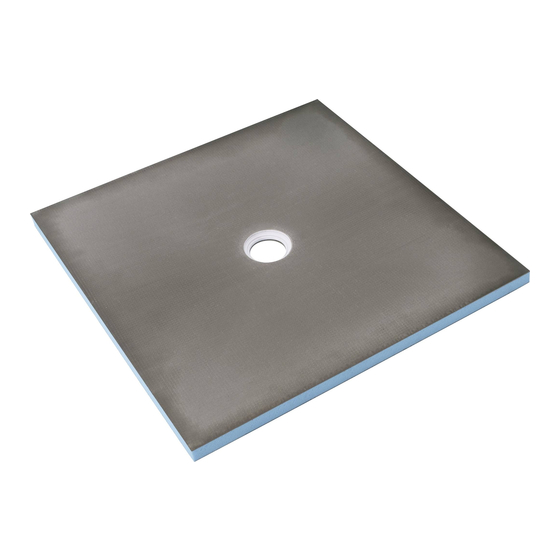

- Page 1 Assembly Instruction | Instrucciones de montaje | Instructions d’assemblage wedi Fundo Primo Shower System | Sistema de ducha | Système de douche...
- Page 2 wedi Fundo Click and Seal™ mechanism for simple and safe assembly. wedi Fundo Click and Seal™ drain allows for a connection to a floor waste pipe that is easily cut flush with the floor, and it can connect safely even where the floor waste pipe is slightly angled (up to 5 Degrees).
- Page 3 Siempre y cuando la plomería de la tubería de desagüe sea abierta, el caudal del drenaje y la tapa de drenaje wedi Fundo Primo supera los 14 galones por minuto o los 12 galones por minuto cuando se utiliza con nuestra tapa de drenaje enlosable.
- Page 4 Tous les adhésifs pour carreaux de bonne qualité recommandés dans des applications d’installation dans des zones humides et conçus à base de ciment ou d’époxy fonctionnent très bien avec wedi Fundo Primo. Tout cela sous le couvert d’une seule garantie pour toute la douche, du sol au mur.
- Page 5 Fundo Primo Tools needed for installation | Herramientas necesarias para la instalación | Des outils sont nécessaires pour l’installation Bucket 1/4 in. square Notch Trowel Speed Square Utility Knife Straight Edge / Handsaw ...
- Page 6 1 pulg. (25.4 mm) en ambos lados de la unión. en continu. 3) La cinta de malla wedi se coloca sobre estas uniones y se cubre con 2) Le produit d’étanchéité wedi est appliqué sur ces joints de manière sellador de juntas en un ancho de 1 pulg.
- Page 7 Use with nominal schedule 40 2 in. PVC,ABS or Cast iron waste pipe. Use special wedi parts for installation to copper pipe. Utilice con la tubería de desagüe de PVC, ABS o hierro fundido de 40 2 pulg. (cédula nominal). Utilice piezas wedi especiales para la instalación en un tubo de cobre.
- Page 8 Las bases de ducha Fundo wedi pueden cortarse y/o extenderse Las extensiones prefabricadas wedi ya están ranuradas. Se las puede unir con otras extensiones en un diseño de inglete, uniendo dos o más lados de una ducha que se extenderá. Realice conexiones de ranura in situ según sea necesario para las conexiones de inglete. Consulte el manual de wedi para obtener información sobre el uso de extensiones con pendiente.
- Page 9 Fundo Primo Assembly Overview | Descripción general del montaje | Présentation de l’assemblage A wedi shower base can be cut to size using a circular saw with standard carbide blade. You can remake the 1/2 in. × 1/2 in. perimeter channel by cutting through the cement surface using the circular saw set to cut 1/2 in.
- Page 10 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Cut the 2 inch waste pipe even and flush with the subfloor surface. Make sure that the cut out fits to the Fundo base‘s drain.
- Page 11 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton Cut the Fundo base to fit between framed walls and so its wedi drain unit can connect with the floor waste pipe. Consider also the space needed by a curb or extension before cutting your wedi base.
- Page 12 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Next, install the Fundo Click and Seal™ drain unit. Drain components are delivered inserted inside the Drain Body. Please take the parts out and use step by step following our manual here.
- Page 13 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton Once inserted, turn the Drain Body clockwise until its plastic flap clicks in position in its final resting position. This will require no more than a quarter turn.
- Page 14 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Clean the subfloor with a moist sponge to remove dust and dirt, and apply a skimcoat of a suitable, modified tile adhesive/ thinset (ANSI 118.4 or better),...
- Page 15 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton Press the Fundo firmly into the thinset bed (sloped side up) ensuring that the installation is level along its perimeter and sides, and thinset attachment and coverage is void free.
- Page 16 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Apply wedi provided safe lubricant to the rubber part of the Compression Spacer. With the rubberized part pointing up now insert the Compression Spacer in between Drain Unit and waste pipe and on top of the Sealing Gasket.
- Page 17 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton Insert Strainer Key into Locking Nut at notch connections and with Strainer Key printed side up. The Strainer Key is used as a tool to tighten the compres- sion seal of the Drain Unit, but remains in place later to serve as a hair catcher to protect the drain and make maintenance and cleaning easy.
- Page 18 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Loosely insert the Alignment Ring 1 into the Drain Unit opening with printed side up.
- Page 19 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton Insert the Snap Ring 2 into Drain Unit opening with printed side up. Align its arrow and protruding key fitting into the notch of the Alignment Ring 1. The Snap Ring 2 needs to be secured in place with its perimeter notches snapping into grooves which are premade in the Drain Unit.
- Page 20 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Push the wedi building panel fully into the channel of the shower base, being sure the bead of sealant is fully compressed.
- Page 21 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton Apply continuous 1/2 in. beads of sealant between all connections of panels and install with tightly butted seams. Excess sealant must be spread flat with a putty knife.
- Page 22 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Fasteners every 12 inches on either side of the niche, or a minimum of 1 fastener on each of the 4 corners, are set to create a flat transition to wall panels.
- Page 23 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton A continuous 1/2 in. bead of sealant is set into the channel and along the vertical curb notch part. 1/2 in. beads of wedi joint sealant are equally ap- plied on wall surfaces where the curb attaches.
- Page 24 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Weight is applied for a minimum of 30 minutes on and against the curb (from outside) and another 1/2 in.
- Page 25 Several Fundo Primo models naturally feature different perimeter height or thickness at the edge. Therefore, pre-made standard notch connections of wedi curbs must be modified in the field for a tight fit to the bases. Ramps and Extension panels can naturally not fit to all models and might be modified in the field as well. When using curbs with shower bases...
- Page 26 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Next, insert the Drain Cover Extension into the threaded part of the Align- ment Ring 1.
- Page 27 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton The Drain Cover Extension can be cut to height/length at its threaded part using a fine tooth saw for a fast, clean and safe process. Make a cut within one of the cutting grooves to adjust the extension to the height needed.
- Page 28 Fundo Primo Installation instructions wedi Fundo Primo onto wooden or concrete floors | Instrucciones para instalar wedi Fundo Primo en pisos de madera o concreto Place the drain cover unit loosely on the Drain Cover Extension were it fits into a tight seat.
- Page 29 Fundo Primo Instructions d’installation du wedi Fundo Primo sur planchers en bois ou en béton All fastener points are visibly covered with wedi joint sealant. All protrusions sealers free of acid or solvents on tile or grout installed over wedi product, (ie.
- Page 30 être entièrement soutenus par le lit de pose manière uniforme sur une transition à laquelle il est difficile d’appliquer un de colle à carrelage et la surface du receveur wedi. Se référer aux directives de la produit d’étanchéité suffisamment épais. Le treillis sert ici de jauge d’épais- TCNA pour la couverture du matériau de pose requise par le carreau à...
- Page 31 Where wedi Building panel or curb overs / caps are installed over horizontal surfaces (seats, curbs, tubdeck transitions) do not set any fasteners and do not allow the glass door installation to penetrate the wedi panel as it is your waterproofing.
