Save This Manual for Future Reference

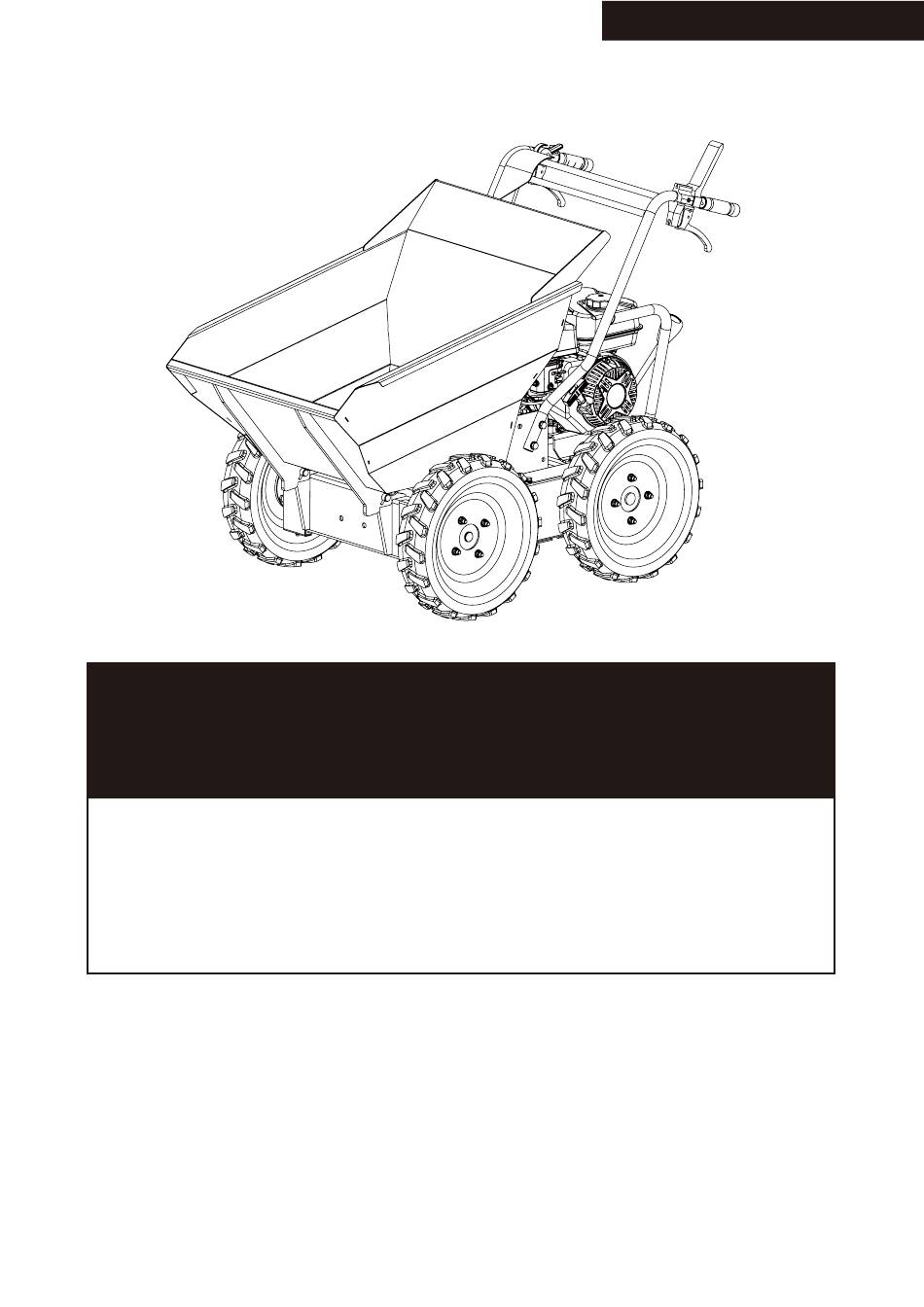

Original Instruction
Powered Wheelbarrow
Operator's Manual
MODEL NUMBER :
T30
SERIAL NUMBER :
Both model number and serial number may be found on the main label.
You should record both of them in a safe place for future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE
OPERATING MACHINE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T30 and is the answer not in the manual?

Questions and answers

Summary of Contents for RYTEC T30

  • Page 1 Save This Manual for Future Reference Original Instruction Powered Wheelbarrow Operator’s Manual MODEL NUMBER : SERIAL NUMBER : Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use. FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE...
  • Page 2 300KG Dumper Intended use statement You must read below before operating this machine This machine has been developed and designed for the purpose of transporting hard material such as stone, brick, wood and construction debris. This machine should only be used at the maximum gradients outlined in this manual.
  • Page 3 Crytec Limited Declaration of Conformity 1. Product Model / Type: a. Product: Mini Power Dumper b. Model: 2. Manufacturer: a. Name: Crytec Limited b. Address: Unit 1C Upper Mantle Close, Chesterfield S45 9ED, UK 3. This declaration is issued under the sole responsibility of the product manufacturer. 4.
  • Page 4 TABLE OF CONTENTS Specifications Introduction Item No Specifications 196cc,4.8KW/3600/min Engine 3F+1R Symbols Transmission 300 kg Load Capacity Safety Box Length 940mm General Safety Rules Box Width 635mm Specific Safety Rules 330mm Box Depth Contents supplied 99.5 dB(A) Measured k=2.51 dB(A) Sound power Assembly level ( LwA )
  • Page 5 SAFETY D o n o t r e m o v e o r t a m p e r with the protection and safety General Safety Rules devices. Understand Your Machine Read and understaand the operator’s manual and No smoking, sparks, or flames labels affixed to the machine.
  • Page 6 Never remove or tamper with safety device. Check Always stop the engine and allow it ti cool before their proper operation regularly. filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is running or Do not use the machine if the engine’s switch does when the engine is hot.
  • Page 7 lf the machine should start to make an unusual Never park the machine in a place with unstable noise or vibration, immediately shut off the engine, ground which could give way .particularly when disconnect the spark plug wire, and check for the it is full.

  • Page 8: Contents Supplied

    CONTENTS SUPPLIED The powered wheelbarrow comes partially assembled and is shipped in carefully packed package. After all the parts have been removed from the package, you should have: Save This Manual for Future Reference Original Instruction Powered Wheelbarrow Operator’s Manual MODEL NUMBER : SERIAL NUMBER : Both model number and serial number may be found on the main label.
  • Page 9 Machina Assembly Mount the wheels and fasten them with M10 nuts. Install the dump box and fasten the front with two 5X40 R-clips. Engine oil Oil has been drained for shipping. Failure to fill engine sump with oil before starting engine will result in permanent damage and will void engine warranty.
  • Page 10 KNOW YOUR PIWERED WHEELBARROW Features and Controls Engine Switch Throttle Control Right Steering Lever Clutch Control Lever Left Steering Lever Dump Box Gear Selection Lever Tipping Handle Wheel Gearbox Engine switch Throttle control The engine switch enables and disables the ignition It controls engine speed.
  • Page 11 Tipping handle Powered Wheelbarrow Operation It controls tipping of the dump box. Swing tipping Adding fuel handle A in the direction of the arrow to release limiter B out of hook C. The dump box will be Fill the fuel tank as instructed in the separate released.

  • Page 12: Maintenance

    Operating Stopping engine After engine warms up, pull throttle lever to To stop the engine in an emergency, simply turn accelerate engine speed. the engine switch to the OFF position. Under normal conditions, use the following procedure. Engage the required gear and slowly squeeze the clutch control lever.
  • Page 13 Adjusting steering Engine maintenance If you have difficulty steering the unit, you will Refer to the Engine Manual included in your unit need to adjust the steering levers with the special for the information on engine maintenance. Your adjusters. Slacken off the locknut and unscrew the eng ine manual provides det ailed information and adjusters to eliminate the play in the cable, which a maintenance schedule for perform ing the tasks.

  • Page 14: Troubleshooting

    TROUBLE SHOOTING Remedy Problem Cause Attach spark plug wire securely to spark plug. Spark plug wire disconnected. Fill with clean, fresh gasoline. Out of fuel or stale fuel. Throttle must be positioned at choke Choke not in open position. E n g i n e fa i l s to for a cold start.

  • Page 15: Parts Schedule

    PARTS SCHEDULE Powered Wheelbarrow...

  • Page 16: Parts List

    PARTS LIST Description Q'ty Description Q'ty Handle frame Protect ring Safety control handle Chassis Tensioner pulley cable Rubber mat Throttle lever Chain 10B-58 Throttle cable Chain 10B-84 ON/OFF Switch Chain cover Handle sleeve Dumper box assembly Box handle sleeve 4.00-8 wheel Dumper box control lever Rear wheel axle Handle bracket...
  • Page 17 PARTS LIST Description Q'ty Hex flange nut M10 Hex bolt M8x80 Hex bolt M8x20 Hex bolt M6x12 Hex bolt M8x35 Spring washer 8 Hex bolt M10x60 Lock nut M12 Hex bolt M8x40 Hex bolt M8x25 Hex bolt M6x25 Hex bolt M10x20 Carriage bolt M8x20 Gasket 8 BS Bolt 5/16-24x1...

  • Page 18: Gearbox Parts List

    GEARBOX PARTS LIST Powered Wheelbarrow...
  • Page 19 PARTS LIST Description Q'ty Description Q'ty Gearshift lever Gear III-1 Oirentation bolt Gear III-2 Shift rod Spacer Gearshift fork locating shaft Gear III-3 Steel ball 6mm Vent plug Spring Swing plate Gearshift fork Output shaft bushing gasket Spline shaft I Gasket Duplex slip gear Gasket...
  • Page 20 PARTS LIST Description Q'ty Hex bolt M6x20 Lock nut M8 Hex screw M14x1.5 Compound gasket 14 Flat washer 6 Hex socket bolt M6x35 Hex socket bolt M8x30 Oil seal 17x40x7 Bearing 6303 Bearing 6302 Circlip 15 Rubber seal ring Compound gasket 20 Hex bolt M8x16 Circlip 12 Elastic cylindrical pin 5x35...
