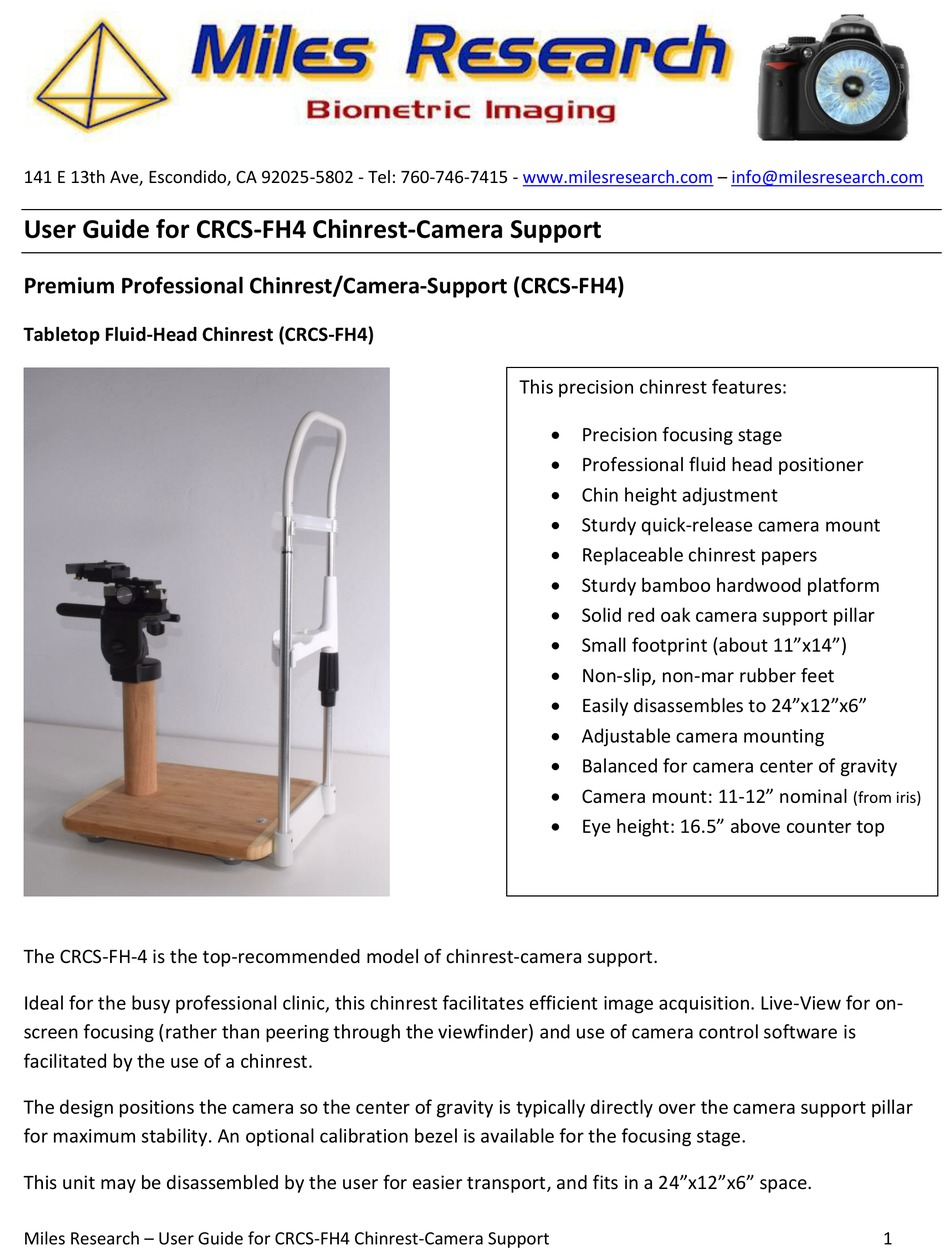

User Guide for CRCS-FH4 Chinrest-Camera Support
Premium Professional Chinrest/Camera-Support (CRCS-FH4)
Tabletop Fluid-Head Chinrest (CRCS-FH4)
The CRCS-FH-4 is the top-recommended model of chinrest-camera support.
Ideal for the busy professional clinic, this chinrest facilitates efficient image acquisition. Live-View for on-
screen focusing (rather than peering through the viewfinder) and use of camera control software is
facilitated by the use of a chinrest.
The design positions the camera so the center of gravity is typically directly over the camera support pillar
for maximum stability. An optional calibration bezel is available for the focusing stage.
This unit may be disassembled by the user for easier transport, and fits in a 24"x12"x6" space.
Miles Research – User Guide for CRCS-FH4 Chinrest-Camera Support
www.milesresearch.com
This precision chinrest features:
 Precision focusing stage
 Professional fluid head positioner
 Chin height adjustment
 Sturdy quick-release camera mount
 Replaceable chinrest papers
 Sturdy bamboo hardwood platform
 Solid red oak camera support pillar
 Small footprint (about 11"x14")
 Non-slip, non-mar rubber feet
 Easily disassembles to 24"x12"x6"
 Adjustable camera mounting
 Balanced for camera center of gravity
 Camera mount: 11-12" nominal
 Eye height: 16.5" above counter top
– info@milesresearch.com
(from iris)
