Summary of Contents for Atmos Laddomat 22

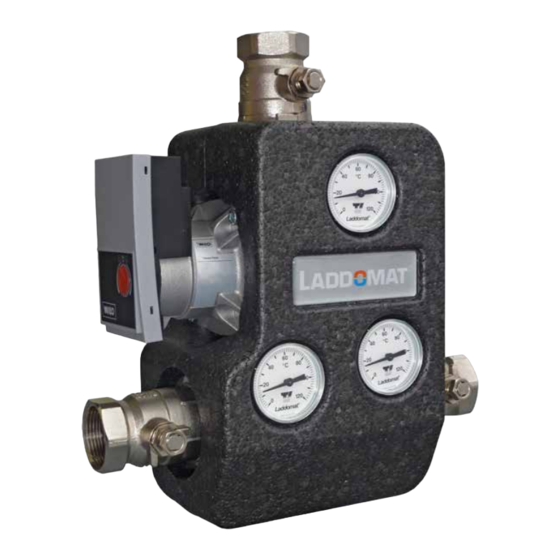

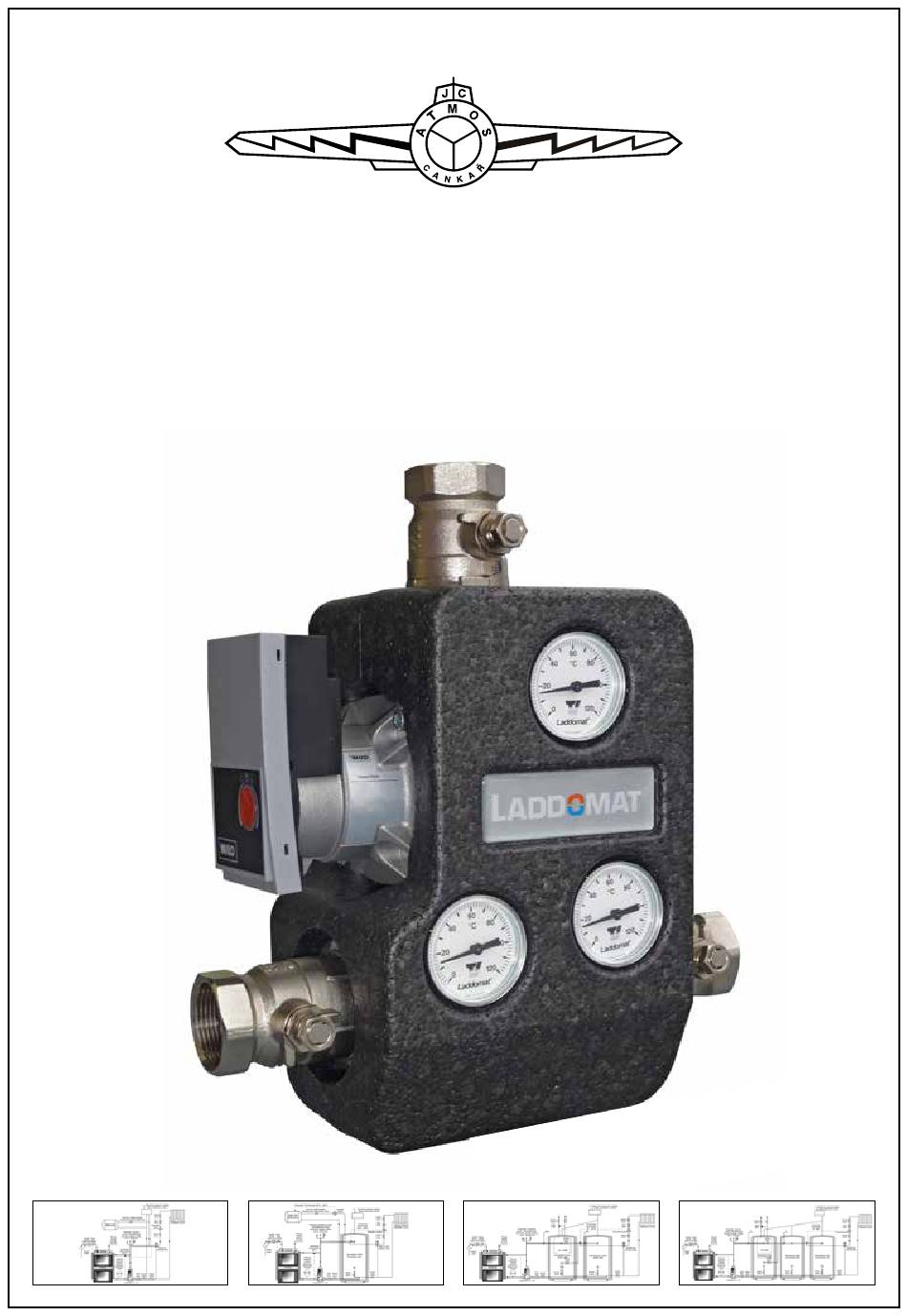

- Page 1 ATMOS Laddomat 22 Laddningspaket ® with high efficiency pump User manual ATMOS...
- Page 2 ® Installation Manual CONNECTION WIRING The Laddomat 22 pump is connected so that it runs The Laddomat 22 must always be connected in shortly after the firing and stops shortly after the the upright position as shown in the diagrams.
- Page 3 2. Thermostatic valves with adjustable In the event of the Laddomat 22 malfunction or if Min. Min. aperture, which is set to suit the radiator size. the system has been bled, it is necessary to clean it from any dirt, such as lint, sealing tape, thread swarf, etc.
-
Page 4: Description Of Functions
Charging of the storage tank via the check valve from boiler to tank or using the self-circulation system. The pump in the Laddomat 22 causes the water Description of functions circulation in the boiler circuit via bypass and thermostatic valve. The thermostat cartridge in the... -
Page 5: Operation
In case of a prolonged power failure the whole house may be heated thanks to the self-circulation, If the Laddomat 22 is controlled by the flue if allowed by the distribution system of pipes and thermostat, the circulation pump will stop after the their diameters. - Page 6 Vlave Unscrew the cover opposite the pump. ventilu housing Remove the cover with spring, plunger and thermostat cartridge from the Laddomat 22 (Fig. 1). Pružina Spring (prodloužená) The thermostat cartridge is held in place on the plunger by an O-ring.
- Page 7 With the above mentioned dimensions, the Laddo- mat 22 provides the flow of 3-4 m 3/h. See the flow chart. For a longer piping the pipe diameter must Laddomat 22 lze jednoduše be increased. Laddomat 22 otočit pro montáž na pravou stranu.
- Page 8 6 to 10 bar or closed expansion vessel with a min. volume of 4 l. 3. Best specified boiler connection with the Laddomat 22 with storage tanks otevřená expansní nádoba...
