Intelligent Timer for Photogates and Solenoids
Warning:
• Not a toy; use only
in a laboratory or
educational setting.
• California Proposition
65 Warning: This product
can expose you to
chemicals including styrene and lead, which are
known to the State of California to cause cancer,
birth defects, or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.

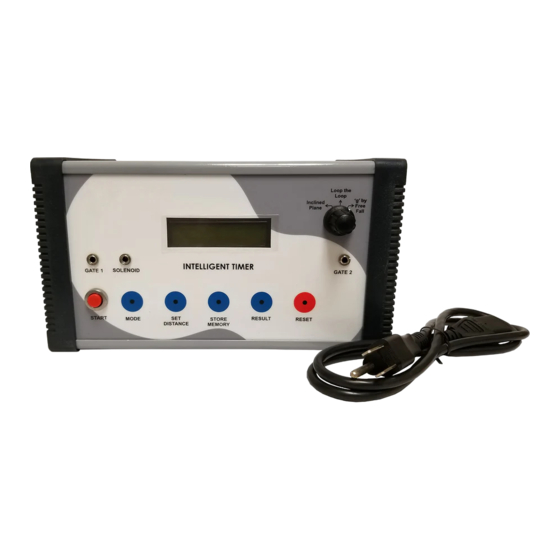

1. Port for Photogate 1
2. Port for Solenoid
3. Display
4. Mode Dial
1
6
#TMRSOL
Accurate timers are essential in the lab. Operating instructions for the
timer below are on the following page.
Parts and Buttons
5. Port for Photogate 2
6. Start Button
7. Mode Button
8. Set Distance Button
2
3
7
8
9
Introduction
9. Store Memory Button
10. Result Button
11. Reset Button
12. Power Cord
4
5
10
11
1
12
Advertisement
Table of Contents
Related Manuals for GSC TMRSOL
Summary of Contents for GSC TMRSOL
- Page 1 GSC International Phone: 417.374.7431 Fax: 417.374.7442 Toll Free: 888.756.4592 service@gosciencecrazy.com 2076 James River Court Nixa, Missouri 65714 Intelligent Timer for Photogates and Solenoids #TMRSOL Introduction Warning: Accurate timers are essential in the lab. Operating instructions for the • Not a toy; use only in a laboratory or timer below are on the following page.
- Page 2 Working of “Intelligent Timer with Solenoid” With “Inclined Plane” and “Loop The Loop Apparatus” 1. Connect the photo gates with the apparatus by using connecting lead (EPST male – EPST male). Photo gate of “Inclined Plane” or “Loop The Loop Apparatus” which is connected on Gate 1 EPST Female Socket on apparatus will act as IN Gate for passing object and the photo gate of “Inclined Plane”...
- Page 3 Working of “Intelligent Timer with Solenoid” With “g By Free Fall Apparatus”: 1. Connect the photo gates with the apparatus by using connecting lead (EPST male – EPST male). Connect the Upper Gate of “g By Free Fall Apparatus” on Gate 1 EPST Female Socket on apparatus and connect the “Lower Gate”...
- Page 4 Observation Table: Sr No. Distance Between Gates Time g=2S/t² Formula Used: S = ut + ½ at • Where s = Distance between metallic sphere and sensor plate • t = time taken by the ball to reach at the sensor plate •...
