- Page 1 Hydrogen Refueling Nozzle T635 Series User Guide Chengdu Andisoon Measure Co., Ltd.
-
Page 2: Table Of Contents
Contents I. Product Introduction................1 II. Technical Parameters................2 III. Product Installation................2 IV. Application Method................5 V. Precautions................... 6... -
Page 3: Product Introduction

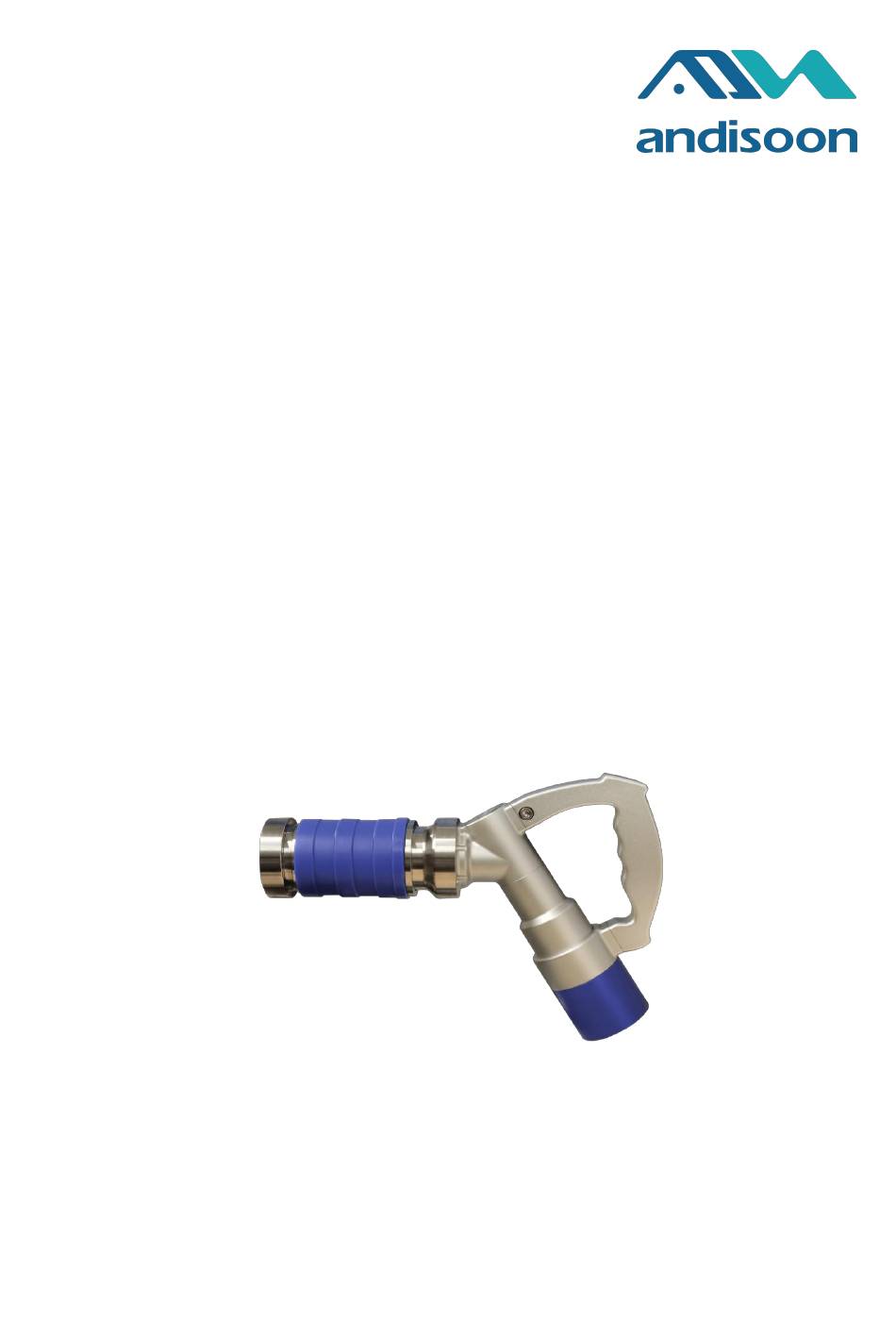

I. Product Introduction This hydrogen refueling nozzle is designed into an automatic locking structure. After the head of the hydrogen refueling nozzle and the hydrogen refueling port are connected in place, the internal claws of the hydrogen refueling nozzle automatically block and lock the hydrogen refueling port, so as to form a reliable mechanical connection between the hydrogen refueling nozzle and the hydrogen refueling port. -
Page 4: Technical Parameters
II. Technical Parameters Table of Technical Parameters of Hydrogen Refueling Nozzle Working medium -40℃～＋85℃ Medium temperature -40 ℃～＋60 ℃ Ambient temperature Relative air humidity ≤95 ％ Rated working 70MPa pressure Nominal diameter Air inlet size 9/16"-18 UNF Explosion proof mark Ex ia IIC T4 Gb IP rating IP65... - Page 5 refueling nozzle and the sealing surface of the conical surface of the hydrogen refueling hose with a clean and dust-free cloth to avoid the sealing failure caused by impurities damaging the sealing surface during the connection process; 5、 After the hydrogen refueling hose and the hydrogen refueling hose are initially connected by hand, the S = 13 explosion-proof solid wrench is used to block the hexagonal position of the inlet connector, and the S = 19 explosion-proof solid wrench (the size of different brands of hose is...
- Page 6 Turn off the hose sheath anticlockwise and let the hydrogen refueling hose pass through the hose sheath Connect and fasten the hydrogen refueling hose and hydrogen refueling nozzle Turn the hose sheath clockwise and screw the nozzle body in place...
-
Page 7: Application Method
① Inlet connector ② Sealing cone of inlet connector ② ③Power interface of infrared communication module ③ Pin 1: 5V power supply+ Communication module power Pin 2: GND interface pin Pin 3: A definition Pin 4: B IV. Application Method 1、... -
Page 8: Precautions
Connectable state State of connection in place Direction of inserting the nozzle Direction of removing the nozzle V. Precautions Disassembly process (replacing the existing hydrogen refueling nozzle): Make sure that the hydrogen dispenser is shut down and the main pipeline valve is closed;... - Page 9 Chengdu Andisoon Measure Co., Ltd. Packing List Product Name: Hydrogen Refueling Nozzle Model: T635 Spec & Code Title Unit Qty. Remarks Hydrogen T635 Refueling Pcs. Nozzle Product Qualification Pcs. Certificate User Guide Copy...
- Page 10 Chengdu Andisoon Measure Co., Ltd. Address: No. 88, Wulian Road West, Gongxing Subdistrict, Shuangliu District, Chengdu, Sichuan, China Tel：028-63165820 Fax：028-63165817 E-mail：info@andisoon.com Website：http://www.andisoon.com Version: MAA-T635-2A The above parameters are for reference only and subject to technical changes without prior notice.
