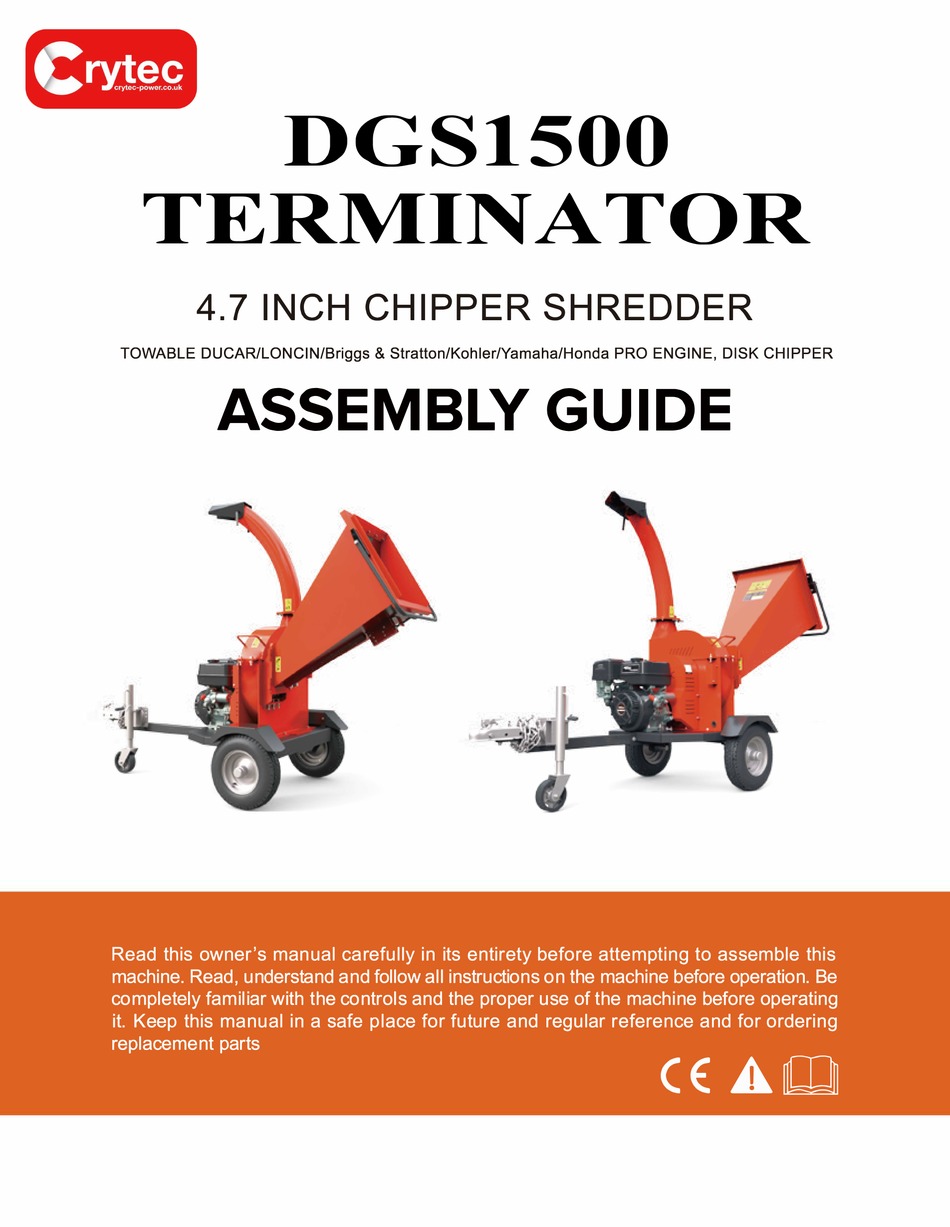

DGS1500
TERMINATOR
4.7 INCH CHIPPER SHREDDER
T OWABLE DUGAR/LONGIN/Briggs & Stratton/Kohler/Yamaha/Honda PRO ENGINE, DISK CHIPPER
ASSEMBLY GUIDE
Read this owner's manual carefully in its entirety before attempting to assemble this
machine. Read, understand and follow all instructions on the machine before operation. Be
completely familiar with the controls and the proper use of the machine before operating
it. Keep this manual in a safe place for future and regular reference and for ordering
replacement parts
□
CEA
Advertisement
Summary of Contents for RYTEC TERMINATOR DGS1500
- Page 1 DGS1500 TERMINATOR 4.7 INCH CHIPPER SHREDDER T OWABLE DUGAR/LONGIN/Briggs & Stratton/Kohler/Yamaha/Honda PRO ENGINE, DISK CHIPPER ASSEMBLY GUIDE Read this owner's manual carefully in its entirety before attempting to assemble this machine. Read, understand and follow all instructions on the machine before operation. Be completely familiar with the controls and the proper use of the machine before operating it.
- Page 2 DGS1500 Intended use statement You must read below before operating this machine This machine has been developed and designed for the purpose of chipping wood up to the size of 120mm, it is not suitable to insert any other type of material into this machine. Please make sure all wood that is passed through this machine is natural and organic i.e there is no screws, nails or any other debris embedded in the wood.
-
Page 3: Declaration Of Conformity
Crytec Limited Declaration of Conformity 1. Product Model / Type: a. Product: Wood Chipper b. Model: DGS1500 2. Manufacturer: a. Name: Crytec Limited b. Address: Unit 1C Upper Mantle Close, Chesterfield S45 9ED, UK 3. This declaration is issued under the sole responsibility of the product manufacturer. 4. -
Page 5: Specifications
SPECIFICATIONS Item Number Ducar Loncin Briggs & Stratton Kohler Yamaha Honda Engine DH420 G420F(D) CH440 MX400 GX390 XR2100 420cc 420cc 420cc 429cc 402cc 389cc Displacement 15hp (9.1kw) 15hp (9.0kw) 13.5hp (9.0kw) 14hp(10.5kw) 12.8hp (9.4KW) 13hp (9.6kw) New Power 4 .73" (120 mm) Chipping Capacity 573.2 lb (260 kg) Weight... -
Page 10: Battery Connection
BATTERY CONNECTION WARNING DANGER WARNING : EMERGENCY STOP WARNING 12cm Check belt tension before operating chipper. Belt deflection should be less 10lb. than 10mm when 4kg of pressure is applied to the 10mm belt. The belt will loosen after the first 1-2 hours use.
