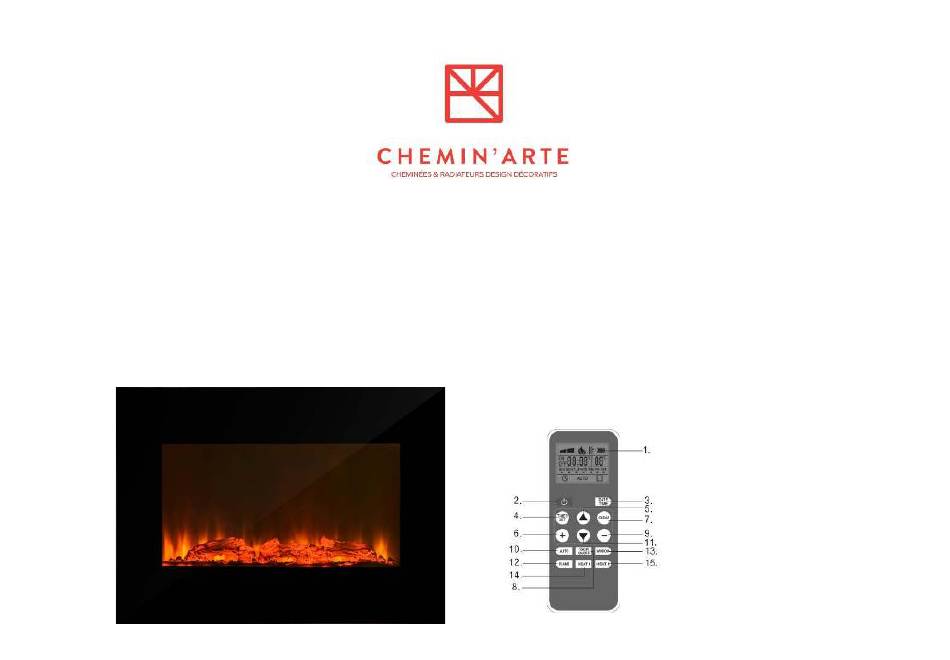

- Page 1 Manual Instruction Model Black River 103 and Empire State 104 1. LCD display 2. Power button 3. Date Time button 4. Timer Set button 5. Up button 6. + button 7. Clear button 8. Timer On/OFF button 9. - button...
- Page 2 A.Heat button B.Flame button C.Power button Manual Operation STEP 1: Plug in and turn the mains power supply on.
- Page 3 STEP 2: Turn the on/off switch on the right hand side of the heater outlet to the “I” position. STEP 3: Press the power button to turn on the appliance. STEP 4: Press the “HEAT” button once to activate the low heat setting; press it again to activate the high setting, press it a third time to switch the heat setting off.
- Page 4 AUTO Control Function Press the "+" button on the remote control to increase the set temperature. Press the "-" button to decrease the set temperature. The temperature can be set between 15-30°C. Press "AUTO" to activate the automatic control function. The appliance will automatically activate / deactivate with the following functions: If the room temperature is higher than the set temperature on the appliance, the heat will turn off.
- Page 5 Setting the Heat Timer Press the "TIMER SET" button on the remote control, the time cycle number will flash. Use the "+" and "-" buttons to cycle through the different timer cycles from 1 to I0 and press the "TIMER SET" button to confirm. A small black triangle will flash below one day of the week, indicating that the day of the week need to be determined.
- Page 6 Set TIMER OFF time The "OFF" symbol will illuminate on the digital display to indicate that the Timer OFF will need to be set. STEP 1: Press the "+" or "-" button to set the hour setting for Timer OFF and press the "TIMER SET" button to confirm. STEP 2: Press the "+"...
-
Page 7: Product Safety
When this function is enabled, if the ambient temperature is lowered due to the opening of the doors or windows, indicator light on “HEAT” button on the appliance will blink to remind the user to close the window / door.If there is no response, the system will automatically stop heating. Press the window button once to active the window monitor. - Page 8 rating of the appliance before operating. when not in use or before cleaning. Please ensure that the appliance is used on a stable,level,and heat If the supply cord or appliance is damaged, stop using the ⚫ ⚫ resistant surface. appliance immediately and seek advice from the manufacturer, its service agent or a similarly qualified person.
- Page 9 fire hazard. Do NOT use the heater in areas where flammable liquids are ⚫ stored or where flammable fumes may be present. Never sit or stand on the fire. ⚫ Do NOT operate the heater on a timer, or leave on overnight. ⚫...
- Page 10 Never cut off the plug and hard wire into a fixed fused spur. When not being used,please unplug the heater from the mains ⚫ ⚫ socket. The heater must not be located immediately below a mains socket ⚫ outlet. Keep the mains lead away from the hot body of the heater and ⚫...
-
Page 11: Safety Cut-Out System
Don’t : Never leave children unsupervised in a room where the fire is ON Note: When the fire is turned on for the first timer or when it has not been ⚫ and unguarded. used for some time, it may release a slight,harmless odour. This odour is a normal occurrence caused by the initial heating of the internal heating Never obstruct or cover the fan outlet or force items into fire ⚫... -
Page 12: Troubleshooting
Never route the mains supply cable under carpet etc. WARNING! ⚫ Never install the fire close to curtains or combustible materials. Please do not obstruct the air vents of the electric fire. ⚫ This appliance has a ‘self resetting’ safety cut out system.This will activate Never use the fire to dry clothes etc. - Page 13 Safety Cut-Out device: To ensure against the potential hazard caused by blockage of the air outlet, this unit is equipped with an automatic over-temperature safety cut-out device. When the device is activated the heater will not operate. If this occurs, the unit can be reset using the following procedure. 1.
- Page 14 Problem Potential cause Corrective action The fire won’t turn on. Mains plug is not plugged in. Check the mains socket to ensure the plug has been inserted correctly. Switch on using the operation switches. The On/Off switch hasn’t been switched on. Check and change the fuse in the plug.
-
Page 15: Cleaning And Care
CLEANING AND CARE Unplug the appliance and allow the unit to cool down completely before cleaning. ⚫ There are no specific requirements for the care of this unit, other than general cleaning. ⚫ Brushed stainless steel (silver)fires can be cleaned using a cloth and a propriety cleaner. Other features(non-silver)can be cleaned using a damp ⚫... - Page 16 There are no internal user serviceable parts. Check the regularly security of wall fixings as appropriate. Also check security of supply cable and connections.If the supply cable becomes damaged, it must be replaces by a service agent or competent person,such as a qualified electrician.
- Page 17 Should the fuse require replacing, it must be replaced with a fuse rated at I3 Amp and approved to BSI362. In the event of the mains plug being removed / replaced for any reason,please note: IMPORTANT: The wires in the mains lead are colored in accordance with the following code: Blue - Neutral Brown - Live Green / Yellow -Earth...
- Page 18 Item Symbol Value Unit Item Unit Heat Output Type of heat input for electric storage local space heaters only(select one) Nominal heat output Pnom Manual heat charge control,with integrated thermostat Nominal heat output Pmin Manual heat charge control with room and /or outdoor temperature feedback (indicative) Maximum continuous Pmax,c...
- Page 19 Electronic room temperature control plus day timer Electronic room temperature control plus week timer Other control options (multiple selections possible) Room temperature control,with presence detection Room temperature control,with open window detection With distance control option With adaptive start control With working time limitation With black bulb sensor...
