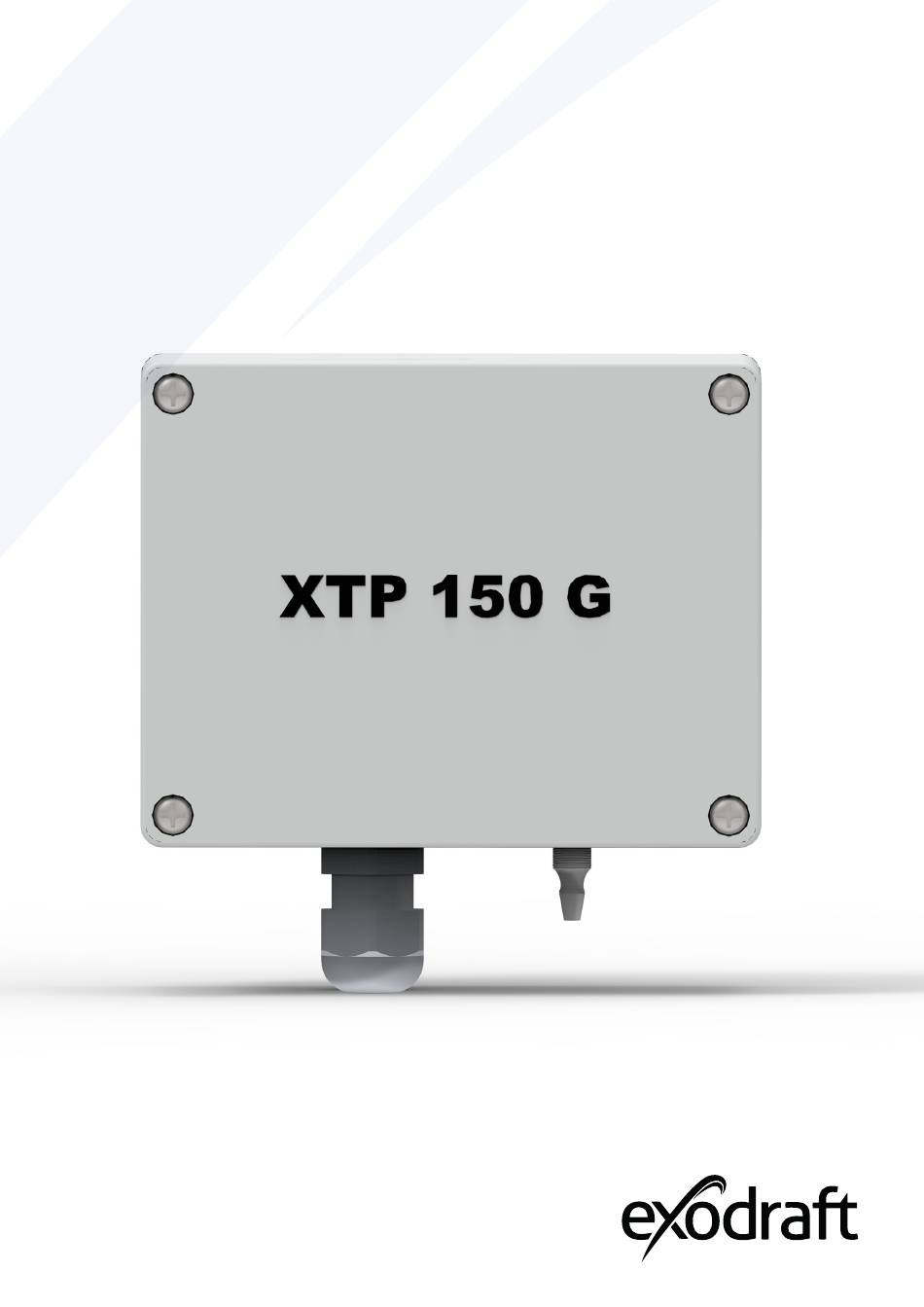

- Page 1 Accessories XTP150G | Read and save these instructions! Your energy. Optimized.
-
Page 3: Table Of Contents
Your energy. Optimized. Accessories | XTP150G Content Product information Scope of supply Technical specifications Construction and components Installation Fitting Electrical wiring Operation and configuration Troubleshooting UK Conformity Assessed Declaration of Conformity... - Page 4 How to use this manual This manual has been prepared based on the specific product and contains relevant technical information and installations guides. Accessories and spare parts are not covered by this manual. Please refer to the individual manuals of these components. This installation manual does not contain any system design documentation.
- Page 5 Symbols The following symbols may be used in the manual to draw attention to danger or risk of personal injury or damage to the product. General prohibition Failure to observe instructions marked with the prohibited symbol may result in extreme danger or serious personal injury. General attention Marks a dangerous situation that, in the worst-case scenario, can cause serious personal injury or significant damage to the product.
- Page 6 Prior to servicing the product, disconnect the power and ensure that it cannot accidentally be reconnected. • Exodraft always recommends the use of a smoke alarm when a solid fuel open fire is installed. • If the Exodraft fan system has been designed for solid fuel/multi fuel installations, please ensure that the design meets the requirements of BS EN15287-1.
-
Page 7: Product Information
3112038_XTP150G_UK Product information XTP150G is a high-precision pressure transducer specially developed for gas systems. It can also be used with oil-fired or solid-fuel systems. In order to comply with the provisions of the Gas Appliances Directive 90/396/EEC: • XTP150G must be connected to an EBC22 or •... -
Page 8: Technical Specifications
Your energy. Optimized. Technical specifications Technical data 55,1 Fig. 1 Description XTP150G Ambient temperature -25 °C – +50 °C H x W x D [mm] 90 x 115 x 55 Storage temperature: -25 °C – +50 °C Weight 237 g... -
Page 9: Construction And Components
DIP switch (-) Valve (P2) Operating LED (+) Valve (P1) Status LED Zero-point calibration button Cable connector Connecting terminals Mounting holes Pressure transducer The XTP150G is certified by GASTEC and have the certification number PIN: 0063 BU1711 UK | 9... - Page 10 Your energy. Optimized. Key to fig. 2-A DIP switch Setting Function Factory setting Calibration enabled Calibration not possible Calibration possible ON RSN Not used Not used 1 2 3 4 Not used Key to fig. 2-B Operating LED Indication Function Flashing YELLOW Processor OK PIC # 1...
-
Page 11: Installation
If there is a risk of adverse effect from strong winds, the hose located inside the XTP150 can be removed from the (+) valve. Interfilter should be fitted to the external (+) valve. The filter is not supplied by Exodraft. -
Page 12: Electrical Wiring
Electrical wiring ATTENTION! Electrical wiring of the controller must be carried out in accordance with national legislation and regulations. Earth must always be connected. Terminals XTP150G is connected to the screw terminals as shown below. Terminal Description BUS connection BUS connection +24 V DC Supply in –... -
Page 13: Operation And Configuration
3112038_XTP150G_UK Operation and configuration Calibration should only be carried out if a positive value is registered on the 0–10 V output, when the connection hose is disconnected. How to calibrate the XTP150G sensor • Disconnect the connection hose • Set DIP switch 1 to ON (fig. 2-A) •... -
Page 14: Uk Conformity Assessed
UK Conformity Assessed UK Conformity Assessed Exodraft a/s Industrivej 10 DK-5550 Langeskov Hereby declares that the following products: XTP150G Were manufactured in conformity with the provisions of the following regulations: The Supply of Machinery (Safety) Regulations 2008 Electrical Equipment (Safety) Regulations 2016... -
Page 15: Declaration Of Conformity
EU-Vaatimustenmukaisuusvakuutus Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea EU Deklaracja zgodności Exodraft a/s Industrivej 10 DK-5550 Langeskov Erklærer på eget ansvar, at følgende produkter: Veklaart dat onderstaande producten: Hereby declares that the following products: Deklarerar på... - Page 16 DK: Exodraft a/s Industrivej 10 DK-5550 Langeskov Tel: +45 7010 2234 Fax: +45 7010 2235 info@exodraft.dk www.exodraft.dk SE: Exodraft a/s Kalendevägen 2 SE-302 39 Halmstad Tel: +46 (0)8-5000 1520 info@exodraft.se www.exodraft.se NO: Exodraft a/s Storgaten 88 NO-3060 Svelvik Tel: +47 3329 7062 info@exodraft.no...
