- Page 1 E-Flow User Manual V1.32...
-
Page 2: Table Of Contents
5. Application Scenarios and Solutions 6. System Configuration Software 6.1 Installation Preparation 6.2 Software Interface 6.3 Flow Meter Parameter Settings 6.4 Velocity Spectrum 6.5 History Record Appendix A Frequently Asked Questions Appendix B Shipping List E-Flow Radar Flow Meter Manual V1.24... -
Page 3: E-Flow Brief

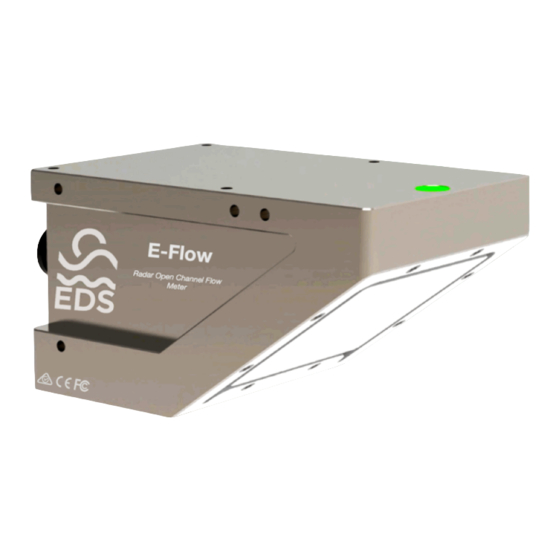

The E-Flow uses highly accurate and reliable radar planar microwave technology to capture the true velocity and depth of flow zero contact with the flow. With the simple software to configure your E-Flow you can record and measure flow in any channel shape, whilst sending measure flow, level, and velocity seamlessly over the 4G network to view in realtime on the cloud platform. -
Page 4: Principle Depth Of Flow Measurement
1.2.3 Flow Measurement Principle The velocity and level measurements recorded by the E-Flow sensor is used to calculate the flow rate. Flow rate (also known as Q, as the flow, or as throughput) is the amount of fluid moving through a channel or pipe in a period of time. -
Page 5: Specifications
7. The IP68 rating ensures years of hassle free operation. 8. Ultra low power consumption, solar power can be used, easy installation and maintenance-free; 9. Ultra-low power consumption sleep mode, 12V power supply current is less than 30uA. (E-Flow- R). - Page 6 As shown in the figure above, the flowmeter host consists of a flow velocity measurement sensor, a water level measurement sensor, a data transmission interface, and a wireless data transmission antenna (optional). E-Flow Radar Flow Meter Manual V1.24...
-
Page 7: Size & Dimensions
1.3.3 Size & Dimensions The appearance size without antenna is 160 × 100 × 83.2 (unit: mm) E-Flow Radar Flow Meter Manual V1.24... -
Page 8: Installation
2 Installation 2.1 Instrument installation method and direction E-Flow Radar Flow Meter Manual V1.24... -
Page 9: Site Selection
The measuring angle of the radar water level gauge is 8 °, and the launch angle of the radar velocity meter is 12 °, as shown in the figure below; The relationship between the diameter and distance of the circle is shown in the following table: E-Flow Radar Flow Meter Manual V1.24... - Page 10 2. For non-contact measuring equipment such as radar flowmeters, the installation points should avoid the following positions 1) Avoid any change in the direction of flow, try to ensure that the flow direction is parallel to the installation direction of the radar flowmeter E-Flow Radar Flow Meter Manual V1.24...
-
Page 11: Installation Precautions
④, the red dot ② of the cable plug is aligned with the red dot ① of the instrument interface, and insert it until you hear a snap. When unplugging, you can pull it out by holding the position of ③ in the cable and pulling back. E-Flow Radar Flow Meter Manual V1.24... -
Page 12: Operating Modes
For the wireless type, the E-Flow-W radar flow meter supports 4G wireless communication function. The data measured by the E-Flow radar flow meter can be reported to the central station server by setting the station address, communication port, and central station IP. -
Page 13: Technical Specifications
Operating temperature -30~80℃ Operating Voltage 7-32V / 5.5-32V (optional) DC power supply 12VDC input, working mode: ≤28mA standby mode: <1mA E-Flow-R (4G working current ≤ 80mA; NB-IOT working Working current current ≤ 30mA; sleep ≤ 30uA) Protection level IP68 Lightning protection level 160*100*80（mm）... -
Page 14: Application Scenarios And Solutions
2. Urban Drainage Network Monitoring Solution: The system consists of a radar flowmeter, a pressure water level gauge (mainly for monitoring the water level in the well during the full-tube state), RTU, wireless communication equipment, disposable lithium batteries, and mounting brackets. E-Flow Radar Flow Meter Manual V1.24... - Page 15 When the drainage pipe is in the full pipe state, the radar flowmeter is in a flooded state, stops working, the optional pressure water level sensor starts operating to record the water level data in the sewer in real time. E-Flow Radar Flow Meter Manual V1.24...
-
Page 16: System Configuration Software
③After the installation is successful, double-click the application icon on the desktop (as shown in the figure below) to run and enter the main interface. (Note: we will send the free RS485 to USB convertor and the matched driver and the system configuration software) E-Flow Radar Flow Meter Manual V1.24... -
Page 17: Software Interface
⑥ The vertical angle is used to display the angle between the current radar flow meter beam emission direction and the water flow direction in real time. After the radar flowmeter is installed horizontally, the angle is about 55°±1°; E-Flow Radar Flow Meter Manual V1.24... -
Page 18: Flow Meter Parameter Settings
"write parameter" after setting; ② The distance from the water level radar sensor to the bottom of the tank minus the air height is the water level to be measured; E-Flow Radar Flow Meter Manual V1.24... - Page 19 ⑪ Sleep time is to set the time for the flow meter to enter the low-power sleep mode, and stop measurement during this period. Measure and accumulate the flow again after the sleep time is automatically awakened. It is generally used in low-power application environments and the unit is minutes; E-Flow Radar Flow Meter Manual V1.24...
-
Page 20: Velocity Spectrum
⑭ Set the still water height and click "write" to set the still water height. 6.4 Velocity Spectrum Click Get Spectrum, you can view the signal quality of the velocity radar sensor for on-site debugging. E-Flow Radar Flow Meter Manual V1.24... -
Page 21: History Record
Click the history menu to see the history data list, click the list to see the curve data of this measurement, and click export to export and save the curve data as an Excel or xml file. E-Flow Radar Flow Meter Manual V1.24... -
Page 22: Appendix A Frequently Asked Questions
(such as strong wind). 7. Question: I am measuring the water flow velocity which is lower than 0.60m/s visually, but the reading is higher than expected. E-Flow Radar Flow Meter Manual V1.24... -
Page 23: Appendix B Shipping List
Try to point the radar speed probe to the same place for measurement. 8. Q: Why did the database not receive any data? (E-Flow-R) A: 1) Check whether the power supply voltage is 7-32VDC, and re-power on after confirmation;... - Page 24 E-Flow Radar Flow Meter Manual V1.24...
