WUNDA
WundaSmart User Guide
Now you've installed your WundaSmart controls, you have the ability to control your
heating and comfort more that ever before! This guide will help you find the best
way to use WundaSmart for you.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WundaSmart and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wunda WundaSmart

  • Page 1 WUNDA WundaSmart User Guide Now you’ve installed your WundaSmart controls, you have the ability to control your heating and comfort more that ever before! This guide will help you find the best way to use WundaSmart for you.
  • Page 2 The first thing to remember is, every situation is different and depends on a number of variables. For instance; windows, insulation, heat source, occupants. The best thing about WundaSmart is that it’s packed with tools to help you efficiently use your heating, regardless of your situation.
  • Page 3 WUNDA Pre-Defined Temperatures For quick and easy changes WundaSmart has 3 predefined temperatures which are used throughout the whole system. Blue - Reduced Green - Eco - Comfort You can quickly change a rooms temperature using these presets from the main ‘rooms’...
  • Page 4 Adaptive Start This function saves you guessing your room heat up time and turning on the heating early. WundaSmart tracks your room heat up time over a number of days and takes it into account for it’s next heating period.
  • Page 5 WUNDA Common approaches to using WundaSmart: 1. A Planned Schedule Start with your bedrooms. Maybe you want your bedrooms to be warm for when you wake up and get ready in the morning and then before you go to bed at night? So start off scheduling 1 hour in the morning and maybe 1 hour in the evening.
  • Page 6 WUNDA 2. No schedule For those who only want heat when they need it, a no schedule approach might be best. Only calling for heat via the app or manually when you want it. 3. Set a Schedule and set up Geo-Fencing For users who’s routine is unpredictable, setting an ideal schedule for the day and...

  • Page 7: Table Of Contents

    WUNDA Contents Changing Temperature In the App Changing Temperature Manually Boost Buttons Scheduling Geo Fencing Settings and Functions Share your system with others...

  • Page 8: Changing Temperature In The App

    WUNDA Changing Temperature in the App Rooms Screen You will find the quick switch in your rooms list, it’s great for when you want to quickly manually adjust the temperature for the whole house. This is where the current room...
  • Page 9 WUNDA Choose Your Temperature Move the dial to change the temperature Eco Setting Comfort Setting Reduced Setting...
  • Page 10 WUNDA Choose Your Time Move the dial to change the time Press here to choose when the next change will occur...

  • Page 11: Changing Temperature Manually

    WUNDA Changing Temperature Manually Smart Thermostat Simply adjust the temperature by using the + and – buttons. Any change in temperature set here will be active for 2 hours unless overridden by a new action from your app or a different device.
  • Page 12 WUNDA Smart Radiator Head If your Smart Radiator Head has buttons, you can use them to move through your preset temperatures in the app. The different colours relate to each temperature in the app. Blinking Blue – Closed (Off) Blue –...

  • Page 13: Boost Buttons

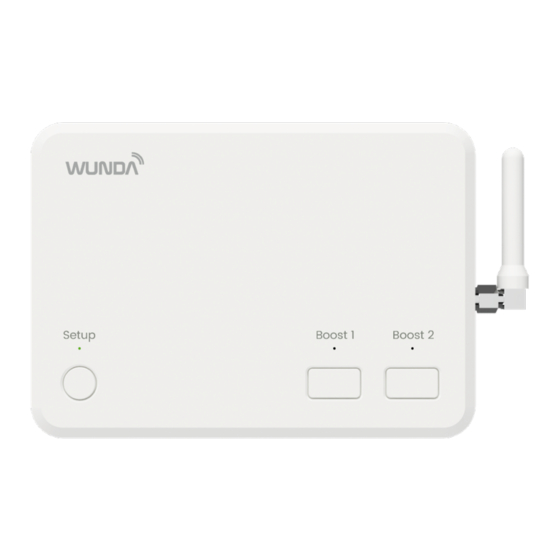

    WUNDA Boost Buttons For quick and easy use if you don’t have your phone or for members of your household who prefer not to use apps, there are two buttons on your Smart HubSwitch where you can boost the heating from.
  • Page 14 WUNDA Set Up Boost Buttons First you need to set up the boost buttons. Go to System Settings in your system menu. Choose, ‘Boost’ - here you can add rooms or hot water to Boost 1 or Boost 2 and choose how long you want to boost the heating or hot water for.

  • Page 15: Scheduling

    WUNDA Scheduling Here you can copy a schedule from another room Here you can copy the below schedule to another room Adaptive Start, starts your heating in time to reach the desired temperature at the beginning of the scheduled period. The thermostat will learn the room’s warm up...
  • Page 16 If you schedule a 4 hour period at 20 degrees, WundaSmart will only heat when necessary to achieve that, allowing you to make use of natural heat via solar gain or room occupancy.
  • Page 17 WUNDA Chart Screen Tap to see previous 7 days Hours Humidity %...

  • Page 18: Geo Fencing

    WUNDA Geo-Fencing WundaSmart’s Geo-Fencing is perfect for people who have more than one user in their property and want to save money through fool-proof automation. This function allows the owner / admin of the property to set an on/off action for each room.
  • Page 19 WUNDA When the user returns, the room will return back to schedule, go to Eco or Comfort mode, depending on the admin’s choice. If there are shared rooms by multiple Users, then the actions will only trigger when the last user leaves their set Geo-Fence.
  • Page 20 WUNDA Step 1 Register your phone Step 2 Set your Home Location Name your device Ensure the pin is pinned to your Set your Geo-Fence distance location Step 3 Set your room actions (this can Step 4 Pin your device to rooms...

  • Page 21: Settings And Functions

    This function helps you save more energy, it automatically turns your heating off when your WundaSmart devices sense a drop in temperature in your room and will cancel the heating in the room for a certain amount of time. The...
  • Page 22 This section is where you pair your room to the correct heating channel in your HubSwitch, or if you have underfloor heating – it is where you can configure your room to your WundaSmart Connection Box channels.
  • Page 23 WUNDA System Settings This page shows you general information you may need if you ever need to do some troubleshooting. Here you can view your Device Serial Number, Software and Hardware versions. You can change your Date and Time Zones and view your WiFi status.
  • Page 24 WundaSmart Radiator Heads. Here you can turn on holiday mode and schedule a period of time for WundaSmart to pause your heating and hot water schedules until the end date. It will revert to antifreeze settings.
  • Page 25 Settings - Mode Options This function helps you save more energy, it automatically turns your heating off when your WundaSmart devices sense a drop in temperature in your room and will cancel the heating in the room for a certain amount of time. The...
  • Page 26 As well as a higher level of control within your boiler, when you connect using Opentherm the WundaSmart app will also alert you if there are any errors or problems with your boiler. Heating and Opentherm...
  • Page 27 Here you can set the temperature for your domestic hot water. You can see here it is set to 45 degrees C. When you have connected your WundaSmart system via Opentherm, you can see the setpoint for your hot water (top left). You can also see the actual current temperature that is being used (top right).
  • Page 28 WUNDA Settings - Installation & More Here you are shown a list of devices and their locations. You can also identify a device if it has been moved from the room it was originally paired with. You can also add a new device Smart Switch or Connection Box.
  • Page 29 WUNDA Settings - Transfer Code & Share This function is for transferring ownership of a system to a different use. This is useful when an installer has set up everything for the user and needs to transfer ownership. Note: Once the system is transferred, you will no longer have access to the system.

  • Page 30: Share Your System With Others

    WUNDA Settings - Transfer Code & Share Share your System with others Only an Admin or the Owner can share with other users. Make sure the person you want to share with has downloaded the App and setup an account. Go to ‘System Settings’ then click on ‘Share’ under ‘Installation & More’.
