DANLERS TLSW HB Installation Notes

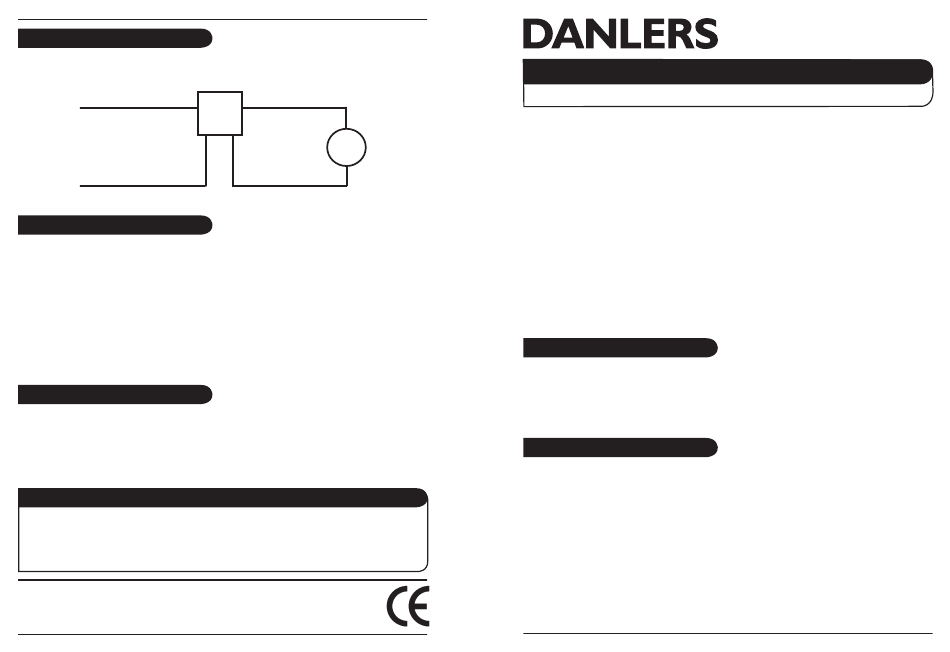

Wiring diagram

Heater Boost
LIVE
L
~ 230 Vac
NEUTRAL

Troubleshooting

The heater boost resets itself off:
• The supply to the heater boost switch must be permanent, it
should not be wired in series after another timer device.
The main heating timer is not functioning:
• The heater boost switch can only be wired in parallel with relay
output timer units, otherwise the output of the other timer may be
damaged.

Precautions and Warranty

This product conforms to BS EN 60669-2-1.
Please ensure the most recent edition of the appropriate local wiring regulations are observed
and suitable protection is provided e.g. 6 amps over current, 1kV over voltage. Please ensure
that this device is disconnected from the supply if an insulation test is made.
This product is covered by a warranty which extends to 5 years from the date of manufacture.

Products available from DANLERS

• PIR occupancy switches • Daylight linked dimmers • Manual high frequency dimmers
• Photocells • Radio remote controls • Time lag switches • Outdoor security switches
• Dimmers • Heating, ventilation and air-conditioning controls • Bespoke / O.E.M. products
Please call for more information or a free catalogue, or visit our website.
DANLERS Limited, Vincients Road, CHIPPENHAM, Wiltshire, SN14 6NQ, UK.
Telephone: +44 (0)1249 443377 Fax: +44 (0)1249 443388
E-mail: sales@danlers.co.uk Web: www.danlers.co.uk
Company Registered Number 2570169 VAT Registration Number 543 5491 38
16/03/12
SL
N
LOAD
NEUTRAL
INS992 TLSWHB

Plated heater boost switch

TLSW HB TLSW HB BP
DANLERS plated heater boost switch can be mounted onto a standard
back box and needs a neutral connection. It can switch a resistive
heating load up to 3kW.
The plate incorporates four red LEDs, each representing a different
remaining time range. Each time the button is pressed the remaining
time advances to the next value, giving a longer time lag. If the button
is pressed when the fourth LED is lit the load is switched off.
The four time lags periods are as follows:
TLSW HB Marked plate with ¼, ½, 1 and 2 hour periods
TLSW HB BP Blank plate with ¼, ½, 1 and 2 hour periods
TLSW HB BP1246 Blank plate with 1, 2, 4 and 6 hour periods
The heater boost switch can be wired in parallel with any other relay
output timers as a manual override.

Loading

These switches can only be connected to a 230V, 50Hz ac supply.
They can switch up to 13 amps (3000W) of Resistive loads
Or they can also switch up to 1 amp (250W) of fans
For larger loads they can be used to operate a contactor.

Installation procedure

1. Please read these notes carefully before commencing work.
In case of doubt please consult a qualified electrician.
Make sure the power is isolated from the circuit.
Remove the top and bottom lugs if using a 4 lug metal back box.
2. The TLSW HB switches have a terminal block on the reverse, which
should be connected as shown in wiring diagram overleaf:
L Live input
SL Switched Line output
N Neutral (two neutral terminals are available)
3. Turn on the supply and test the function of the switch.
Installation notes
TLSW HB BP1246
