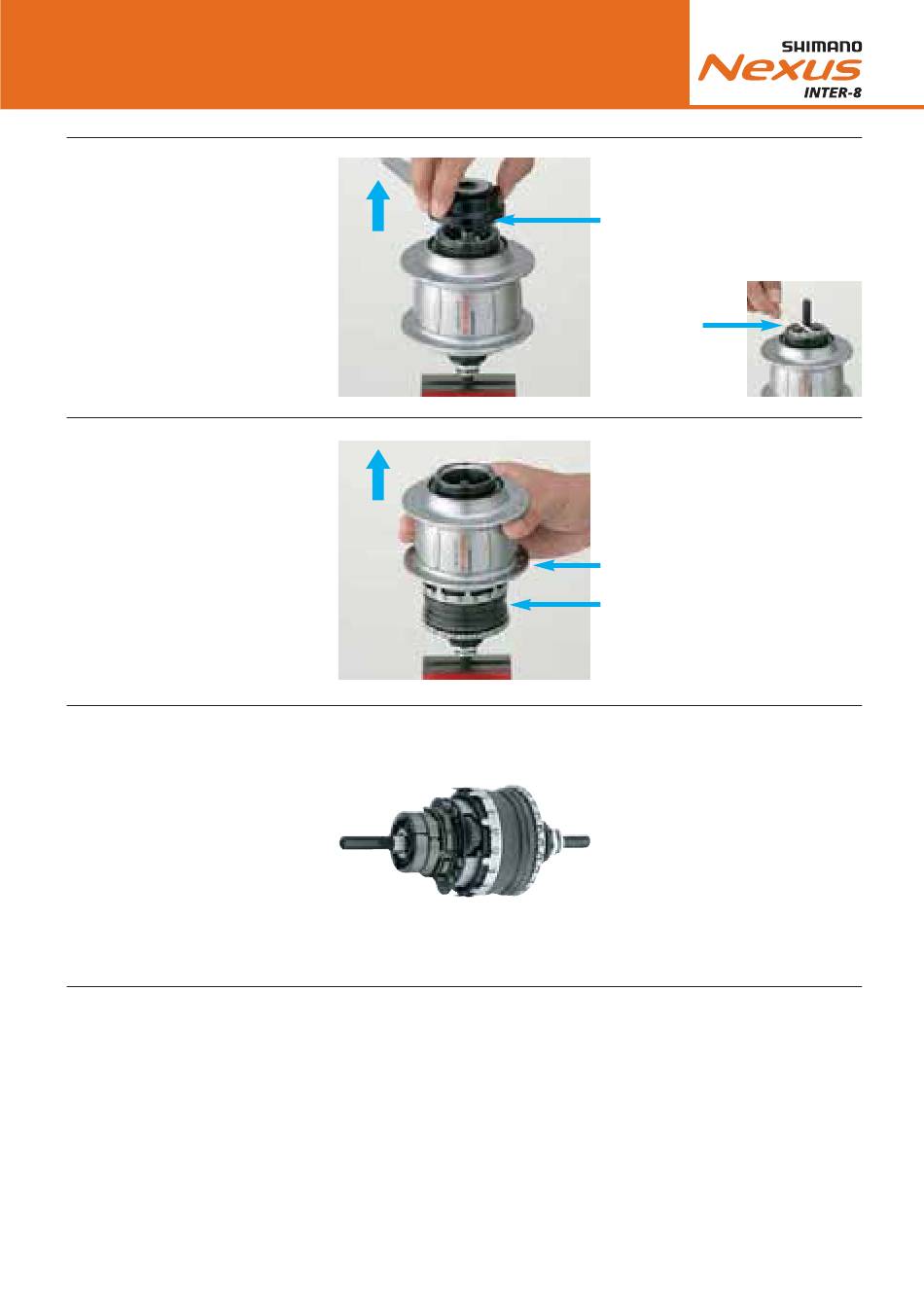

3.
Remove the brake arm unit
and ball retainer B from the
hub axle.
4.
Remove the hub shell.
Now it can be replaced
with the new internal
assembly.
Disassembly and assembly can be
carried out quickly.
Part No. 36P 98010
Brake arm unit
Ball retainer B
Hub shell
Internal assembly
15
