streamer YH18 Series Manual

LED Emergency converter
YH18 Series Self-test

Dimension

179mm

Relevant standard

IEC 61347-1
IEC 61347-2-7
EN 62034
EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 62493
AS/NZS 60598-2-22
AS2293.3
18
180min LVLE
30 mm
21 mm
220-240

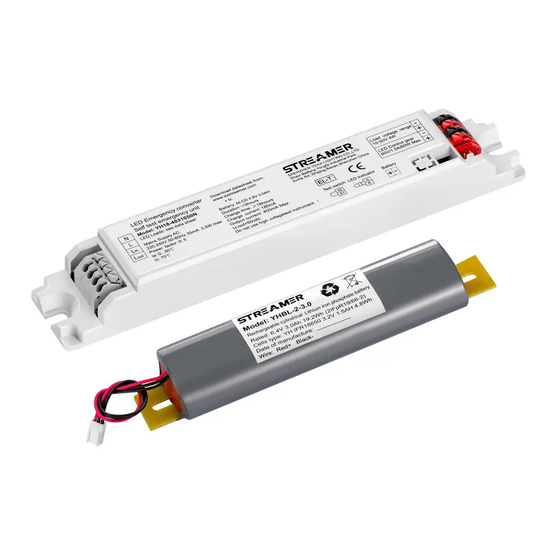

Product description

- Self-test function.
- LED emergency converter that can transfer standard LED fitting into
emergency LED fitting.
- Used with Lithium iron phosphate battery.
- Suits for LED fitting with external led driver.
- Accessary: test switch and charge indicator.

Applications

-Use in damp and dry environment.
- For use on a wide range of LED fittings to convert them from standard
to emergency fitting.
- LED fitting would be maintained emergency fitting if standard
(main powered) driver, emergency lighting kit and battery are all retained
in the circuit. LED fitting would be non-maintained emergency fitting
if only emergency conversion module and battery are retained in the circuit.
- Additional Relay that can control standard LED driver.
- Deep discharge protection.
- Connector between emergency kit and battery has the function of
polarity reversal protection.
- Ambient range ta 0....50℃
- IP20 protection, relies on end-product enclosure for protection against
accidental contact live parts.
- Not intended for use in luminaries for high-risk task area lighting.
- Full warranty 3 years.
1/6
Data sheet 02 / YH18 Basic self-test
