streamer LODESTAR CL25 Operating Manual

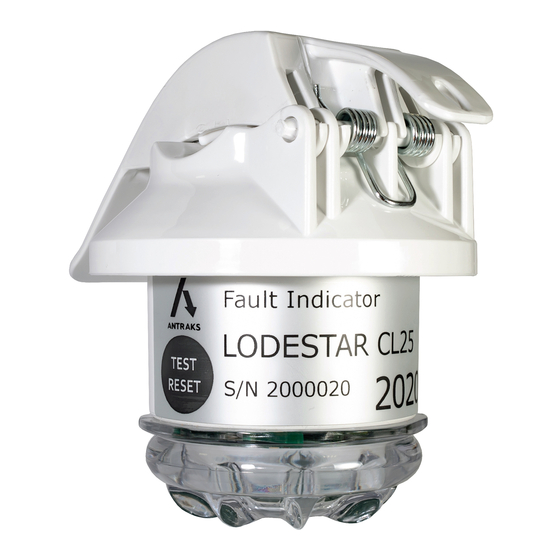

Conductor mounted fault indicator for overhead lines
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
LODESTAR CL25
Conductor Mounted Fault Indicator
for Overhead Lines
Doc ref: OM_LOD25_EN
Publishing date: 31.08.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LODESTAR CL25 and is the answer not in the manual?

Questions and answers

Summary of Contents for streamer LODESTAR CL25

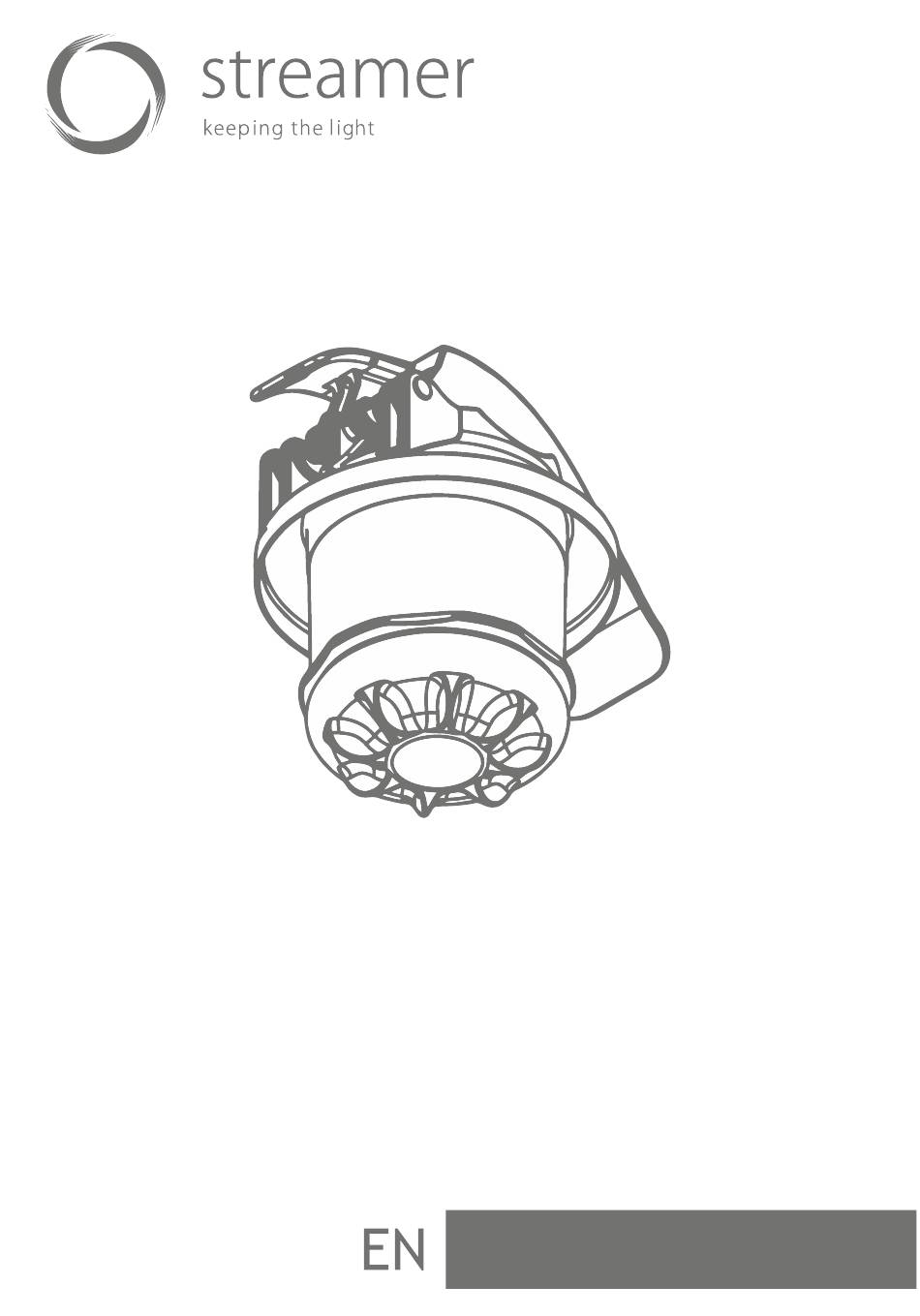

  • Page 1 Operating Manual LODESTAR CL25 Conductor Mounted Fault Indicator for Overhead Lines Doc ref: OM_LOD25_EN Publishing date: 31.08.2015...

  • Page 2: Danger & Warning

    Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 DANGER & WARNING For personnel and product safety please read Risk for electrocu on, burns or explosion the contents of this operating manual The device must be installed and served by џ carefully before installation. qualified personnel only;...

  • Page 3: Technical Characteristics

    Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 TECHNICAL CHARACTERISTICS LODESTAR CL25 MODEL REFERENCE FO.LO.CL40.00.WW INSTALLATION conductor OPERATING VOLTAGE <70kV MIN LOAD CURRENT MIN FAULT SENSING ADJUSTABLE P-P FAULT LEVEL 25 to 1000A RESPONSE TIME, ADJUSTABLE 20ms BREAKING WAITING TIME 200s...
  • Page 4 Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 ARRANGEMENT ON THE LINES ю A=R=L1 B=S=L2 C=T=L3 э...
  • Page 5 ю Сheck! SET of 3 PRODUCTS MAGNET: 1 pc every 5 sets Operating Manual Passport LODESTAR CL25 Conductor Mounted Fault Indicator Conductor Mounted Fault Indicator for Overhead Lines for Overhead Lines Doc ref: OM_LOD_EN Doc ref: OM_LOD_EN Publishing date: 31.07.2015 Publishing date: 31.07.2015...
  • Page 6 Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 SETUP (1st time and after any setting change) yellow MAGNET: white 5 sec single BLINK white triple BLINK STOP MAGNET every 5 sec blink BLINKS SEQUENCE Possible indica on via light signals Light combina on Type of loca on of the fault 1 white impulse once Transient fault...
  • Page 7 Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 CONFIGURATION LODESTAR CL (or CF) 25 Standard/factory settings ON OFF 1 - 3 Differen al threshold 4 - 5 Absolute threshold Transient fault Inrush resistance 8-9 Reset me-out 9 10 Reset with line restora on 1 - 3 Differen al threshold...
  • Page 8 Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 INSTALLATION OF THE LODESTAR HOT STICK TOOL ref: FO.LO.HSTI.00.WW...

  • Page 9: Maintenance

    Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 TEST RESET MANUALLY with MAGNET with MAGNET follow instructions on page 6 pictures 1 - 4 MAGNET: yellow white 5 sec single BLINK hold for 5 seconds white triple BLINK STOP MAGNET every 5 sec blink MAINTENANCE after 5 years: 1 time / year visual check...
  • Page 10 Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 FOR NOTES...
  • Page 11 Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015...

  • Page 12: Contact Details

    Doc ref: OM_LOD25_EN • Publishing date: 31.08.2015 CONTACT DETAILS Streamer International AG office@streamer-electric.com www.streamer-electric.com Asia - Pacific Regional Office: Masanserstrasse 17 Asoke Towers - The Pride, Room 203 CH-7000 Chur Switzerland 219/2 Sukhumwit 21, Asoke Phone: +41 81 2500525 Klong Toel Nua, Wattana • 10110 Bangkok - THAILAND Fax: +41 81 2500526 Phone: +66 (0)2 1209600 •...
