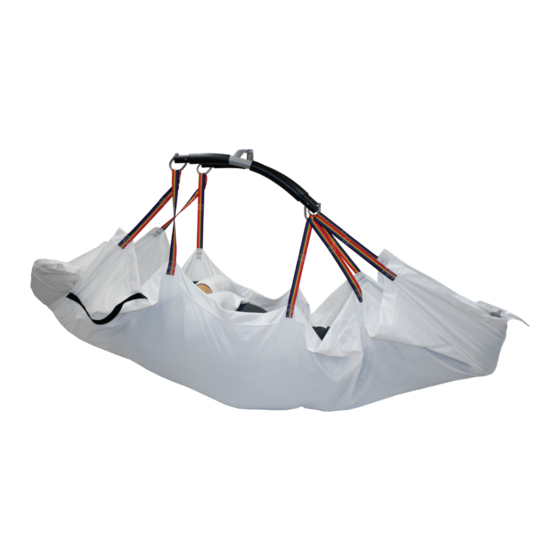

Alpha Modalities A-TSLSPU Manual

Strap 1
Strap 2
Strap 3
Strap 4
Strap 5
NOTE: The attachment configurations shown are a general guideline. Please adhere to your
hospital's policy and use your clinical judgment as to what best meets your patient's needs.
Attach two straps closest to patient's middle area: close to patient's shoulder and hip
Updated 01/20
Your Sling Source for Safe Patient Mobilization
1111 South 344th Street, Suite 205, Federal Way, WA 98003

USING THE TSL TO TURN PATIENT

Typically strap 2
•
Part Number
LOOP
Typically strap 3
Page 1
•
800.273.5749 www.alphamodalities.com
A-TSLSPU
(4pt hanger bar)
Size
A-TSLSPU 45"W x 86"L
A-TSLSPUX 55"W x 86"L
• If needed, a chuck may be
placed between patient and sling.
• Label should be at patient's foot.
• Pillow may be placed
between legs for comfort.
Max Load
454kg / 1000lb
500kg / 1100lb
