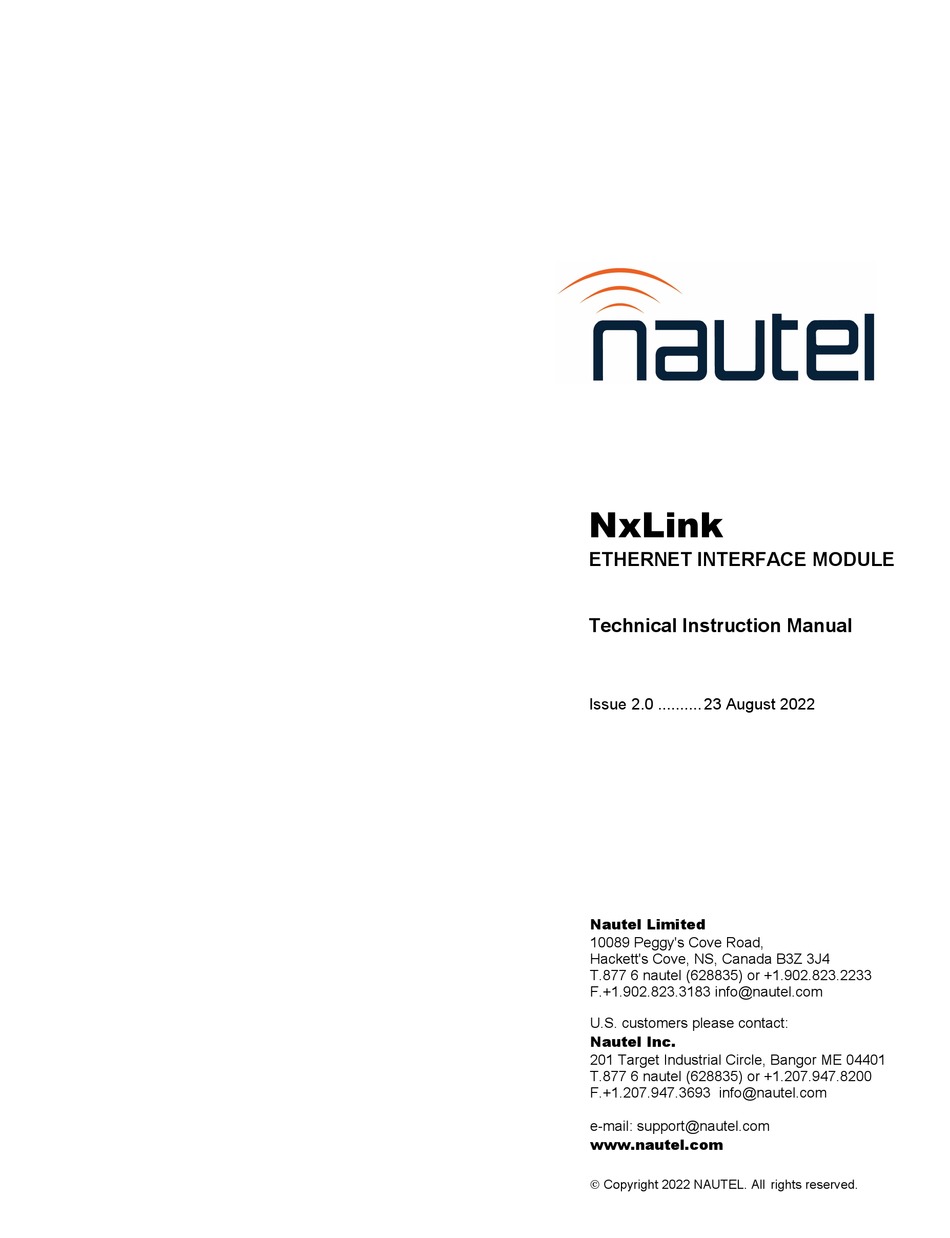

NxLink

ETHERNET INTERFACE MODULE

Technical Instruction Manual

Issue 2.0 .......... 23 August 2022

Nautel Limited

10089 Peggy's Cove Road,

Hackett's Cove, NS, Canada B3Z 3J4

T.877 6 nautel (628835) or +1.902.823.2233

F.+1.902.823.3183 info@nautel.com

U.S. customers please contact:

Nautel Inc.

201 Target Industrial Circle, Bangor ME 04401

T.877 6 nautel (628835) or +1.207.947.8200

F.+1.207.947.3693 info@nautel.com

e-mail: support@nautel.com

www.nautel.com

Table of Contents

Need help?

Do you have a question about the NxLink and is the answer not in the manual?

Questions and answers

Summary of Contents for Nautel NxLink

Page 1 Hackett's Cove, NS, Canada B3Z 3J4 T.877 6 nautel (628835) or +1.902.823.2233 F.+1.902.823.3183 info@nautel.com U.S. customers please contact: Nautel Inc. 201 Target Industrial Circle, Bangor ME 04401 T.877 6 nautel (628835) or +1.207.947.8200 F.+1.207.947.3693 info@nautel.com e-mail: support@nautel.com www.nautel.com  Copyright 2022 NAUTEL. All rights reserved.
Page 3 If the Buyer receives a replacement module, as part of Nautel’s module exchange program, the old module must be returned to Nautel within 30 days of receipt of the new module, at the buyers expense. If the old module is not received after 30 days, the customer will be invoiced. The buyer is responsible for installing the replacement/repaired module in the transmitter.
Page 4 Exercise of such warranty shall be between the Buyer and the third-party provider. 13. Nautel provides telephone and email support for its products for the life of the product at no charge. After the warranty period, parts and on-site support for the equipment are offered at a rate to be determined upon request.
Page 5 Nautel's field service department provides telephone technical assistance on a 24 hour, seven days a week basis. Requests by other media (facsimile or e-mail) will be responded to the next working day if received after Nautel's normal working hours. Contact the appropriate field service centre from the following: U.S.A.
Page 7: Table Of Contents
OPERATION SOFTWARE UPGRADE List of Figures NxLink Hardware NxLink Main Page NxLink Main Page – Logged In Device Setup Page Setup Equipment Page – Configure Setup Equipment Page – Configure, Customize Device Setup Page – Email Configuration User Administration Page User Administration Page –...
Page 9 Release Control Record Issue Date Reason 23 August 2022 Supports new Netburner device hardware (part number UB121) and NxLink SW 2.0.0 software. NxLink Technical Instruction Manual Aug.23.22...

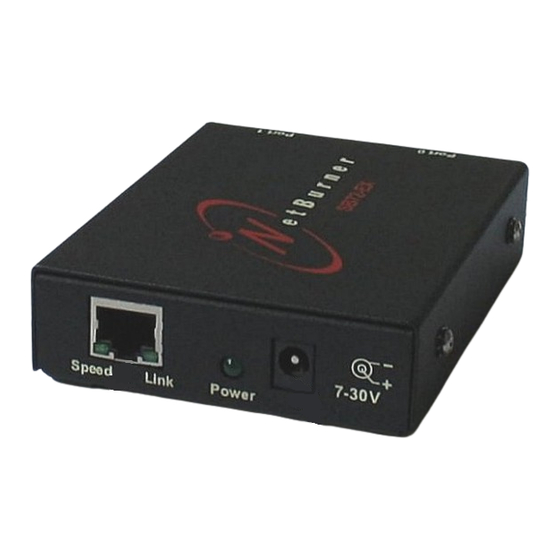

Page 11: Overview
100 Mb LAN. The link indicator flashes with LAN activity. Port 0 is used for device configuration (network parameters). Port 1 is used for equipment communication. The NxLink software can be easily upgraded over the LAN using an FTP client, or with a direct serial connection to the device (using a terminal program).
Page 13: Initial Setup And Configuration
For DHCP networks do not press ‘A’ in step (c). After 20 s, the DHCP defined IP address should appear on the terminal screen and should repeat every 10 s thereafter. (c) Plug the serial port of the PC into Port 0 of the NxLink using a suitable 9-pin null modem serial cable of sufficient length.
Page 14 (d) Connect the PC to the LAN, ensuring that the IP address and mask are appropriate. (e) Open a web browser and enter the URL of the NxLink. For example, if the IP address was 123.456.7.89 then use http://123.456.7.89 for the NxLink address in the browser. To use single column, simply append ‘\pda’...
Page 15: Configuration
(a) Click on the Login link and use a username/password that provides full control of the NxLink. If this is the first time that the NxLink is being configured, use the default username/ password of “root/nautel”. This account has full permissions and can be used for initial setup.
Page 16: Setup Link
2.3 SETUP LINK 2.3.1 Connected Equipment Settings All equipment which is to be controlled and monitored by the NxLink must be set up in this dialog. The primary device MUST be the transmitter or system controller that the NxLink is serially connected to.
Page 17: Setup Equipment Page - Configure
NxLink will wait for a response from the transmitter after the NxLink sends a request. If the NxLink is directly connected to the transmitter using a serial cable, do not modify the Serial Timeout Interval setting from the default value. If the NxLink is connected to the transmitter using a high latency link (e.g., wireless GSM modem), modify...
Page 18: Setup Equipment Page - Configure, Customize
An example is Active Faults, which will show all faults. Click Submit (bottom of screen) to save changes or click Reset (bottom of screen) to restore previously saved settings. Figure 2-5: Setup Equipment Page – Configure, Customize NxLink Technical Instruction Manual Page 2-6 Issue 2.0 Section 2 Configuration...
Page 19: Email Configuration
Enter the server name and an email address (which will appear in emails from the NxLink as the sender). If the email server requires login, check the Login Required box and enter a username and password to the email server.
Page 20: Users Link
Any other permission level will only show the logged in user as an active hyperlink. Clicking on a user hyperlink allows user configuration to be modified as shown in Figure 2-8 and 2-9. Figure 2-7: User Administration Page NxLink Technical instruction manual Page 2-8 Issue 2.0...
Page 21: User Administration Page
In the example shown in Figure 2-9, user1 has been selected. All functions (Remove User, Set Permissions, Change Password and Change Email Settings) would apply to user1. NxLink Technical Instruction Manual Page 2-9 Section 2 Configuration...
Page 22: User Administration Page - Registered User Settings (Full)
Figure 2-9: User Administration Page – Registered User Settings (Full) NOTE The Email Address field in Change Email Settings supports only one email address per user. NxLink Technical instruction manual Page 2-10 Issue 2.0 Section 2 Configuration...
Page 23: Operation
For example, if the equipment is in Local mode, some controls will not be allowed. When viewing any of the Status pages, the NxLink will automatically refresh them based on the Status Refresh Interval setting (see Section 2.3.1), or whenever a change is submitted.
Page 24: Event Log Page
Selecting the “Save” tab allows a snapshot of the event log, at its current state, to be saved. The file may be saved as plain text on the disk of the machine being used to browse the device, or alternatively, be sent to an Email recipient. See Figure 3-3. NxLink Technical Instruction Manual Page 3-2 Issue 2.0...
Page 25: Save Page
Figure 3-3: Save Page Selecting “About this equipment” displays information about the device being monitored. Information includes equipment type and software version(s). See Figure 3-4. YOUR-FM YOUR-FM Figure 3-4 About This Equipment NxLink Technical Instruction Manual Page 3-3 Section 3 Operation Issue 2.0...
Page 27: Software Upgrade
Other FTP clients such as Ipswitch WSFTP (see Figure 4-2) may be used instead of the command line type FTP application. The NxLink will re-boot upon closing the FTP session and will restart running the upgraded software. Unless specifically mentioned in Nautel’s release notes, a software upgrade will not result in the loss of any previously entered equipment or user information.
Page 28 Figure 4-1: Typical FTP Session Figure 4-2: Ipswitch WSFTP Client NxLink Technical Instruction Manual Page 4-2 Issue 2.0 Section 4 Software Upgrade...
