Summary of Contents for Coulomb Technologies ChargePoint CT500-DSTAND

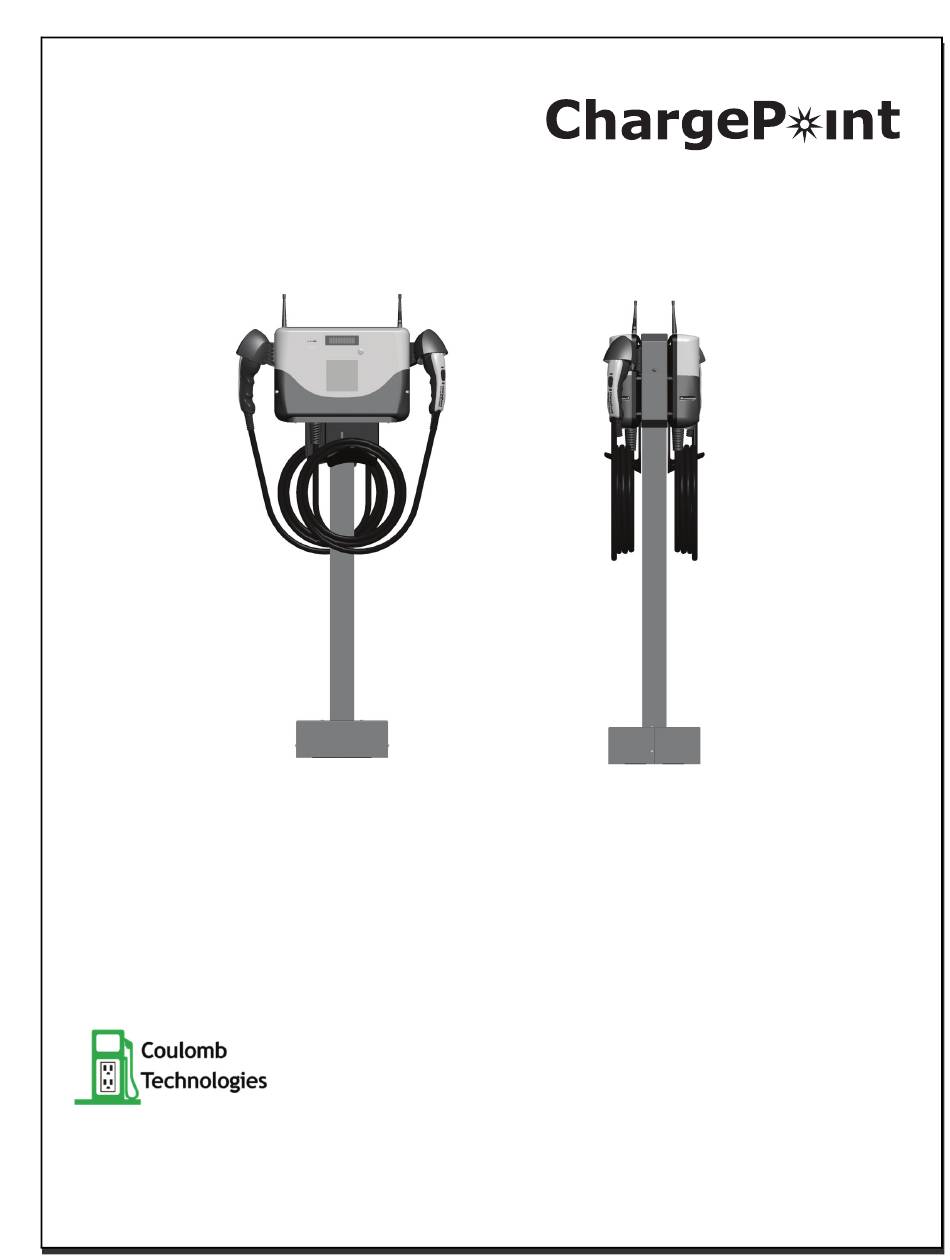

- Page 1 ® by Coulomb Technologies D-Stand Installation Guide Coulomb Technologies Inc. 1692 Dell Ave. Campbell, CA 95008-6901 USA US toll free: +1-877-370-3802 www.coulombtech.com www.mychargepoint.net Part Number: 75-001061-01 Revision: 1.0...
- Page 2 Copyright and Trademarks ©2011 Coulomb Technologies, Inc. All rights reserved. This material is protected by the copyright laws of the United States and other countries. It may not be modified, reproduced or distributed without the prior, express written consent of Coulomb Technologies, Inc. CHARGEPOINT is a U.S.
-
Page 3: Table Of Contents
Contents Introduction Before installing the D-Stand ............................ 1-1 Specifications................................1-1 Installation Instructions Before you start................................2-1 Overview of steps............................... 2-1 Step 1 - Prepare installation site ..........................2-2 Step 2 - Check box for correct contents ........................2-3 Step 3 - Attach coupler to charging station(s)......................2-4 Step 4 - Attach mounting box to pole assembly ...................... -
Page 5: Introduction
Introduction This document provides step-by-step instructions on how to install a Coulomb Technologies D-Stand. Before installing the D-Stand The instructions provided in this guide assume that the appropriate wiring, circuit protection, and metering is in place at the installation location. Before installing you must also: •... -
Page 7: Installation Instructions
Installation Instructions Before you start You will need: Installer-supplied components (wiring conduit and 3 or 4 J-bolts): • D-Stand components (see page 2-3) • 3 or 4 J-Bolts with matching nuts and washers: ½ ” (12.7 mm) thread diameter, length must comply with local codes (see page 2-2) •... -
Page 8: Step 1 - Prepare Installation Site
ChargePoint® Charging Stations Step 1 - Prepare installation site Install J-Bolts and conduit into concrete Conduit must extend at the installation site. 12-24” (30-61 cm) above the concrete (check local The D-Stand can be mounted using codes) either three or four J-Bolts. Using four J-Bolts is the preferred mounting method. -
Page 9: Step 2 - Check Box For Correct Contents
” screws and washers (8) • Coupler assemblies (2) Coupler assemblies • Foam bushings (2) Foam • Conduit cover* bushings ® by Coulomb Technologies • Two-piece skirt with: - #10 x ½” screws (4) 5/8” screws • Mounting template washers D-Stand • Installation Guide... -
Page 10: Step 3 - Attach Coupler To Charging Station(S)
Step 3 - Attach coupler to charging station(s) Attach a coupler to each charging station as shown. NOTE: The Coulomb Technologies’ CT500 family of charging stations have four conduit openings, but only the left rear opening is used with the D-Stand. You will need to remove the cover from this opening and attach the coupler, as shown. -
Page 11: Step 4 - Attach Mounting Box To Pole Assembly
Installation Instructions Step 4 - Attach mounting box to pole assembly Slide the mounting box over the pole The two brackets inside the assembly until it is fully seated. mounting box are designed to fit over the top of the pole Fasten using the two hex screws and tooth washers as shown, and tighten to 8 ft-lbs Fasten with the longer... -
Page 12: Step 5 - For Single Station Installations Only - Attach Conduit Cover
ChargePoint® Charging Stations Step 5 - For single station installations only - attach conduit cover If you are installing only one station onto the D-Stand, you will need to cover the unused conduit opening on the mounting box. Skip this step if you are installing two stations. Using a straight screwdriver, loosen the screw on the conduit cover (do not remove), then insert the rectangular section through the... -
Page 13: Step 6 - Run Wiring Into Mounting Box
Installation Instructions Step 6 - Run wiring into mounting box Run the wiring up through the pole. TIP ! This is easier to accomplish with the D-Stand assembly laying on its side. Run wiring from the stub-up through the bottom of the pole, and then place the D-Stand over the stub-up and the J-Bolts. -
Page 14: Step 7 - Mount Pole Assembly
ChargePoint® Charging Stations Step 7 - Mount pole assembly Ensuring that all five wires are pulled through the pole assembly, place the pole assembly over the wiring conduit and attach its base plate to the J-Bolts using the installer-supplied nuts and washers, as shown. -
Page 15: Step 8 - Mount Charging Station(S)
Installation Instructions Step 8 - Mount charging station(s) Mount each charging station to the D-Stand using the supplied screws and washers (four for each charging station). For detailed instructions on how to install the charging station, refer to the charging station’s installation guide NOTE: •... -
Page 16: Step 9 - Connect Ground Wires
ChargePoint® Charging Stations Step 9 - Connect ground wires Connect the main Ground wire to the center hole on the D-Stand’s grounding Connect main ground block, as shown. wire to center hole. Then connect a 20” ground wire to each side hole on the D-stand’s grounding block. -
Page 17: Step 10 - Connect L1 And L2 Wiring To Charging Station(S)
Installation Instructions Step 10 - Connect L1 and L2 wiring to charging station(s) Connect the 240 VAC L1 and L2 wires to each charging station’s terminal block as described in the charging station installation guide. Strip wires .3” (7.6 mm), insert in terminal block as shown, and tighten screws to 18 ½... -
Page 18: Step 11 - Install Top Cover
ChargePoint® Charging Stations Step 11 - Install top cover Place the top cover over the mounting box and fasten to both sides using the two supplied security screws, as shown. The top cover includes four pre-drilled holes. These holes allow a sign to be installed on top of the D-Stand. -
Page 19: Step 12 - Install Skirt
Installation Instructions Step 12 - Install skirt Align the two portions of the skirt onto the D-Stand’s base plate as shown. The tabs on the bottom of each skirt portion must slide under the base plate to ensure that the skirt can not slide up the pole. -
Page 21: Appendix A: Limited Product Warranty
LIMITED PRODUCT WARRANTY This Limited Product Warranty applies to you, a customer who has purchased COULOMB’s ChargePoint™ Networked Charging Stations and/or related products (“Products”) from COULOMB TECHNOLOGIES, INC. (“COULOMB”) or one of its authorized distributors and not for resale. LIMITED ONE-YEAR WARRANTY Subject to the exclusions from warranty coverage set forth below, COULOMB warrants that the Product will be free from any defects in materials and/or workmanship (the “Limited Warranty”) for a period of one (1) year after the date of the initial... - Page 22 ChargePoint® Charging Stations Third Party Products The above Limited Warranty and Five-Year Extended Warranty are exclusive of products manufactured by third parties (“Third Party Products”). If such third party manufacturer provides a separate warranty with respect to the Third Party Product, COULOMB will include such warranty in the packaging of the COULOMB Product.
- Page 23 COULOMB. The Limited Product Warranty is not transferable by you to anyone else. All inquiries or claims made under this Limited Product Warranty must be sent to COULOMB’s address as follows: Coulomb Technologies, Inc. 1692 Dell Avenue. Campbell, California 95008-6901...
- Page 26 Coulomb Technologies Inc. 1692 Dell Ave. Campbell, CA 95008-6901 USA US toll free: +1-877-370-3802 www.coulombtech.com www.mychargepoint.net...
