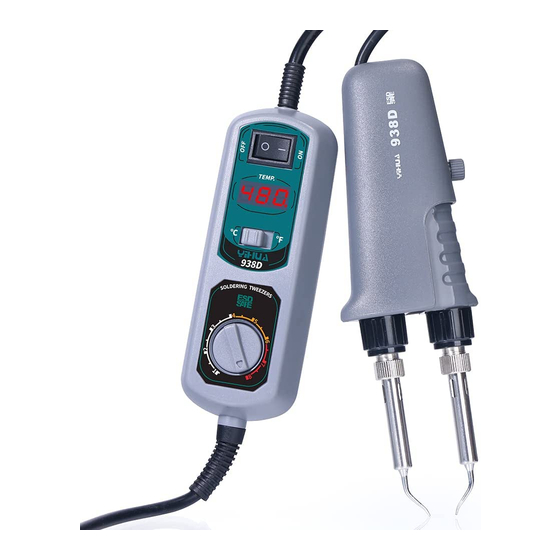

Portable soldering station (tweezer type) temperature-controlled and parallel tweezer type

Advertisement

04.07.03.237
PORTABLESOLDERINGSTATION(TWEEZERTYPE)
TEMPERATURE-CONTROLLED&PARALLELTWEEZERTYPE
O P E R AT I O N
INSTRUCTION
English
Thank you for purchasing this product. Please read the manual
carefully before operating and keep this manual for future reference.
MadeinChina
Statement: The company reserves the right to improve & upgrade products,
product specifications and design are subject to change without notice.
    This product should not be thrown in the garbage. In accordance with the European directive
2012/19/EU,electronicequipmentattheendoftheirlifemustbecollected&returnedtoanauthorized
recycling facility.       Este producto no debe desecharse en la basura. De acuerdo a la directiva
europea 2012/19/EU, los equipos electrónicos al final de su vida se deberàn recoger y trasladar a una
planta de reciclaje autorizada.         Dieses Produkt sollte nicht mit dem Hausmüll entsorgt werden.
In Übereinstimmung mit der europäischen Richtlinie 2012/19/EU müssen elektronische Geräte am
Ende ihrer Lebensdauer eingesammelt und einem autorisierten Recyclingbetrieb zugeführt werden.
938dPortable
Mainunitdimensions
Operatingambienttemperature
Temperaturerange
Display
Tiptogroundresistance
°F/°Cconversion
Sleepmode(10-MinuteNon-Adjustable)
Suitable for soldering and desoldering applications on a broad range of SMD and Through-Hole co-
mponents. This unit is especially great for manufacturing assembly lines, 2 solder joints can be wo-
rked on at the same time to provide high operation efficiency.
1. Cord (Soldering Iron)
2. Temperature Adjustment Dial
3. °F / °C Temperature Display Selector
4. Temperature Display
5. Power Switch
6. Power Cord

SPECIFICATION

L138*W51*H33mm±5mm
0〜40℃/32℉〜104℉
200〜480℃/392℉〜896℉
LEDNixieTube

I. APPLICATIONS

II. PARTS LIST

2
3
4
1
<2ohms
YES
YES
5
6
