SIM225 TECHNICAL REFERENCE MANUAL

PRELIMINARY ADVANCE INFORMATION

SIM225_TRM_A1ENUS

Revision A1

Arrow.com.

Downloaded from

Table of Contents

Need help?

Do you have a question about the SIM225 and is the answer not in the manual?

Questions and answers

Summary of Contents for Serious Integrated SIM225

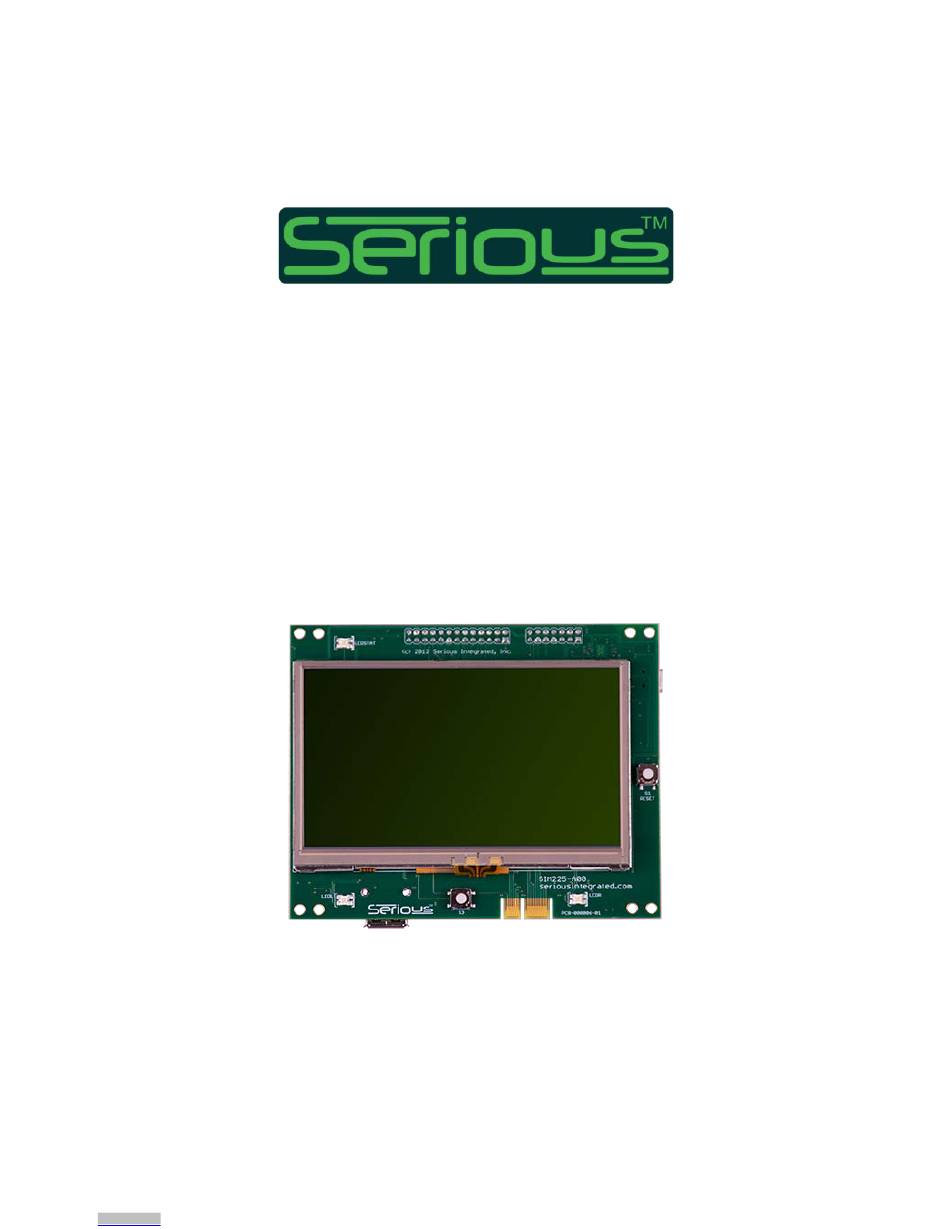

Page 1 SIM225 TECHNICAL REFERENCE MANUAL PRELIMINARY ADVANCE INFORMATION SIM225_TRM_A1ENUS © Serious Integrated, Inc. Revision A1 Arrow.com. Downloaded from...
Page 2: Important Legal Notice
SERIOUS from any and all damages, claims, suits or expenses resulting from such use. TRADEMARKS AND COPYRIGHTS The “Serious” name and stylized Serious mark are trademarks of Serious Integrated, Inc. The information herein, unless otherwise indicated, is Copyright 2012 Serious Integrated, Inc.
Page 3: Table Of Contents
SIM225 Technical Reference Manual CONTENTS IMPORTANT LEGAL NOTICE ............................... 2 TRADEMARKS AND COPYRIGHTS ............................2 Document Information and Applicable Products ........................6 Change History and Applicable Products ..........................6 Document Conventions ................................6 Introduction ......................................7 Hardware......................................7 Software ......................................8 Usage Models ....................................
Page 4 Power Supplies ....................................27 +5V_MAIN on LiPo Variants ............................... 27 +5V_MAIN on Non-LiPo Variants ............................. 28 Main 3.3V Regulation ................................28 Turning SIM225 Off: The PWRDWN# Signal ........................ 29 LiPo Battery....................................29 USB Device (“Function”) Power............................32 LCD Panel Backlight Power ..............................32 USB Host Power ..................................
Page 5 SIM225 Technical Reference Manual Clocks, Oscillators, and Time Keeping..........................41 CPU and Peripheral Clocks ..............................42 MCU On-Chip Battery Backed Real-Time Clock/Calendar..................42 User Pushbutton Switch and LEDs ............................43 Connectors ...................................... 44 Baseboard Connector ................................44 PCB Edge Connector ................................45 Tag-Connect Programming Port............................
Page 6: Document Information And Applicable Products
DOCUMENT CONVENTIONS This symbol indicates an advanced tip for hardware or software designers to extract interesting or unique value from the Serious Integrated Module. WARNING: You can damage your board, damage attached systems, overheat or cause things to catch fire if you do not heed these warnings.
Page 7: Introduction
-20 to 70°C extended operating temperature  Within the SIM225 are numerous family members, or “variants”. Each variant has a slightly different set of features and price points for an OEM to select the appropriate feature/cost point for their specific application.
Page 8: Software
SIM225 Technical Reference Manual Consult the latest SIM225 Product Brief for a listing of current variants and options. As of the time of this document’s publish date, the variants/options are: This is a preliminary table prior to product release and is subject to change.
Page 9 The possibilities are endless: the SIM225 module contains not only a powerful MCU but also a suite of hardware features that are commonly needed in many designs. A high-end thermostat or alarm panel, for example, could be as simple as a SIM225 connected to another PCB with a few relays and a battery. © Serious Integrated, Inc.
Page 10: Getting Started
SIM225 Technical Reference Manual GETTING STARTE D The SIM225 comes pre-configured with a demo program loaded in the system FLASH. To startup the system, plug a USB cable from your PC or USB supply into the USB device Mini-B connector. The system will use a maximum of 500mA of current from the USB connection when in operation.
Page 11: Specifications
LiPo Status: N = not draining nor charging, or not present, C = Charging, D = Draining VARIANTS WITHOUT LIPO SUPPORT only The following DC characteristics apply to all variants without LiPo capabilities, including the SIM225- A01, A02, A03, and A04. Audio Permissible Range...
Page 12: Subsystem Dc Power Characteristics
Insufficient power for these features active; SIM will not function correctly SUBSYSTEM DC POWER CHARACTERISTICS The amount of power necessary for SIM225 to function is highly dependent on how you use the various features of the SIM225, especially the major power consumers. If your application does not enable these features, the typical and maximum power numbers can be appropriately subtracted from the maximums for the SIM respectively.
Page 13: Environmental Characteristics
Operating Temperature Storage Temperature Humidity 90% (@60C) PHYSICAL CHARACTERISTICS The outer dimensions of the SIM225 are approximately 116 x 94 x 15 mm. Mechanical drawings and SolidWorks/STEP models are available for most SIMs. Visit www.seriousintegrated.com/docs for more information. Depending on the family member, the depth may be smaller. The cross-sectional dimensions of the SIM225-A00 are as follows: ©...
Page 14 SIM225 Technical Reference Manual The positioning of the LCD glass and various connectors is well defined in the SolidWorks/STEP files, and are shown here for reference: © Serious Integrated, Inc. SIM225_TRM_A1ENUS Revision A1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Page 15 SIM225 Technical Reference Manual © Serious Integrated, Inc. SIM225_TRM_A1ENUS Revision A1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
Page 16: Hardware Overview
FLASH, 128KB RAM, and FPU. This powerful MCU is equipped with extensive analog and digital peripherals and, with software, can deliver an excellent user interface experience. On the SIM225, the MCU should be operated at 96MHz to ensure usable timing sources for peripherals such as USB.
Page 17: On-Module Peripherals
ON-MODULE PERIPHERALS The SIM225 contains numerous on-module peripherals – many common to a vast and diverse set of OEM applications, including a Real Time Clock/Calendar (RTCC) (battery-backed on some modules), temperature sensor, USB device, USB host, serial FLASH, a high speed UART, EEPROM, bi-color indicator LEDs, a user “select”...
Page 18: Power
SIM225 Technical Reference Manual Reduced MII (RMII) Ethernet connection (if the SIM225 is equipped with an RX63N MCU)  SPI, I2C, CAN, and high-speed UART ports  7-Pin Wire-to-Board Power and Communications Connector  Suitable for an inexpensive wire harness with latching plug connection ...
Page 19 SIM to a PC or powered USB hub. The complete module may require as much as 500mA from the USB power supply, so ensure that the USB hub or USB power supply can deliver enough power. The SIM225 can support concurrent connection from some of these supplies. See the Power Supplies for details.
Page 20: Module Feature Detail
SIM225 Technical Reference Manual MODULE FEATURE DETAIL RENESAS RX63N/RX631 MCU At the heart of the SIM225 is a 100MHz 32-bit Renesas RX63N/RX631 MCU equipped with extensive analog and digital peripherals. Features include: MCU Core & Memory 100MHz 32-bit core ...
Page 21: Mcu Boot Modes, Switch S4, And The Usb Boot Flash
Note that on the SIM225, the MCU should normally be operated at 96MHz to ensure the clocking system can generate the appropriate clocks for SRAM, USB, and other peripherals. The following table summarizes the size, speed, and configuration of each family member:...
Page 22 Boot Mode selected, the Renesas firmware reads P35 (NMI#) and finds it pulled high, causing the USB device port to tell a connected USB host (such as a PC) that the SIM225 is bus powered and requires up to 500mA of power from the USB port. The USB VID will be 0x045B (registered exclusively to Renesas) and USB PID of 0x0025.
Page 23: Graphic Lcd Display
SIM225 Technical Reference Manual GRAPHIC LCD DISPLAY The LCD display (or “glass”) on the SIM225 is a 4.3” diagonal active area 480x272 TFT with optional 4-wire resistive touch layer. Features include: Parameter Typical Value Type TFT TRANSMISSIVE Active Area 95.04×53.86 mm...
Page 24: Touch
LCD output very inexpensively with excellent visual results. The LCD panel has two timing modes: VSYNC/HSYNC mode and DEN mode. The SIM225 uses DEN mode which provides better Direct Drive performance and uses less pins and software overhead than VSYNC/HSYNC mode.
Page 25 Basic touch testing requires only the ADC pins. The ADC pins, connected through current-limiting resistors to the touch panel, can be configured dynamically by software to be low current outputs or ADC inputs. To do a basic “are we touched?” test on the SIM225, the pins can be configured as follows: Signal...
Page 26 Since the touch planes can have resistance as low as 200Ω, up to 16mA is required to drive them – beyond the capability of the RX digital outputs. Therefore the SIM225 has a set of four higher-current output drivers with the following signals directly wired through the drivers from the MCU...
Page 27: Power Supplies
SIM225 Technical Reference Manual POWER SUPPLIES There are up to three possible sources of system power for the SIM225, depending on the specific variant: Power Signal Description Connectors Where Present • Power and Communications Connector Baseboard Connector • External Main Power...
Page 28: 5V_Main On Non-Lipo Variants
500mA to power the board. On the schematics, this supply is denoted +5V_USBF. In the USB-only powered mode the SIM225’s total power is limited to 500mA: only the extra power not consumed by the SIM225 will be available for battery charging. This may result in long charge times.
Page 29: Turning Sim225 Off: The Pwrdwn# Signal
Lithium batteries, including carefully following the recommendations in the TI BQ24030 documentation. LIPO CONNECTION The SIM225 supports single cell 3.7V LiPo batteries with two or three wires (power, ground, and optional temperature sensor). These three signals are available on both the LiPo Battery/Switch Connector Baseboard Connector.
Page 30 USB port will not exceed 500mA, so whatever power is left over from powering the SIM225 will charge the battery. The amount of time taken to charge the battery is dependent on many factors, but the less power available to the charging circuit the longer it will take to charge the battery.
Page 31 BATTERY LEVEL MEASUREMENT Measuring the true current charge on a battery is quite challenging. As a balance between cost and accuracy, the SIM225 has a simple method to determine the current voltage on the LiPo battery. A simple high-side switch (Diodes Inc.
Page 32: Usb Device ("Function") Power
USB Mini-B power input: SIM or even connected equipment such as a PC or USB Hub. The 500mA limit on +5_USBF is lower than some variants, for example the SIM225-A00 with 0.7W audio amplifier/speaker, require for their complete functionality. Turning on some features without sufficient power may cause a system reset.
Page 33: Usb Host Power
SIM225 Technical Reference Manual USB HOST POWER In SIM225 variants with LiPo support (such as the SIM225-A00), there is no assurance that the main operating power source is +5VDC; often as the battery drains, the main supply voltage will drop below 4.0 volts.
Page 34: Memory
The SDRAM, when used with the MCU’s Direct Drive DMA and Timer peripherals, can deliver pixel data directly to the SIM225’s LCD screen. During the delivery of pixel data to the LCD, software in the MCU must be cautious not to access the SDRAM or visible timing artifacts can appear on the screen.
Page 35: Eeprom
-A04 8 Megabytes 512KB x 16 EEPROM The SIM225 features a 2Kbit (256 byte) On Semiconductor CAT34C02 EEPROM with software write protection features. The EEPROM is an I2C device on the RX MCU’s RIIC1 port and shares an I2C connection with the Temperature Sensor chip.
Page 36: Universial Serial Bus (Usb)
All others UNIVERSIAL SERIAL BUS (USB) All SIM225 variants have a single USB 2.0 Full Speed (12Mbit/s) device (or “function”) capability, though not all variants have the associated mini-B connector. The USB Device signals are also available on other connectors, including the PCB Edge Connector and the Baseboard Connector (when present).
Page 37: Device Ids
USB stacks pre-ported to the RX MCU. DEVICE PORT USB1 RX63N/RX631 MCU used on the SIM225 has a USB 2.0 Full Speed (12Mbit/s) device (or “function”) circuitry port. All SIM225 family members (aka “variants”) have the USB device port connected to this port (USB1).
Page 38: Embedded Host Port Usb0
USB Mini-B Device Connector. DEVICE POWER The SIM225 can be powered via the USB device port, for example, from a powered hub or USB power adapter. This signal is marked as +5_USBF on the schematics. Regardless of the+5_USBF source (USB Mini-B Device...
Page 39: Audio
Renesas also has example code for this feature. PIEZO SOUNDER Some SIM225 variants include a piezoelectric sounder suitable for notifications, alarms, etc. signal controls the buzzer drive power, with the signal low and high representing “normal”...
Page 40: Speaker/Amplifier
TEMPERATURE SENSING MCU ON-CHIP TEMPERATURE SENSOR The SIM225’s MCU contains an on-chip temperature sensor, readable by the on-chip 12 bit ADC with a typical accuracy of +/- 1%. This sensor may be suitable for keeping track of general system temperature, but is not an accurate ambient air temperature sensor.
Page 41: Clocks, Oscillators, And Time Keeping
A real time clock/calendar which keeps track of the correct time/date as set by the end user or some other means. There are many producers and consumers of stable clock signals (or “clocks”) on the SIM225. All clocks – including, for instance, the 96MHz CPU core clock, the 12MHz USB clock, and a 9,600baud serial port clock –...
Page 42: Cpu And Peripheral Clocks
USB ports, 9600 baud for a UART serial port, 48MHz for the SRAM bus, etc. While the RX63x MCU family used on the SIM225 can operate up to 100MHz, on the SIM225 it should typically be programmed to operate at 96MHz so that all the other peripherals can divide down properly from that top frequency. The complexity and capabilities of the RX family clock system are beyond the scope of this guide: consult the Renesas documentation for a complete description.
Page 43: User Pushbutton Switch And Leds
Some SIM225 variants have two bi-color red-green LEDs placed on front of the display-side of the module. A bi-color LED is actually two independent LEDs in one package: the LED on the SIM225 has red and green LEDs that, when both are on, have an amber hue. Typically, a plastic or metal front panel enclosure will expose this LED through a plastic light pipe;...
Page 44: Connectors
SIM225 (and most common across various sizes and families of SIMs), the SIM225 Baseboard Connector is one of the most flexible off-module connectors available and exposes many more signals. Often a simple 2-layer PCB daughter-card will be attached to the SIM225 using this connector to adapt the SIM225 to a particular system environment.
Page 45: Pcb Edge Connector
P03/DA0 Ground Ground There is no legacy full-level RS232 port on the SIM225 however a simple and inexpensive adaptor (such as CircuitMonkey.com USB-Serial TTL Adapter) can be easily attached to the one of the Baseboard Connector’s UARTs to enable full serial-over-USB communications to a PC. Alternatively, a common...
Page 46 SPA100 may be required to reprogram SIM225 variants that do not have the JTAG Connector and/or USB Mini-B Device Connector. Some SIM225 variants have the extended version of the PCB Edge Connector exposing additional signals: RX631/63N RX621/62N Signal Description...
Page 47: Tag-Connect Programming Port
It adds no cost to the target hardware and is implemented on the PCB through a simple set of landing pads and guide holes. The SIM225 has a 10 pin pad-set designed to accommodate the TC2050-IDC-NLFP cable or similar.
Page 48: Power And Communications Connector
SIM225 Technical Reference Manual In some variants, the SIM225 will not have the Mini-B connector populated. In some customer designed systems incorporating a SIM, system access to the Mini-B connector may be obstructed. J2 allows rapid connection to the SIM for maintenance/servicing.
Page 49: Lipo Battery/Switch Connector
TLC Electronics can assist in small to large volume harness development and production. There is no legacy full-level RS232 port on the SIM225. However, a simple and very inexpensive adaptor (such as the CircuitMonkey.com USB-Serial TTL Adapter) can be easily attached to primary 3.3V UART...
Page 50: Usb A Host Connector
24-position, 0.5mm, gold plated, bottom signal latching connector. There are few off-the-shelf FFC cables, so if the FFC Expansion Connector is used to connect a SIM225 to another system, the system designer will likely require a custom flex cable harness.
Page 51: Jtag Connector
E1/E20 Emulator Additional Notes for RX600 Family Application Note. ADDITIONAL INFORM ATION The home page for SIM225 technical documentation is: www.seriousintegrated.com/docs/SIM225 Further documentation, including schematics, SolidWorks/STEP files, and more can be found there. Schematics and other technical documentation for the SPA-100 Programming Adapter can be found at www.seriousintegrated.com/docs/SPA100.
