INFORMATION FOR FIRST AND SECOND RESPONDERS
EMERGENCY RESPONSE GUIDE
Lucid Air
Four Door Sedan
2021+
Electric Vehicle
Version: 003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lucid Air

Summary of Contents for Lucid Air

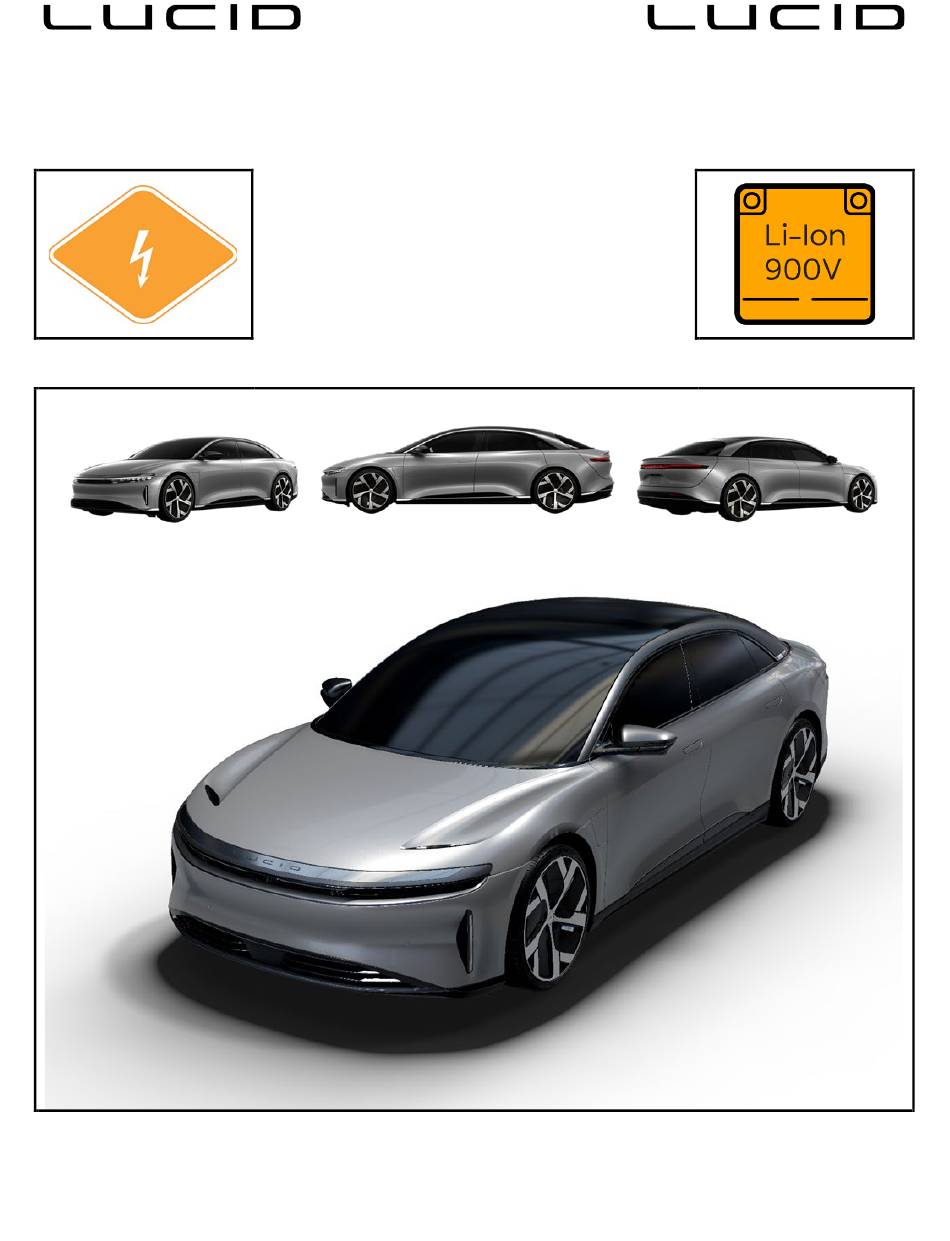

  • Page 1 INFORMATION FOR FIRST AND SECOND RESPONDERS EMERGENCY RESPONSE GUIDE Lucid Air Four Door Sedan 2021+ Electric Vehicle Version: 003...

  • Page 2: Table Of Contents

    Contents 0. Rescue sheet Page 2 1. Identification / recognition Page 3 2. Immobilization / stabilization / lifting Page 5 3. Disable direct hazards / safety regulations Page 7 4. Access to the occupants Page 13 5. Stored energy / liquids / gases / solids Page 22 In case of fire Page 27...
  • Page 3 LUCID AIR SEDAN 2021 - Present Pedestrian Stored gas Seatbelt SRS control Airbag protection inflator pretensioner unit active system Automatic Zone rollover Gas strut / pre- High strength requiring High voltage protection loaded spring zone special component system attention Battery low...

  • Page 4: Identification / Recognition

    Vehicle Identification Number (VIN) Lucid Air can be identified by its VIN. The stamped plate may be located by looking through the driver’s side of the windshield or on the left-hand A-pillar with the door open. Lucid Air is identified with an “A” in the 4 alphanumeric position.
  • Page 5 Touchscreen Lucid Air can also be identified by a retractable touch screen located where the dash meets the center console. If the display is in the stowed position, a storage cubby will be visible in its place. Lucid Air also has a wide screen instrument cluster display which is divided into three sections.

  • Page 6: Immobilization / Stabilization / Lifting

    2. Immobilization / stabilization / lifting Immobilization Chock Wheels Lucid Air moves silently, so never assume it is powered off. Lucid Air could potentially be free to roll if the parking brake is not engaged. Always chock the wheels. Putting the Vehicle in Park Lucid Air moves silently, so never assume it is powered off.
  • Page 7 WARNING Do not use the high-voltage battery pack to lift or stabilize the vehicle. The high-voltage battery is located under the floor of the car. When lifting or stabilizing the Lucid Air, use only the designated lift areas, shown below Approved lifting points Safe stabilization points for a Lucid Air on it’s side.

  • Page 8: Disable Direct Hazards / Safety Regulations

    3. Disable direct hazards / safety regulations Access The hood may be opened via: Touch Screen • • Key Fob • Mobile App Manual Emergency Release cables • Instructions for the use of these methods may be found in Section 4. 1.
  • Page 9 Unplugging/Cutting the first responder loop removes low-voltage power going to the high-voltage contactors inside of the high- voltage battery pack. Disconnecting the first responder loop does not disable the low-voltage battery system. Lucid Air is equipped with two low-voltage batteries for redundancy. One is located directly under the rear seat cushion and the other is inside the trunk under the right side access panel.
  • Page 10 Even if the first responder loop has been cut, always treat the high-voltage pack and the high-voltage components as if they are live. The pack will still have stored energy within the cells, and it is not known if other high-voltage components have been damaged. Treat every battery pack and orange cable as if there is high voltage in them.
  • Page 11 Battery Low-Voltage The underseat mounted low-voltage battery may be accessed by opening the rear passenger compartment door, (see Chapter 4: Access to the Occupants), and pulling up the rear seat bench cushion along the front edge until the retainer clips (Qty.2) release. The trunk-mounted low-voltage battery may be accessed by opening the trunk, (see Chapter 4: Access to the Occupants), and removing the right-hand side floor access panel.
  • Page 12 Airbags are located in the approximate areas shown. Airbag warning information is printed on the sun visors. Lucid Air is designed to deactivate high voltage in all components and cables outside of the high-voltage battery when an airbag is deployed. Care must be taken as to not cut any orange high-voltage cables or try to gain access into the battery pack. Even though the high-voltage system has shut down due to the airbags being deployed, it must always be assumed that there may be high voltage present in the high-voltage cables and components.
  • Page 13 WARNING Never cut or crush inflation cylinders. Cutting or compressing cylinders can cause catastrophic failure and lead to serious injury or death. WARNING The SRS control unit has a backup power reserve with a discharge time of approximately ten seconds. Do not touch the SRS control unit within ten seconds of an airbag or pre-tensioner deployment.

  • Page 14: Access To The Occupants

    4. Access to the occupants Keys Lucid Air supports three types of devices to be used as keys: • Key Fob NFC Card • • Mobile App Note: The vehicle’s low-voltage system must be functional for the keys to function.
  • Page 15 Opening Doors from Inside with Low-Voltage Power To open the Lucid Air door from the inside with low-voltage power enabled, pull the switch on an interior handle to open a door. If a door is locked, unlock it by pulling the handle once, then slide it forward and pull a second time to open the door.
  • Page 16 Then touch the trunk open icon. The fob button is located in center of the Lucid logo. Press the fob button twice to unlock Key Fob the vehicle. Then, open the trunk using the external button as indicated below.
  • Page 17 Moving the Front Seats with Low-Voltage Power Lucid Air has electrically powered front seats that move with buttons located on the outboard side of the seat base or via the center display under the seats tab. NOTE: If low-voltage power has been disabled, seat movements will not be possible.
  • Page 18 Opening the Hood with Low-Voltage Power Use one of the following methods to open the hood. The vehicle must be in park. At the large touch screen at the top of the center console, press the vehicle Touch screen icon in the lower left corner, then touch the “hood open”...
  • Page 19 Opening the Hood Without Power In the event where low-voltage power has been disabled, the hood may be opened via manual release cables. 1. Partially remove the front wheel well liners by releasing pop clips on both sides of the vehicle, (these are indicated by the red arrows), and pull back the wheel well liner, (not pictured).
  • Page 20 No-Cut Zones Lucid Air has areas that are defined as “no-cut zones” due to the presence of high voltage, gas struts, SRS components, or other hazards. Never cut or crush in these areas. Doing so could result in serious injury or death. The “no-cut zones” are shown in pink.

  • Page 21: Stored Energy / Liquids /Gases / Solids

    Windows • Lucid Air utilizes laminated saftey glass for all exterior windows. • In an emergency, Safety laminate glass may require the use of high-pressure punch and glass cutters. 5. Stored energy / liquids /gases / solids 12 Volts Sealed...
  • Page 22 High Voltage Battery Pack Lucid Air is equipped with an under-floor mounted 900V lithium-ion battery. The battery is made up of many cells that are liquid- cooled with a glycol-based coolant. The coolant will appear orange in color and may leak from the battery pack if the pack is compromised during a vehicle collision.
  • Page 23 Pushing on the Floor Pan The high-voltage battery is located below the floor pan between the front and rear wheels. Never push or pry on the floor pan of the vehicle. This could lead to a breach of the high-voltage battery or damage the high-voltage cables, which can result in a fire, serious injury, or death.
  • Page 24 Battery Low-Voltage Lucid Air is equipped with two low-voltage batteries for redundacy. The low-voltage batteries operate the restraint system, airbags, windows, door locks, touchscreens, and interior and exterior lights. The high-voltage system maintains the low-voltage batteries. One battery is mounted under the rear seat base cusion. The second battery is mounted under an access panel on the right side of the trunk.

  • Page 25: In Case Of Fire

    The below recommendations are from the Energy Security Agency (ESA), leaders in Electric Vehicle (EV) fire safety and destructive testing of lithium-ion batteries. The views and opinions Below are not those of LUCID MOTORS. Energy Security Agency (ESA) has determined the following after research and/or testing of the referenced vehicle.
  • Page 26 Is there the ability to let the vehicle burn in a safe controlled manner? 4. Water Supply ESA DOES NOT recommend the use of FOAM or other agents to extinguish a lithium-ion battery fire in the Lucid Air. If necessary, an ABC extinguisher can be used to mitigate the fire conditions only for a short period of time. ABC and/or foam may be used on non-battery components of the vehicle.
  • Page 27 Extreme caution should be taken prior to any ventilation attempts or opening of doors or windows on the vehicle, as the introduction of fresh air may bring the atmospheric conditions back into the explosive range and result in an explosion if fire or other ignition sources are present.
  • Page 28 After the initial knock down fire departments must flow water into the vent points or openings created by the fire within the battery pack. Use a ¼ open bail or comparable amounts of water to fill vent points. Remember in Lucid Air, manufactured vent point will not be accessible.
  • Page 29 The amount of time that it takes for a heat signature to appear on a Lucid battery pack may be extended due to a protective, composite plate between the battery cells and the exterior enclosure.

  • Page 30: In Case Of Submersion

    7. In case of submersion Treat a submerged Lucid Air like any other submerged vehicle. The body of a Lucid Air does not present a greater risk of shock while it is in water. However, wear appropriate PPE when handling any submerged vehicle. Remove the vehicle from the water and continue with normal high-voltage disabling.

  • Page 31: Towing / Transportation / Storage

    Vehicle Towing and Recovery Methods Lucid recommends these vehicle recovery methods: 1. High-Speed Dolly High-speed dolly systems support the vehicle’s rear wheels, while a tow vehicle supports the front wheels. This is Lucid’s preferred recovery option. Always follow recovery equipment’s manufacturer instructions for use.
  • Page 32 If you know or suspect that the high-voltage battery pack has been severely damaged, do not move the vehicle unless it is necessary for safety reasons to do so, and contact Lucid Customer Care. NOTE: All four wheels must remain off the ground when towing or transporting the vehicle.
  • Page 33 12V power is present, the Lucid Air can be pushed to clear the roadway. If a driver is present, shift the Lucid Air into Neutral (N), and push the vehicle. If a driver is not present, the Lucid Air may shift into Park (P) when it detects the driver leaving the vehicle, even if it has previously been shifted into N.
  • Page 34 Immobilize the Vehicle 1. Before starting any recovery operation, immobilize the vehicle by installing wheel chocks to prevent roll-away. 2. Apply the Electronic Parking Brake (EPB) by pressing the button on the end of the right- hand mode selector stalk. 3.
  • Page 35 Tow Eye Method WARNING Use the tow eye only for loading and unloading the vehicle to/from tow trucks or transports. Under no circumstances should the vehicle be towed by another vehicle along the road using the vehicle tow eye. Doing so can lead to sudden tow eye detachment, which may lead to vehicle damage, injury, or death. WARNING The tow eye should not be used in situations where the winch cable load will exceed 13.9kN/ 1426kg/ 3100lbs.
  • Page 36 Open the trunk and remove the tow eye from under the right-side trunk floor panel. If an external power source was used to access the trunk, remove the power source, and secure the wiring before moving the vehicle to avoid damage. Installing the Tow Eye WARNING Improper tow eye installation could result in the tow eye detaching suddenly during vehicle winching.
  • Page 37 2. Position the tow eye through the bumper and rotate it clockwise into the attachment point on the body until it is fully seated. The tow eye should be parallel to the ground as shown in the image to the right.
  • Page 38 Note: Use a 12-volt jumper pack or equivalent. Do not use “Boost” or “Starting” modes as these may exceed the electrical specifications of the vehicle jumper connection (12-14.4 Volts 50 Amps Max). Note: Lucid will not warranty nor be held liable for issues that may result from failure to follow these instructions. Continued on next page...
  • Page 39 3. Remove external power source and re-secure wires before moving vehicle. Failure to disconnect an external 12V system prior to continuing tow activities can lead to serious vehicle damage. For Additional Information: Towing providers with questions should call 888-99-LUCID (888-995-8243). Document Version...

  • Page 40: Important Additional Information

    The high-voltage battery pack is always energized. WARNING Never transport the Lucid Air with the wheels on the ground. Doing so can lead to significant damage and overheating. In rare cases, extreme overheating may cause the surrounding components to combust.

  • Page 41: Explanation Of Pictograms Used

    Warning, Low Temperature Trunk Opening Explosive Gases Under Pressure Flammable Environmental Hazard Corrosives Cable Cut Hazardous to Human Health Lateral Seat Movement Acute Toxicity Vertical Seat Movement Air Conditioning Steering Column Movement Component Document Version Date Page 50E-ANA21ERG 11/4/2022 40 of 41...
